2019 Suzuki DR200SL9 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2019 Suzuki DR200SL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

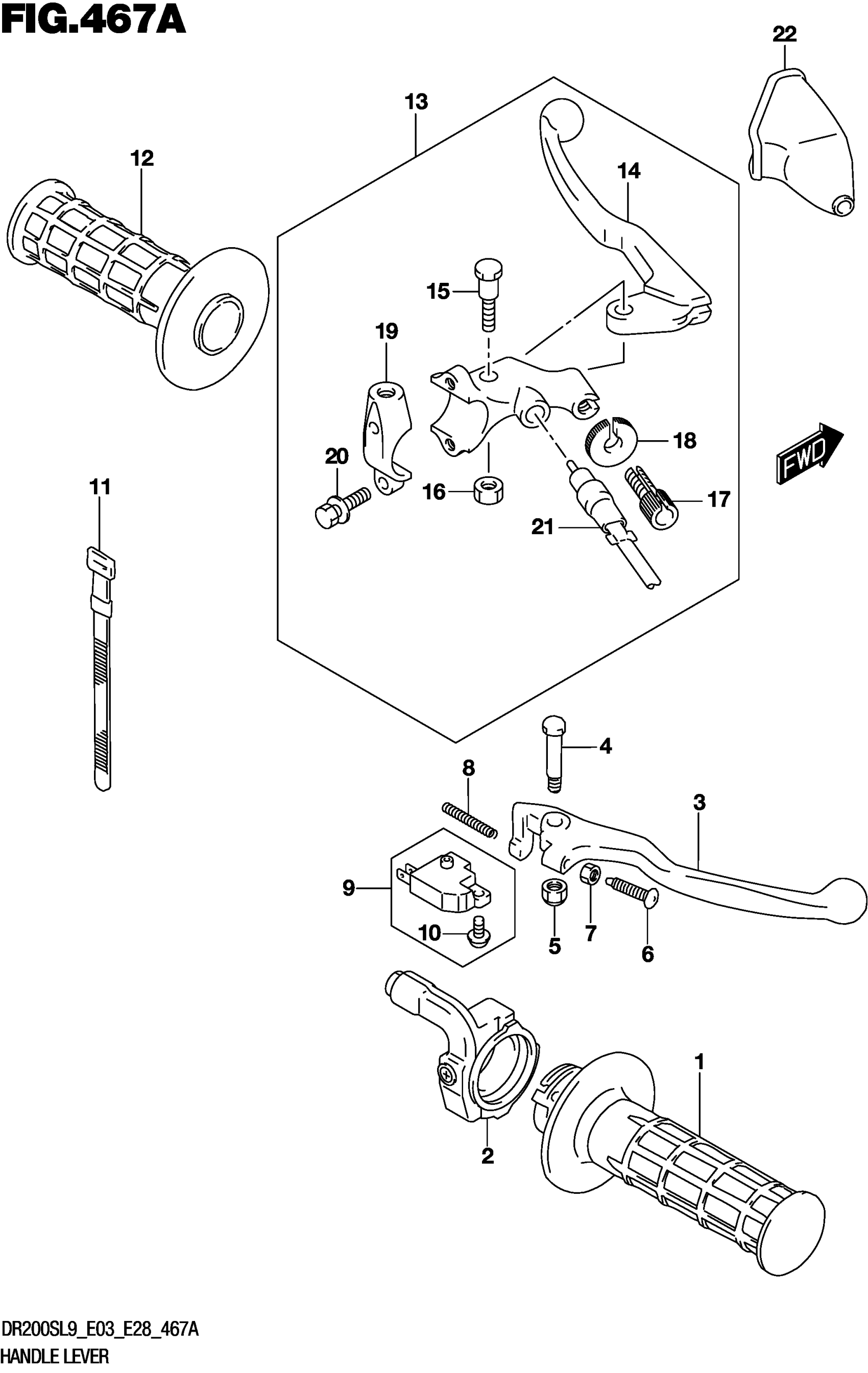

2019 Suzuki DR200SL9 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP

57110-14D00

1
Out of stock

2

CASE ASSY

57100-13610

1
Out of stock

3

LEVER BRAKE

57421-44E00

1
Out of stock

4

BOLT, BRAKE LEVER

57431-14500

1
Out of stock

5

.NUT

08319-2106A

1
Out of stock

6

BOLT, ADJUST

57431-14511

1
Out of stock

7

NUT

08310-0005A

1
Out of stock

8

SPRING, RETURN

57318-14502

1
Out of stock

9

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

10

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

11

CLAMP (L:120)

09407-12402

2
Out of stock

12

GRIP LH

57211-27C00

1
Out of stock

13

LEVER ASSY CLUTCH This part replaces 57500-29F31.

57500-29F32

1
Out of stock

14

.LEVER, CLUTCH

57621-13E00

1
Out of stock

15

..BOLT,LEVER PIVOT

57431-21D11

1
Out of stock

16

.NUT

08319-2106A

1
Out of stock

17

.ADJUSTER, WIRE This part replaces 57441-29F00.

57441-29F01

1
Out of stock

18

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

1
Out of stock

19

.BRACKET HOLDER

57512-13E00

1
Out of stock

20

.BOLT BRACKET

57513-13E00

2
Out of stock

21

.SWITCH ASSY CLUTCH

57560-29F31

1
Out of stock

22

COVER, CLUTCH CABLE DUST This part replaces 57341-29F01.

57341-29F02

1
Out of stock
