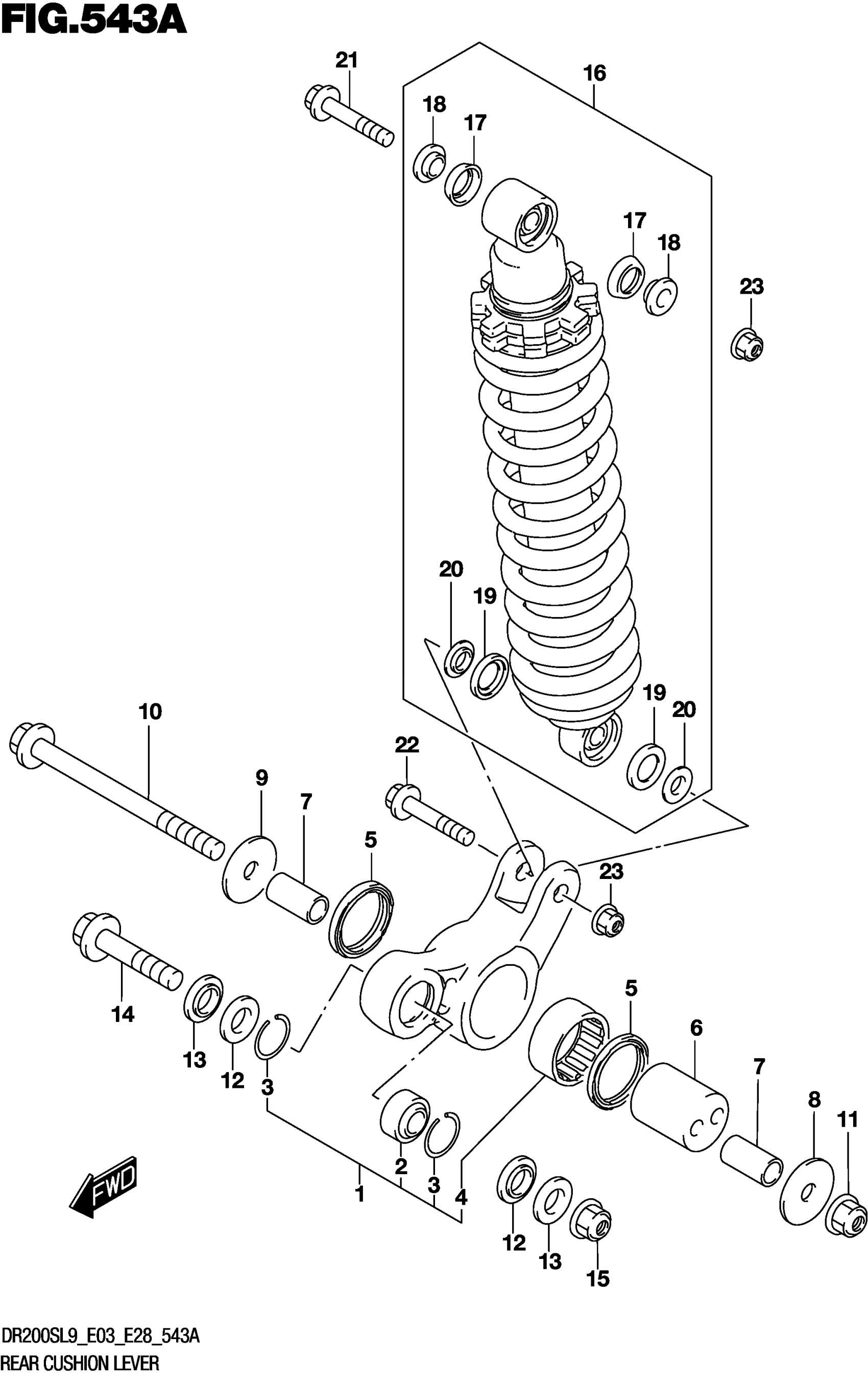

Suzuki DR200SL9 (2019) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET

62600-42812

Unavailable

2

.BEARING (12X26X16)

09269-12006

Unavailable

3

.RING

62277-27C20

$4.42

4

.BEARING (37X47X20)

09263-37003

$53.83

5

SEAL

62624-42A00

$11.37

6

SPACER

62623-42A11

Unavailable

6

SPACER

62623-42A11

Unavailable

7

SPACER

62646-42A11

Unavailable

8

WASHER

62628-42AA0

$9.17

9

WASHER

62625-42AA0

Unavailable

10

SHAFT

62621-42AA0

Unavailable

11

NUT

08319-2112A

$3.38

12

SEAL

62647-05A00

$3.72

13

SPACER

62316-05A01

$7.70

14

BOLT (12X62)

62668-42A02

$12.03

15

NUT

08319-3112A

$3.38

16

ABSORBER ASSY,R This part replaces 62100-44AF0-28W.

62100-44AF1-28W

$809.08

16

ABSORBER ASSY,R This part replaces 62100-44AF0-28W.

62100-44AF1-28W

$809.08

17

.SEAL

62226-20900

$14.73

18

.SPACER

62684-20900

$13.72

19

.SEAL

62226-02B00

$14.73

20

.COLLAR

62684-31300

$14.00

21

BOLT (10X58)

09103-10428

$5.52

22

BOLT (10X48)

09103-10126

$4.07

23

NUT (M10)

09159-10115

$3.21
