2018 Suzuki DR200SL8 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2018 Suzuki DR200SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

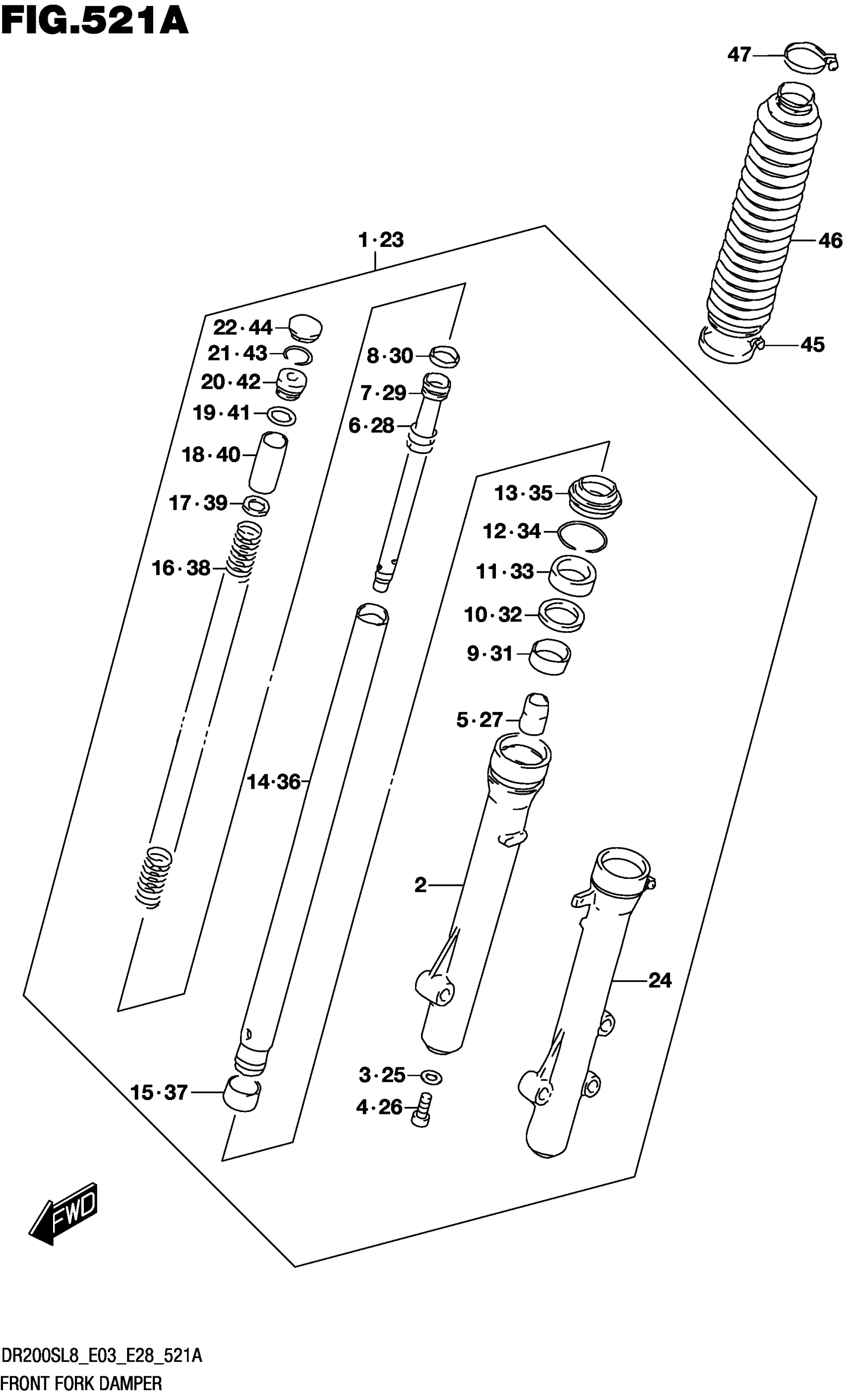

2018 Suzuki DR200SL8 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY

51103-42AA0

1
Out of stock

2

.TUBE

51131-01A01

1
Out of stock

3

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

4

.BOLT (8X18)

51147-06F10

1
Out of stock

5

.PIECE

51195-43530

1
Out of stock

6

.SPRING

51177-01A00

1
Out of stock

7

.CYLINDER

51146-42AA0

1
Out of stock

8

.RING

51196-45200

1
Out of stock

9

.BUSH

51152-33300

1
Out of stock

10

.SPACER

51168-30B00

1
Out of stock

11

.SEAL

51153-19D10

1
Out of stock

12

.RING

51156-01A00

1
Out of stock

13

.SEAL

51173-01A00

1
Out of stock

14

.TUBE

51110-01A30

1
Out of stock

15

.PISTON

51121-33300

1
Out of stock

16

.SPRING

51171-42AA0

1
Out of stock

17

.SEAT

51192-20510

1
Out of stock

18

.SPACER

51176-42AA0

1
Out of stock

19

.O RING

51181-31030

1
Out of stock

20

.BOLT

51175-47400

1
Out of stock

21

.RING

51169-47400

1
Out of stock

22

.CAP

51189-31230

1
Out of stock

23

DAMPER ASSY

51104-42AA0

1
Out of stock

24

.TUBE

51141-01A01

1
Out of stock

25

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

26

.BOLT (8X18)

51147-06F10

1
Out of stock

27

.PIECE

51195-43530

1
Out of stock

28

.SPRING

51177-01A00

1
Out of stock

29

.CYLINDER

51146-42AA0

1
Out of stock

30

.RING

51196-45200

1
Out of stock

31

.BUSH

51152-33300

1
Out of stock

32

.SPACER

51168-30B00

1
Out of stock

33

.SEAL

51153-19D10

1
Out of stock

34

.RING

51156-01A00

1
Out of stock

35

.SEAL

51173-01A00

1
Out of stock

36

.TUBE

51110-01A30

1
Out of stock

37

.PISTON

51121-33300

1
Out of stock

38

.SPRING

51171-42AA0

1
Out of stock

39

.SEAT

51192-20510

1
Out of stock

40

.SPACER

51176-42AA0

1
Out of stock

41

.O RING

51181-31030

1
Out of stock

42

.BOLT

51175-47400

1
Out of stock

43

.RING

51169-47400

1
Out of stock

44

.CAP

51189-31230

1
Out of stock

45

BAND

51576-42AA0

2
Out of stock

46

BOOT This part replaces 51571-01A00-019.

51571-01A01-019

2
Out of stock

47

BAND

51575-01A00

2
Out of stock
