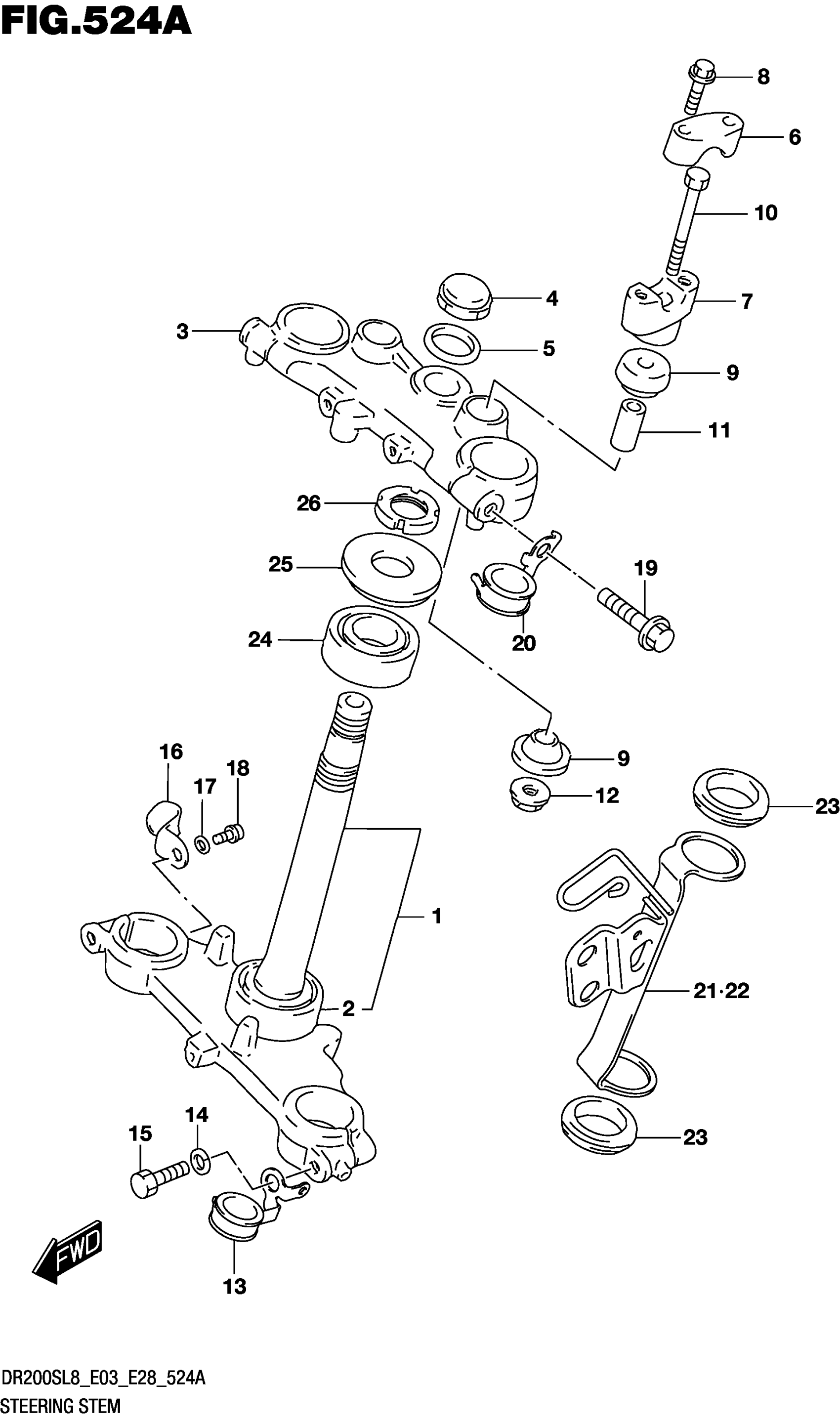

Suzuki DR200SL8 (2018) STEERING STEM Diagram

#

Description
Price

1

STEM

51410-42AA0

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$52.22

3

HEAD

51311-42AA0-291

Unavailable

4

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$34.62

5

WASHER

51354-14D00

$16.03

6

HOLDER,HANDLE UPPER (BLACK)

56211-27200-291

$20.22

7

HOLDER

56221-42A00

Unavailable

8

BOLT (8X35)

01550-0835B

$4.42

9

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$34.38

10

BOLT

56321-27E00

$10.83

11

SPACER

56243-42A00

$9.07

12

NUT

51353-42AA0

$4.90

13

CLAMP

59270-49J00

$26.40

14

WASHER

08321-21115

Unavailable

15

BOLT

51451-42A00

Unavailable

16

CLIP

51452-05130

Unavailable

17

WASHER

08321-01067

$1.83

18

SCREW

02112-06087

$1.45

19

BOLT

01550-1045B

$5.17

20

CLAMP

59260-49J00

Unavailable

21

BRACKET

51530-49J00

Unavailable

22

BRACKET

51540-49J00

Unavailable

23

CUSHION

51553-34280

$6.22

24

BEARING (25X47X15)

09265-25019

$61.43

25

SEAL,STEERING UPR DUST

51643-01B10

$12.50

26

NUT,STEERING

51631-08D30

$17.53
