2018 Suzuki DR200SL8 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2018 Suzuki DR200SL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

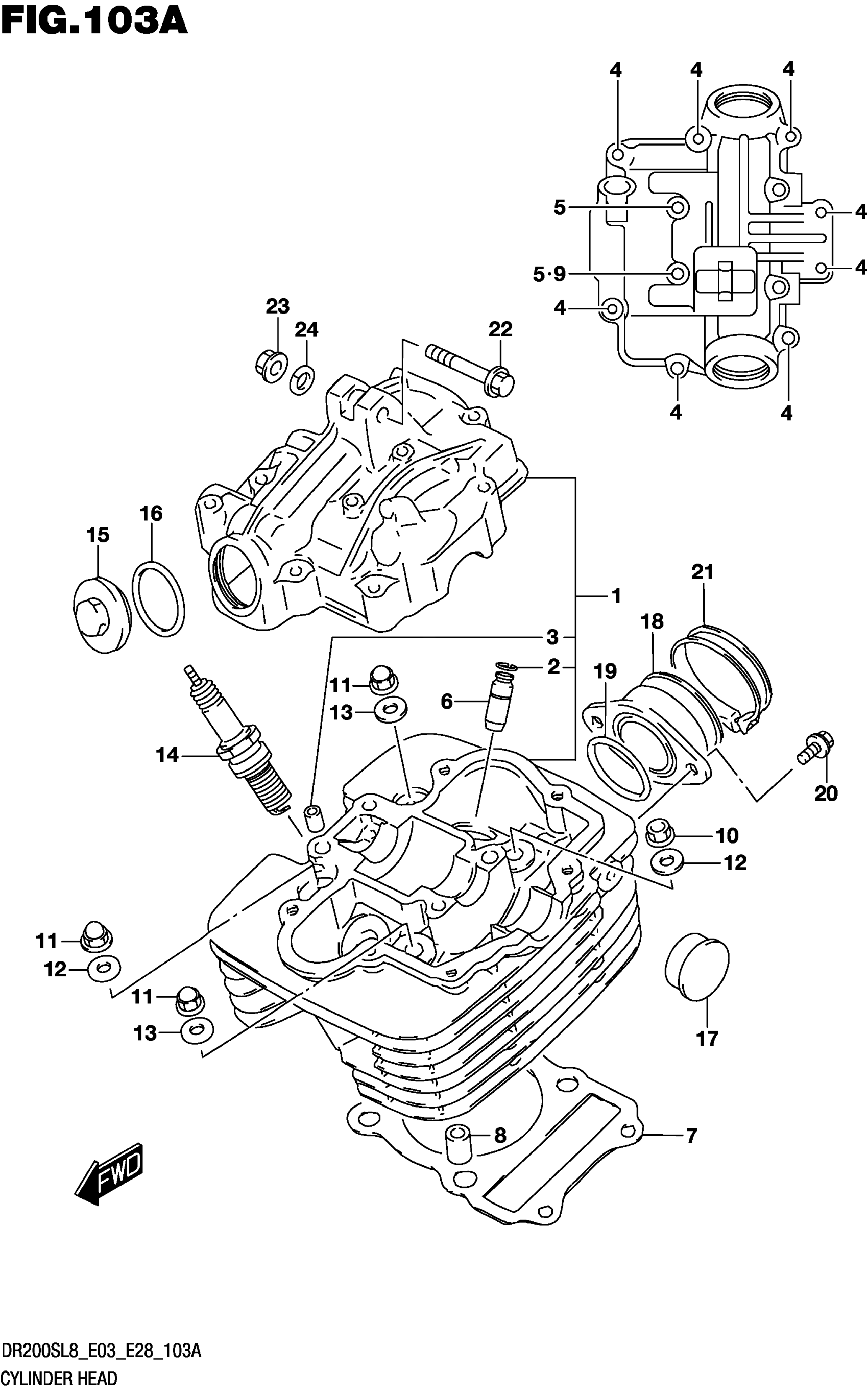

2018 Suzuki DR200SL8 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY

11100-42A80

1
Out of stock

2

.RING (10X85)

09381-10004

2
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

BOLT

01550-0635A

8
Out of stock

5

.BOLT

01550-0660A

2
Out of stock

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

2
Out of stock

7

.GASKET

11141-18A00

1
Out of stock

8

PIN

04211-11169

2
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

NUT

08316-1008A

1
Out of stock

11

NUT

09159-08049

3
Out of stock

12

WASHER (8.5X19X2.3)

09160-08039

2
Out of stock

13

.GASKET (8.5X17X2.3)

09168-08021

2
Out of stock

14

SPARK PLUG (X24ESR-U)

09482-00223

1
Out of stock

14

SPARK PLUG (DR8EA)

09482-00399

1
Out of stock

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

2
Out of stock

16

.O RING (D:3,ID:29.5)

09280-30001

2
Out of stock

17

PLUG (OD:22.5)

09241-22002

1
Out of stock

18

1

$27.66

In stock

19

.O RING (D:1.9

09280-35001

1
Out of stock

20

SCREW

02112-3616A

2
Out of stock

21

.CLAMP

09402-48208

1
Out of stock

22

BOLT (8X55)

09103-08519

—
Out of stock

23

NUT

08319-3108A

1
Out of stock

24

WASHER

08321-0108A

1

$1.99

In stock
