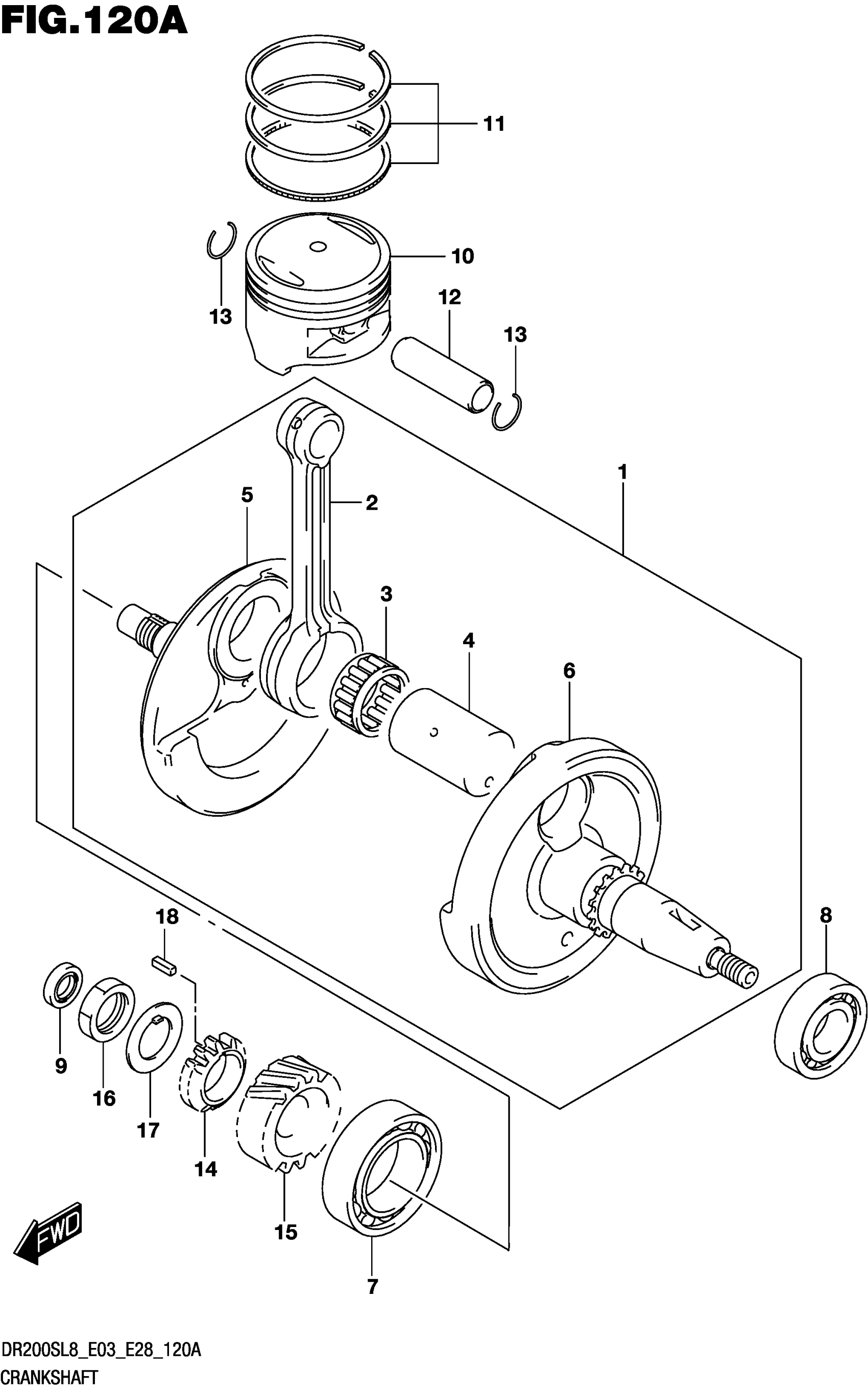

Suzuki DR200SL8 (2018) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-42A21

$677.85

2

.ROD

12161-42A01

$70.08

3

.BEARING (31X38X18)

09263-31008-0B0

$53.83

4

.PIN

12210-42A01

$29.23

5

.CRANKSHAFT RH

12221-42A02

Unavailable

6

.CRANKSHAFT LH

12261-42A20

Unavailable

7

BEARING (28X68X18) | RH

09262-28014

$74.08

8

BEARING (35X72X17) | LH

09262-35038

$42.19

9

OIL SEAL (12X21X7)

09282-12009

$16.75

10

PISTON

12111-42A20-0F0

$104.62

11

RING SET

12140-42A01

$91.23

12

PIN

12151-22A02

$11.12

13

CIRCLIP (OD:18)

09381-16001

$1.45

14

GEAR

16321-42A00

Unavailable

15

GEAR

21111-42A01

Unavailable

16

NUT

09140-18004

$2.95

17

WASHER

09166-18003

$2.58

18

KEY

09421-04007

$8.00
