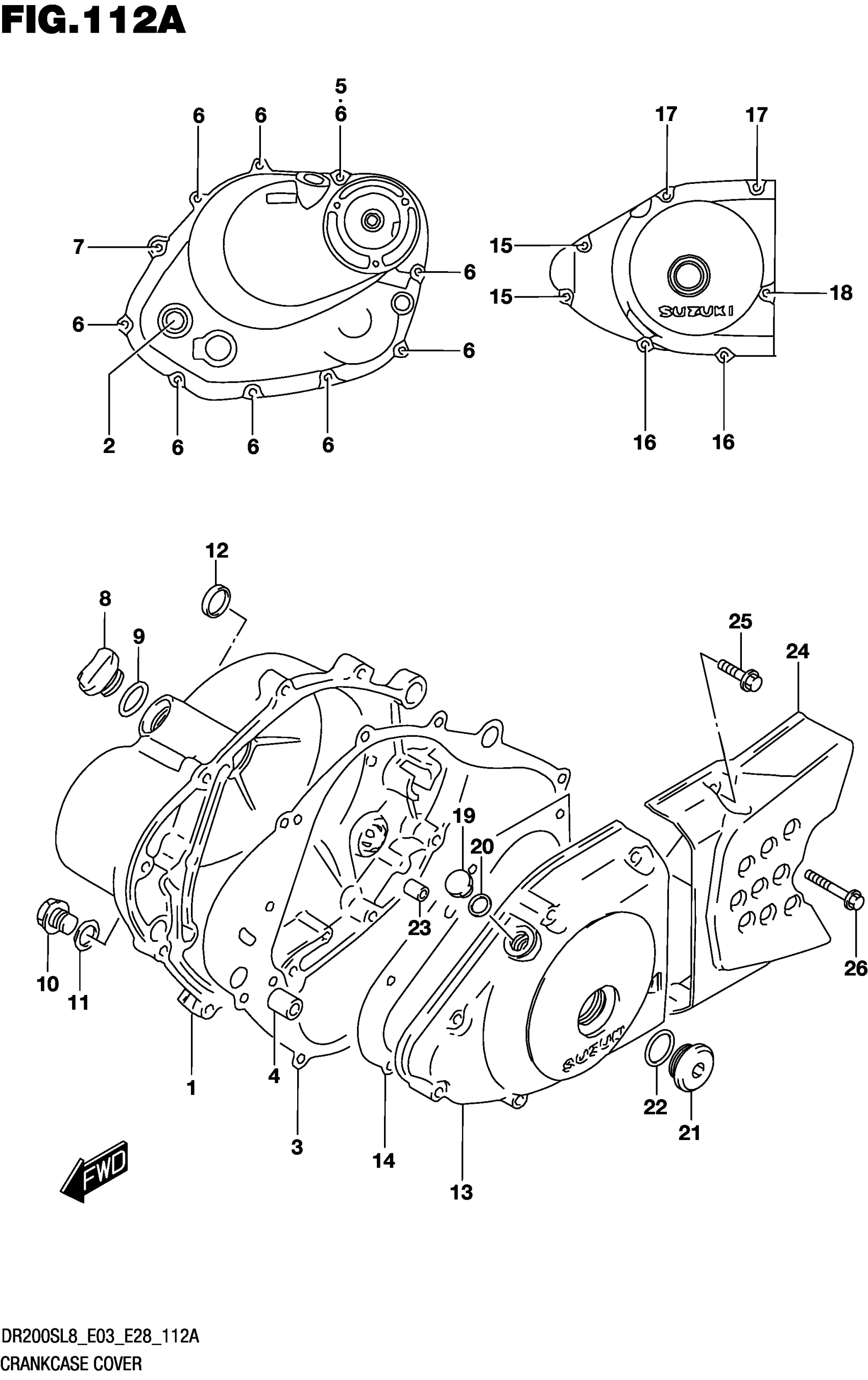

Suzuki DR200SL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-42A30

$275.28

2

.LENS, OIL LEVEL CHECK

11971-45010

$15.78

3

.GASKET, CLUTCH COVER

11482-05211

$11.74

4

PIN (10.4X13X18)

04211-13189

$2.19

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

BOLT

01547-0630A

$2.31

7

BOLT

01547-0645A

$2.43

8

PLUG (20X10)

09259-20019

$10.55

9

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

10

PLUG (14X12)

09247-14026

$3.38

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

12

PLUG

11342-12C51

$12.02

13

COVER

11351-42A30

$187.45

14

.GASKET

11483-05312

$9.78

15

BOLT

01547-0630A

$2.31

16

BOLT

01547-0635A

$2.31

17

BOLT

01547-0640A

$2.31

18

BOLT

01547-0650A

$2.51

19

PLUG (12X9)

09247-12104

$2.73

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

21

PLUG (26X9)

09259-26011

$9.96

22

O-RING (D:3.1,ID:22.7)

09280-22008

$2.10

23

PIN

04211-09129

$1.64

24

COVER

11360-42A20

$103.77

25

BOLT

01547-0625A

$2.01

26

BOLT

01547-0635A

$2.31
