2016 Suzuki DR200SL6 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2016 Suzuki DR200SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

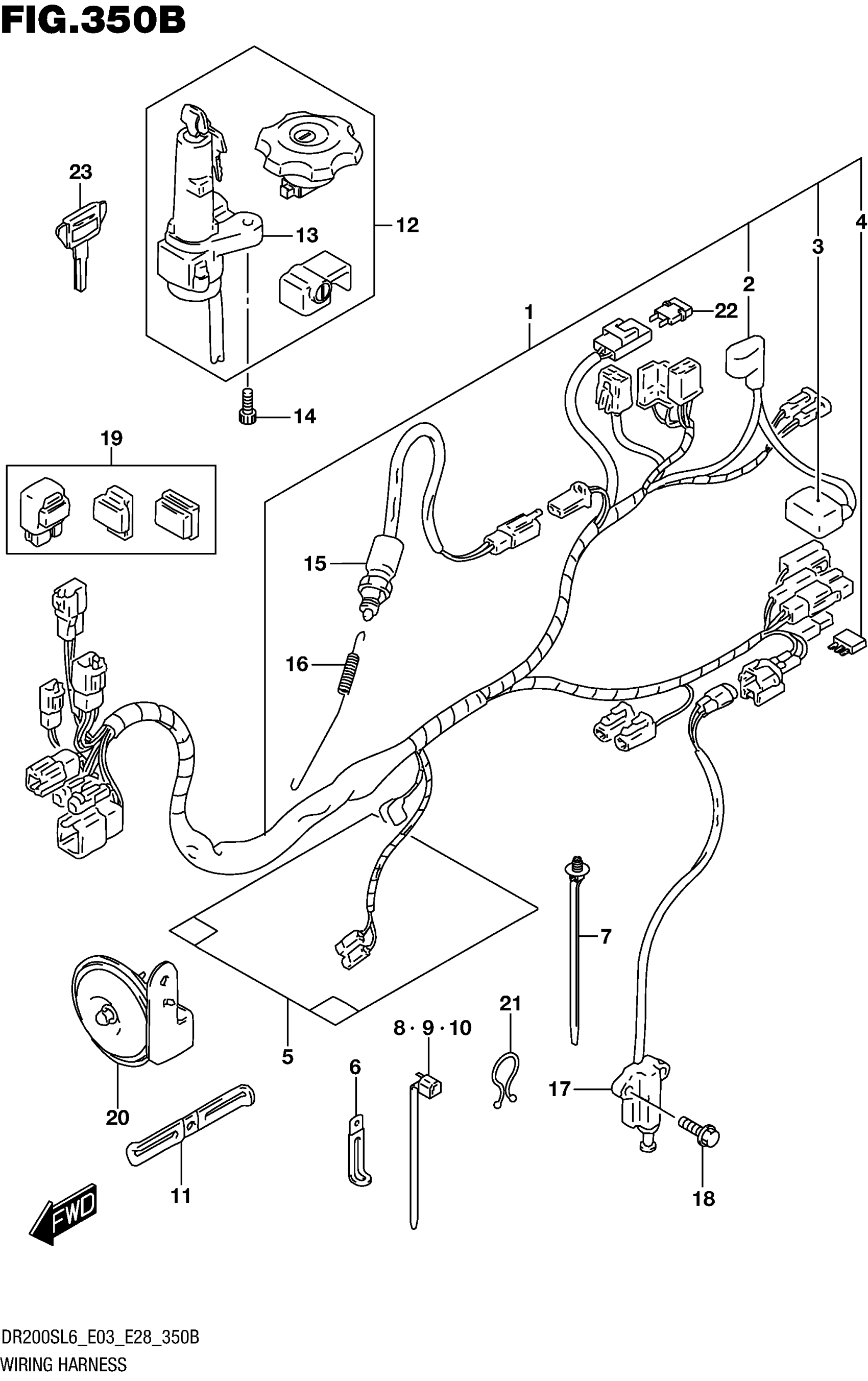

2016 Suzuki DR200SL6 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-49J00

1
Out of stock

2

.CAP, STARTER RELAY

31861-10D00

1
Out of stock

3

.CAP, BATTERY PLUS

33624-10D00

1
Out of stock

4

.DIODE

36611-38A10

1
Out of stock

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

7

CLAMP (L:154)

09407-17403

1
Out of stock

8

CLAMP (L:125)

09407-14403

5
Out of stock

9

CLAMP (L:165)

09407-18402

5
Out of stock

10

CLAMP (L:190)

09407-19401

1
Out of stock

11

CLAMP, STARTER MOTOR LEAD

36651-05301

1
Out of stock

12

LOCK SET This part replaces 37100-42840.

37100-42841

1
Out of stock

13

.SWITCH ASSY, IGNITION

37100-42A01

1
Out of stock

14

BOLT

07130-0616B

2
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-45D00

1
Out of stock

16

SPRING

09443-06064

1
Out of stock

17

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

1
Out of stock

18

BOLT

01550-0620A

2
Out of stock

19

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

20

HORN ASSY

38500-44B00

1
Out of stock

21

CLIP (ID:11.5)

09408-00012

2
Out of stock

22

FUSE (20A)

09481-20101

2

$2.31

In stock

23-1

KEY, BLANK | OPT

37146-03A00

1
Out of stock

23-2

KEY, BLANK | OPT

37146-03A10

1
Out of stock

23-3

KEY, BLANK | OPT

37146-03A20

1
Out of stock

23-4

KEY, BLANK | OPT

37146-03A30

1
Out of stock
