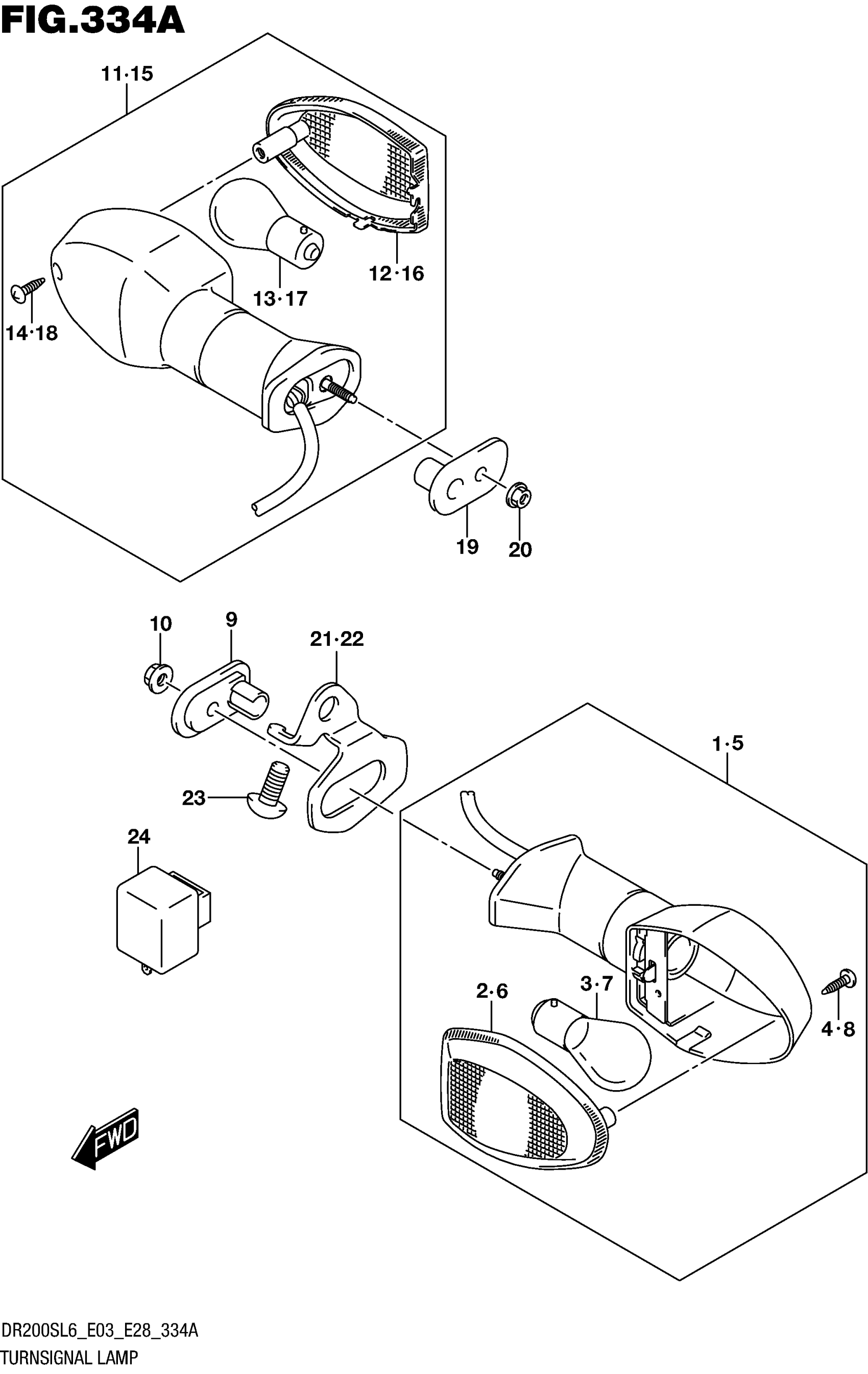

Find the part on the Turnsignal Lamp diagram for your 2016 Suzuki DR200SL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR200SL6 Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FR TURN RH

35601-08J11

1
Out of stock

2

.LENS

35612-08J01

1
Out of stock

3

.BULB (12V, 21W)

09471-12045

1
Out of stock

4

.SCREW

03211-0414B

1
Out of stock

5

LAMP ASSY, FR TURN LH

35602-08J11

1
Out of stock

6

.LENS

35632-08J01

1
Out of stock

7

.BULB (12V, 21W)

09471-12045

1
Out of stock

8

.SCREW

03211-0414B

1
Out of stock

9

PLATE,TURNSIGNAL LAMP

35629-31F40

2
Out of stock

10

NUT

08316-1005A

2
Out of stock

11

LAMP ASSY, RR TURN RH

35603-08J01

1
Out of stock

12

.LENS

35632-08J01

1
Out of stock

13

.BULB (12V, 21W)

09471-12045

1
Out of stock

14

.SCREW

03211-0414B

1
Out of stock

15

LAMP ASSY, RR TURN LH

35604-08J01

1
Out of stock

16

.LENS

35612-08J01

1
Out of stock

17

.BULB (12V, 21W)

09471-12045

1
Out of stock

18

.SCREW

03211-0414B

1
Out of stock

19

PLATE,TURNSIGNAL LAMP

35629-31F40

2
Out of stock

20

NUT

08316-1005A

2
Out of stock

21

BRACKET, FRONT TURN SIGNAL RH

47411-49J00

1
Out of stock

22

BRACKET, FRONT TURN SIGNAL LH

47421-49J00

1
Out of stock

23

SCREW

02142-0508A

2
Out of stock

24

RELAY ASSY, TURN SIGNAL LAMP

38610-31X50

1
Out of stock
