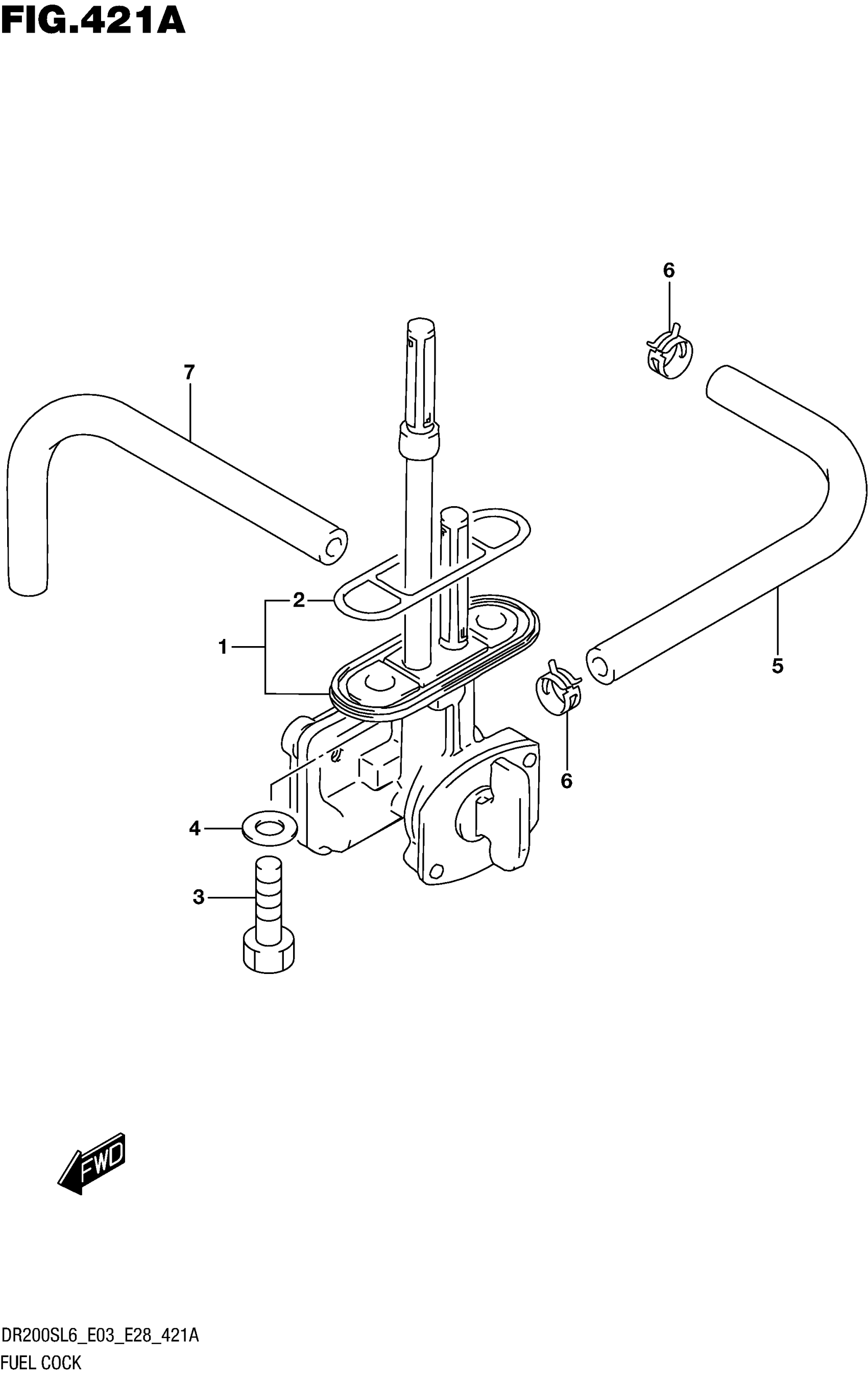

Suzuki DR200SL6 (2016) FUEL COCK (DR200SL6 E03) Diagram

#

Description

Price

1

COCK ASSY,FUEL This part replaces 44300-44AB0.

44300-44AB1

$97.79

2

.GASKET JOINT This part replaces 44348-87420.

44348-87421

$5.12

3

BOLT This part replaces 09128-06006.

09128-06057

$1.70

4

GASKET (6.4X11.5X0.8)

09168-06026

$2.88

5

HOSE (5X10X160)

09355-50109-160

$12.40

6

CLIP (ID:9.4,H:8)

09401-09403

$2.09

7

HOSE, VACUUM

44425-49J00

$12.70
