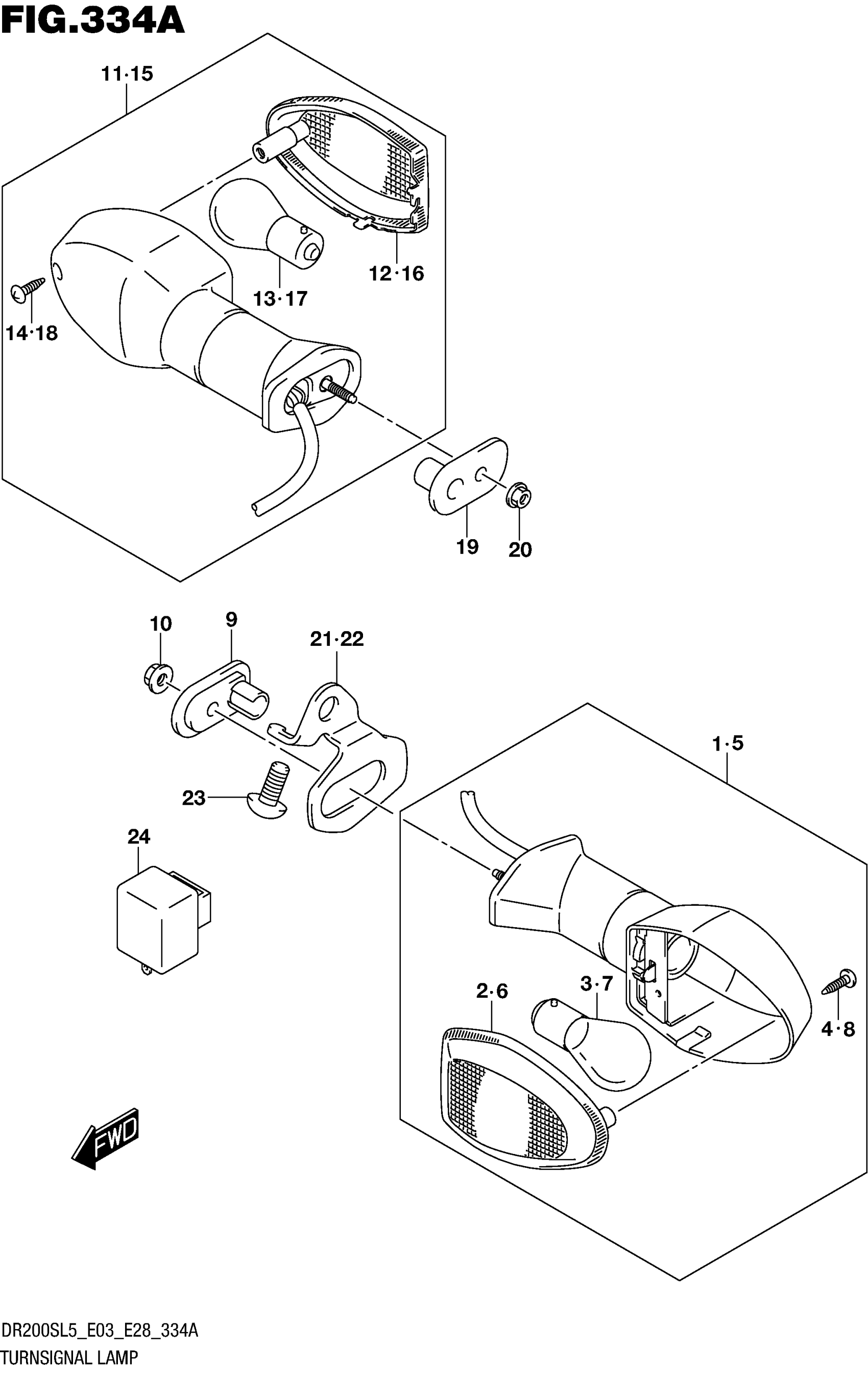

Suzuki DR200SL5 (2015) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN, RH

35601-08J11

$114.18

2

LENS

35612-08J01

$13.82

3

BULB (12V,21W)

09471-12045

$2.95

4

SCREW

03211-0414B

$1.93

5

LAMP ASSY, FR TURN, LH

35602-08J11

$118.53

6

LENS

35632-08J01

$13.65

7

BULB (12V,21W)

09471-12045

$2.95

8

SCREW

03211-0414B

$1.93

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, RR TURN, RH

35603-08J01

$120.15

12

LENS

35632-08J01

$13.65

13

BULB (12V,21W)

09471-12045

$2.95

14

SCREW

03211-0414B

$1.93

15

LAMP ASSY, RR TURN, LH

35604-08J01

$120.15

16

LENS

35612-08J01

$13.82

17

BULB (12V,21W)

09471-12045

$2.95

18

SCREW

03211-0414B

$1.93

19

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

20

NUT

08316-1005A

$2.19

21

BRACKET, FRONT TURN SIGNAL, R

47411-49J00

$6.06

22

BRACKET, FRONT TURN SIGNAL, L

47421-49J00

$11.02

23

SCREW

02142-0508A

$1.38

24

RELAY ASSY, TURN SIGNAL LAMP

38610-31X50

$90.45
