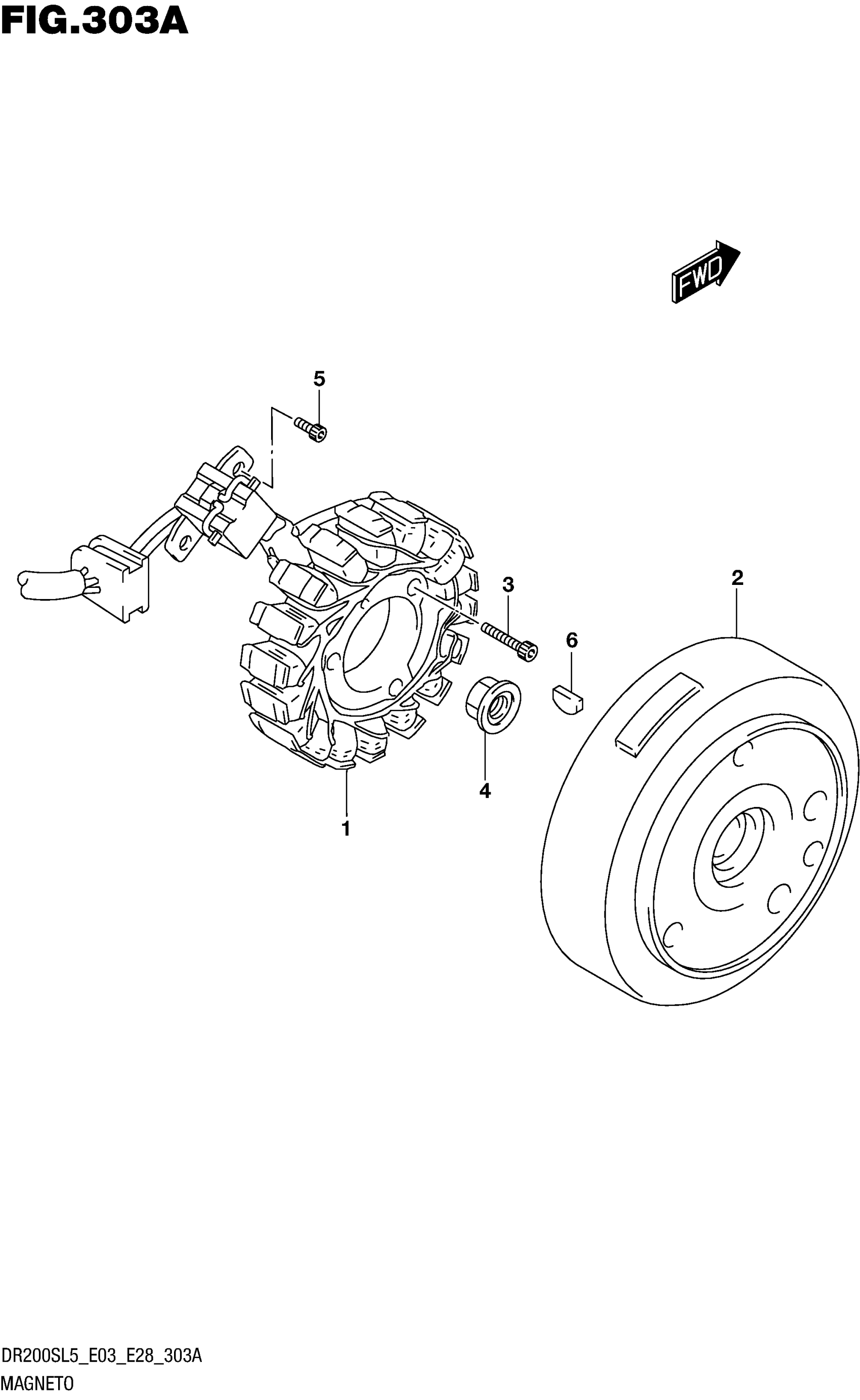

Suzuki DR200SL5 (2015) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-49J00

$612.28

2

ROTOR ASSY

32102-49J00

Unavailable

3

BOLT

07130-0525A

$2.29

4

NUT, MAGNETO ROTOR

31792-26F10

$4.28

5

BOLT

07130-0512A

$2.19

6

KEY

09420-03008

$2.90
