2015 Suzuki DR200SL5 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2015 Suzuki DR200SL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

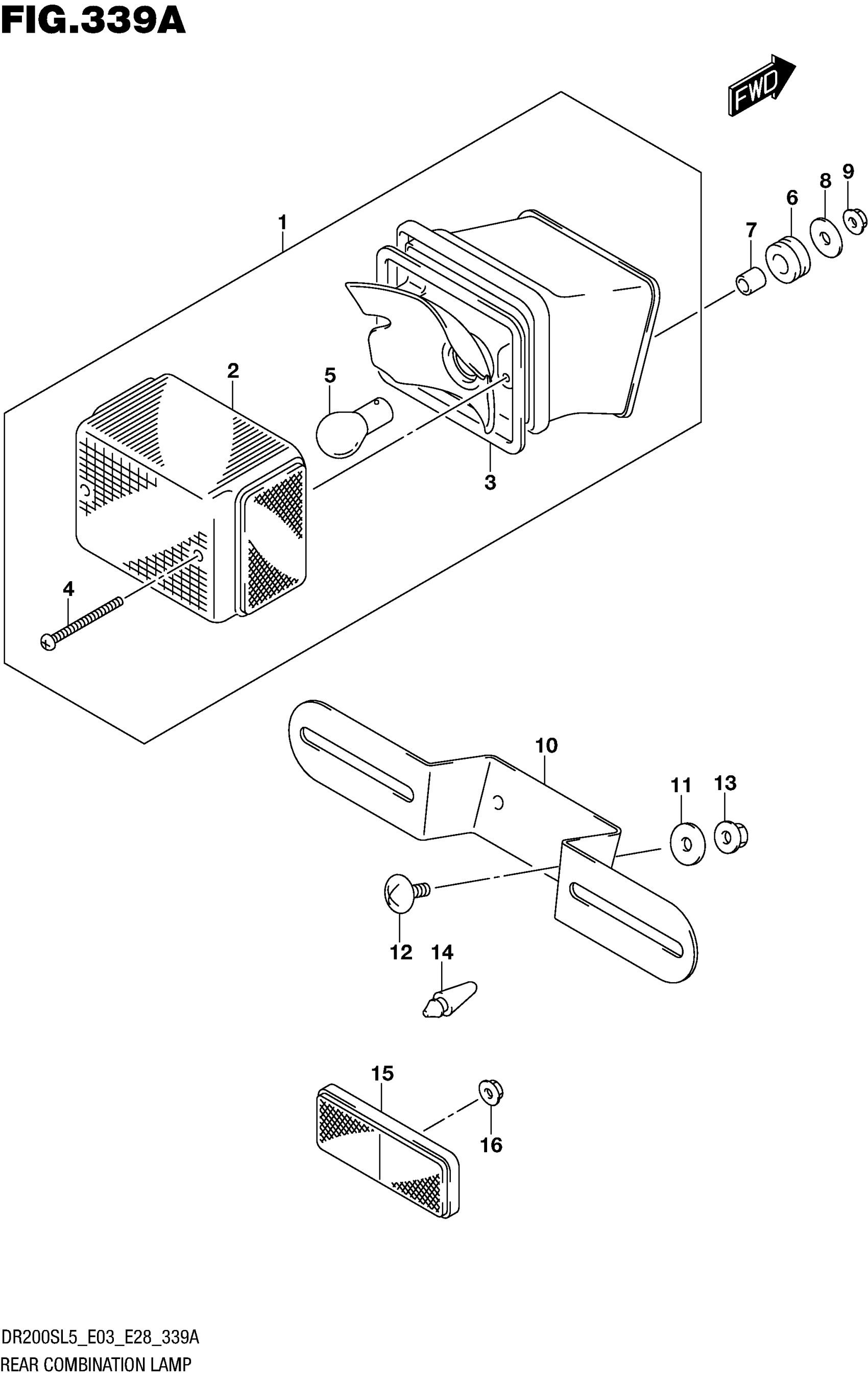

2015 Suzuki DR200SL5 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$114.89

In stock

2

LENS

35712-42A30

1

$68.03

In stock

3

.GASKET LENS

35713-14D30

1

$8.91

In stock

4

SCREW (4X45)

09125-04501

2

$3.13

In stock

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

6

CUSHION

09320-10501

2
Out of stock

7

SPACER (6.5X10X10)

09180-06310

2
Out of stock

8

WASHER (6.5X18X1.6)

09160-06109

2
Out of stock

9

NUT

08316-1006A

2
Out of stock

10

BRACKET, LICENSE PLATE

35927-49J00

1
Out of stock

11

WASHER (6.5X16X1)

09160-06129

2
Out of stock

12

SCREW

02142-0612A

2
Out of stock

13

NUT

08316-1006A

2
Out of stock

14

CUSHION

09321-06030

1
Out of stock

15

REFLEX REFLECTOR ASSY, REAR

35970-07F01

1
Out of stock

16

NUT

08316-1005A

1
Out of stock
