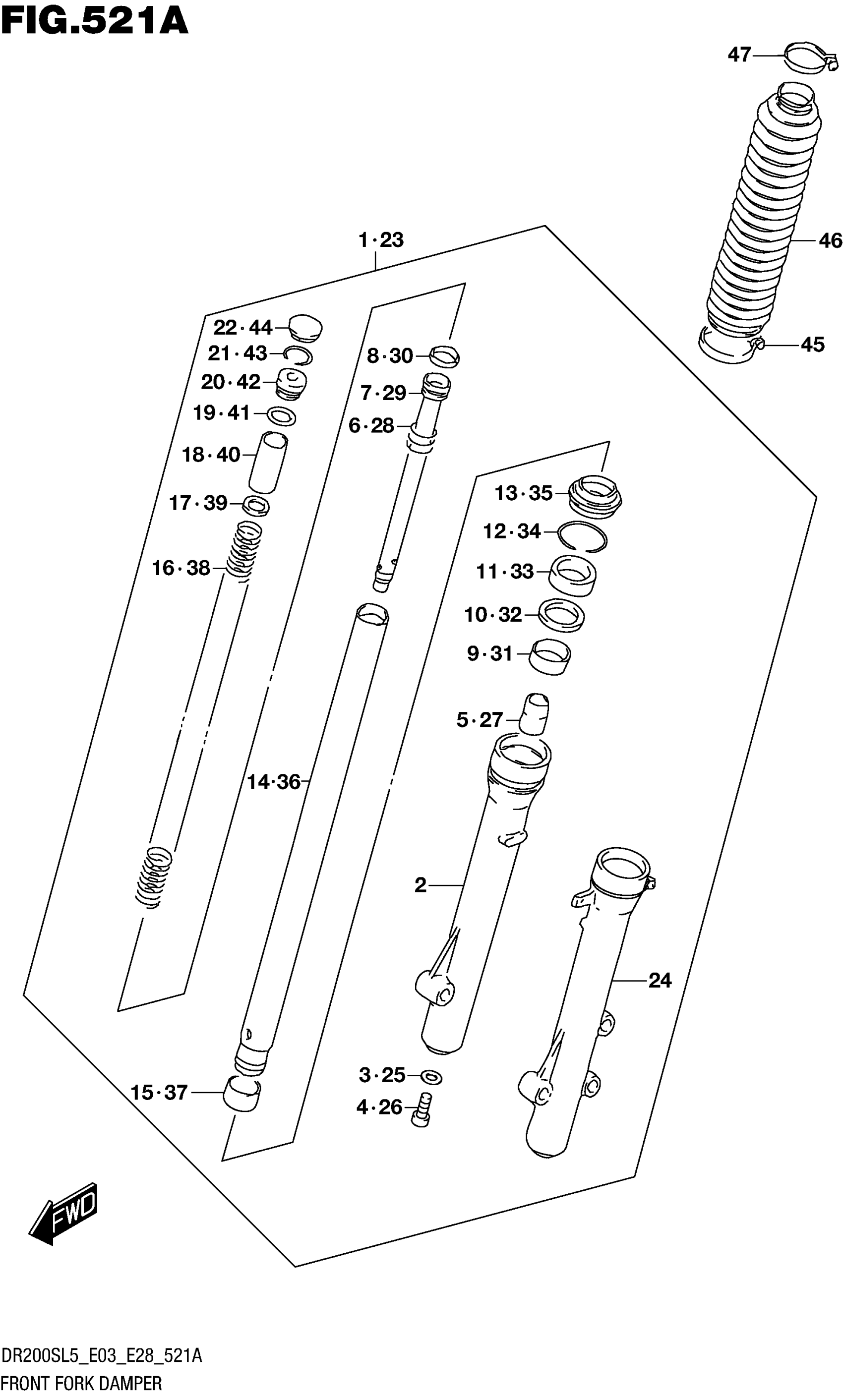

Find the part on the Front Fork Damper diagram for your 2015 Suzuki DR200SL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR200SL5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-42AA0

1
Out of stock

2

TUBE, OUTER RH

51131-01A01

1
Out of stock

3

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

4

BOLT, CENTER

51147-06F10

1
Out of stock

5

PIECE, OIL LOCK

51195-43530

1
Out of stock

6

SPRING, REBOUND

51177-01A00

1
Out of stock

7

CYLINDER

51146-42AA0

1
Out of stock

8

RING, PISTON

51196-45200

1
Out of stock

9

BUSH, GUIDE

51152-33300

1
Out of stock

10

SPACER, SEAL

51168-30B00

1
Out of stock

11

SEAL, OIL

51153-19D10

1
Out of stock

12

RING, OIL SEAL STOPPER

51156-01A00

1
Out of stock

13

DUST SEAL

51173-01A00

1
Out of stock

14

TUBE, INNER

51110-01A30

1
Out of stock

15

PISTON

51121-33300

1
Out of stock

16

SPRING, MAIN

51171-42AA0

1
Out of stock

17

SEAT, SPRING

51192-20510

1
Out of stock

18

SPACER, SPRING

51176-42AA0

1
Out of stock

19

O RING

51181-31030

1
Out of stock

20

BOLT, SPRING

51175-47400

1
Out of stock

21

RING, STOPPER

51169-47400

1
Out of stock

22

CAP

51189-31230

1
Out of stock

23

DAMPER ASSY, FRONT FORK LH

51104-42AA0

1
Out of stock

24

TUBE, OUTER LH

51141-01A01

1
Out of stock

25

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

26

BOLT, CENTER

51147-06F10

1
Out of stock

27

PIECE, OIL LOCK

51195-43530

1
Out of stock

28

SPRING, REBOUND

51177-01A00

1
Out of stock

29

CYLINDER

51146-42AA0

1
Out of stock

30

RING, PISTON

51196-45200

1
Out of stock

31

BUSH, GUIDE

51152-33300

1
Out of stock

32

SPACER, SEAL

51168-30B00

1
Out of stock

33

SEAL, OIL

51153-19D10

1
Out of stock

34

RING, OIL SEAL STOPPER

51156-01A00

1
Out of stock

35

DUST SEAL

51173-01A00

1
Out of stock

36

TUBE, INNER

51110-01A30

1
Out of stock

37

PISTON

51121-33300

1
Out of stock

38

SPRING, MAIN

51171-42AA0

1
Out of stock

39

SEAT, SPRING

51192-20510

1
Out of stock

40

SPACER, SPRING

51176-42AA0

1
Out of stock

41

O RING

51181-31030

1
Out of stock

42

BOLT, SPRING

51175-47400

1
Out of stock

43

RING, STOPPER

51169-47400

1
Out of stock

44

CAP

51189-31230

1
Out of stock

45

BAND, BOOT LOWER

51576-42AA0

2
Out of stock

46

BOOT This part replaces 51571-01A00-019.

51571-01A01-019

2
Out of stock

47

BAND, BOOT UPPER

51575-01A00

2
Out of stock
