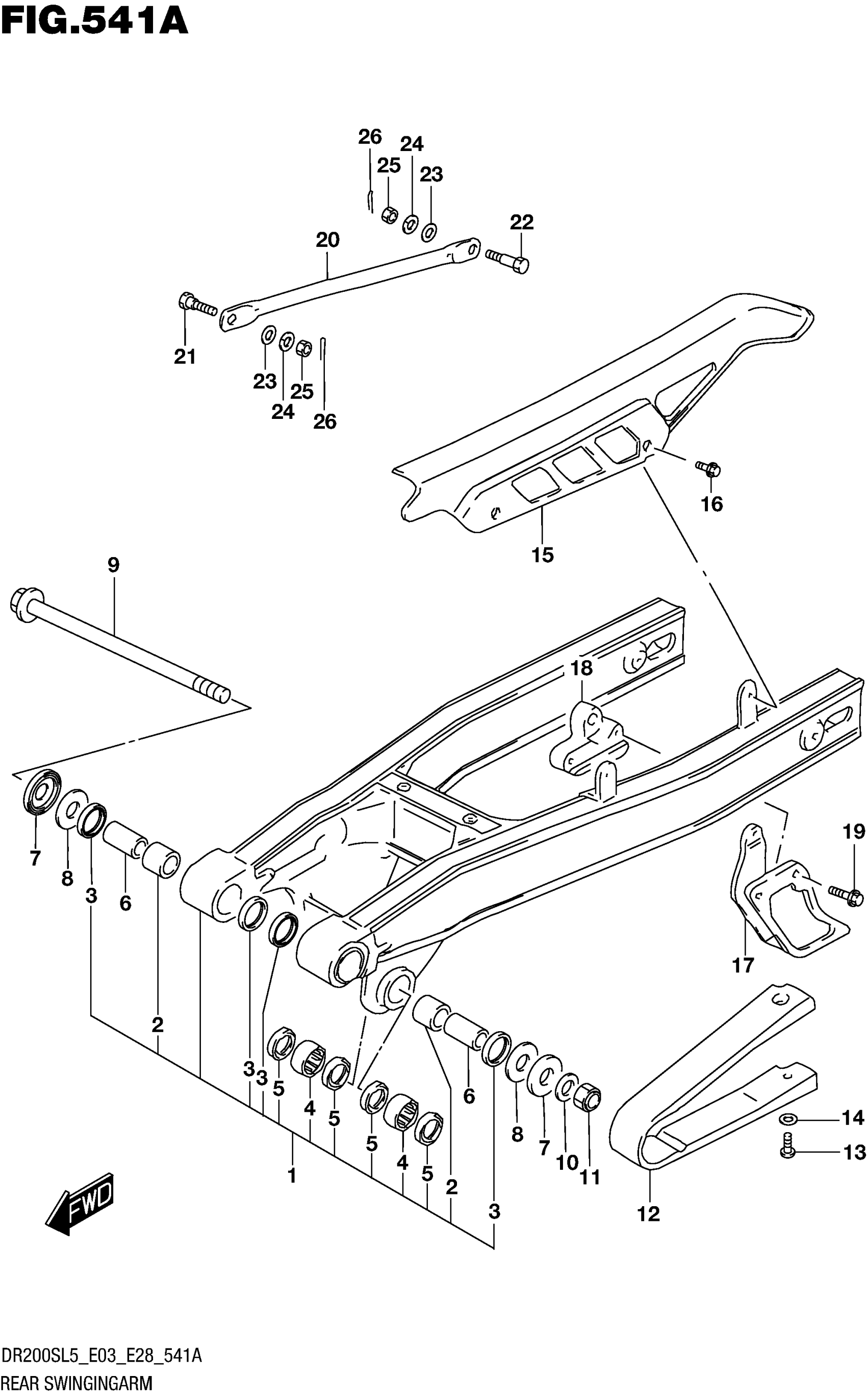

Suzuki DR200SL5 (2015) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASS This part replaces 61100-42840.

61100-42841

$755.02

2

.BUSHING, RR SWGARM PIVOT

61261-13700

$15.33

3

OIL SEAL (20X27X5)

09283-20031

$4.73

4

BEARING (20X27X25)

09263-20053

$29.42

5

SEAL, DUST

62647-44A00

$8.32

6

SPACER, RR SWGARM PVT

61251-42A00

$26.03

7

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.59

8

THRUST WASHER

08211-14322

$4.03

9

SHAFT, PIVOT

61211-26B01

$45.25

10

WASHER (14.5X24X2.3)

09160-14057

$3.42

11

NUT

09159-14019

$10.63

12

BUFFER, CHAIN TOUCH DEFENSE

61273-42A01

$42.37

13

SCREW

02142-0620A

$1.38

14

WASHER

09169-06037

$2.67

15

CASE, CHAIN

61311-01A03

$59.68

16

BOLT (6X10)

09116-06096

$2.28

17

GUIDE, CHAIN

61341-13A10

$43.40

18

RUBBER,CHAIN GU This part replaces 61345-42A00.

61345-42A01

$14.13

19

BOLT

01550-0620A

$1.97

20

TORQUE LINK, REAR (SILVER)

64311-42A00-13L

$26.03

21

BOLT (8X28)

09111-08088

$6.75

22

BOLT (8X26.5)

09111-08013

$2.80

23

WASHER

08322-0108B

$2.37

24

LOCK WASHER (8.2X15.2X1.6)

09162-08008

$2.07

25

NUT

09140-08008

$1.45

26

COTTER PIN

04111-2020A

$1.22
