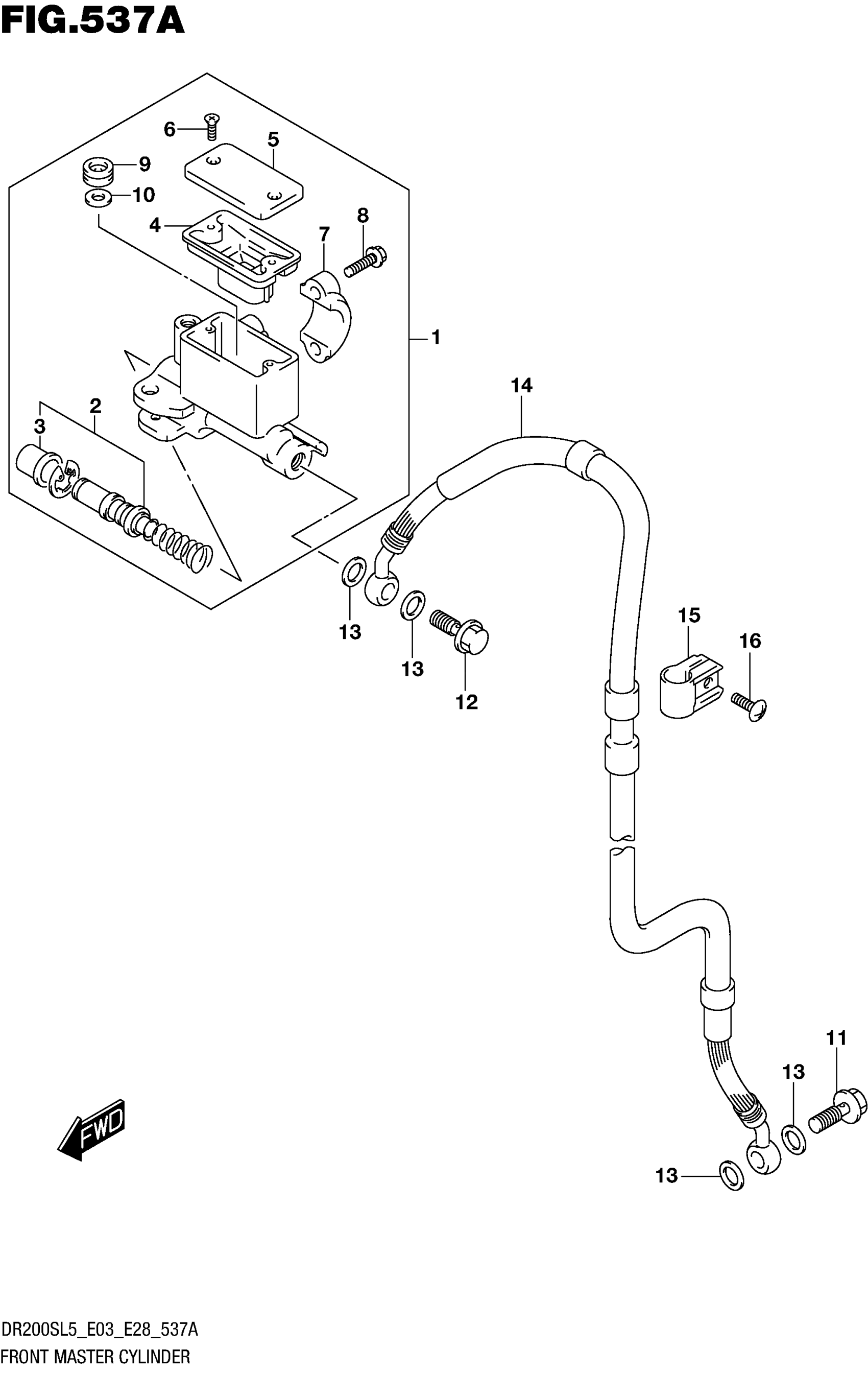

Find the part on the Front Master Cylinder diagram for your 2015 Suzuki DR200SL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki DR200SL5 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER (SILVER)

59600-44E30

1
Out of stock

2

PISTON/CUP SET

69600-38810

1

$66.13

In stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-44B00

1
Out of stock

5

CAP (SILVER)

59669-03D00

1
Out of stock

6

SCREW

02122-04127

2
Out of stock

7

HOLDER (SILVER)

59671-03D00

1

$29.60

In stock

8

BOLT

59675-27C00

2
Out of stock

9

SEPARATOR

59748-36E00

1

$10.58

In stock

10

RING

69744-36E00

1

$4.53

In stock

11

UNION

09360-10061

1

$6.33

In stock

12

UNION

09360-10062

1
Out of stock

13

WASHER (10X15X1.5)

09161-10009

4
Out of stock

14

HOSE, FRONT BRAKE

59480-49J00

1
Out of stock

15

CLAMP, FR BRAKE HOSE

59245-49J00

1
Out of stock

16

SCREW

02142-0612B

1
Out of stock
