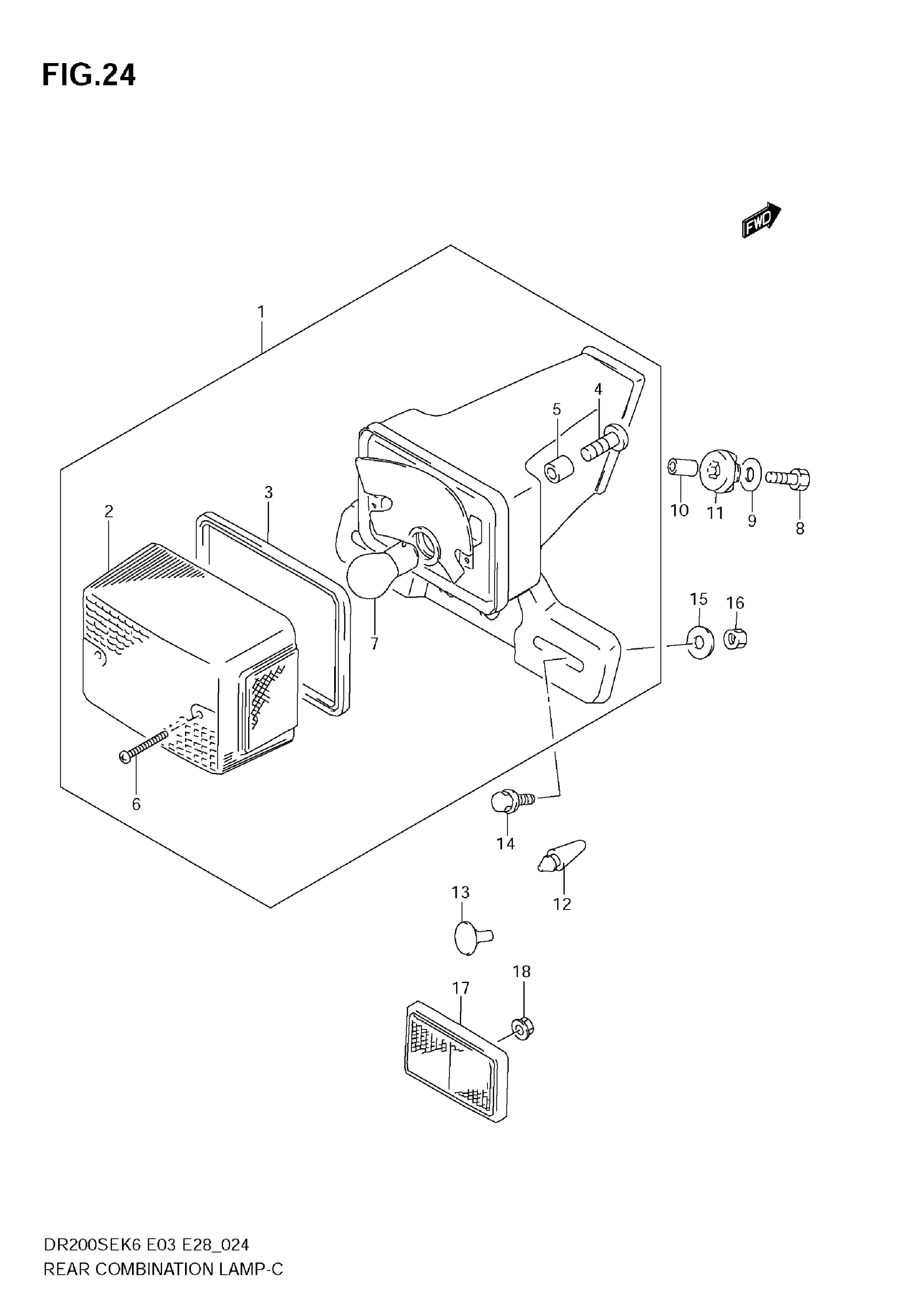

Suzuki DR200SE (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 7

35710-42A30

$179.17

2

LENS

35712-42A30

$68.03

3

.GASKET LENS

35713-14D30

$8.91

4

SCREW (6X25)

09125-06055

$2.37

5

SPACER

35766-14D30

$5.00

6

SCREW, LENS (4X45)

09125-04501

$2.90

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

8

BOLT

01500-0620B

$2.35

9

WASHER (6.5X18X1.6)

09160-06109

$1.15

10

SPACER (6.5X10X13)

09180-06291

$2.67

11

CUSHION

09320-09015

$3.70

12

CUSHION, PLATE

09321-06030

$4.28

13

CUSHION, REAR FENDER

09321-06026

$2.15

14

BOLT

01500-0630B

$3.30

15

WASHER (6.5X18X1.6)

09160-06109

$1.15

16

NUT

08310-0006B

$2.37

17

REFLECTOR ASSY, REAR

35970-38E00

$53.69

18

NUT

08316-1005B

$2.50
