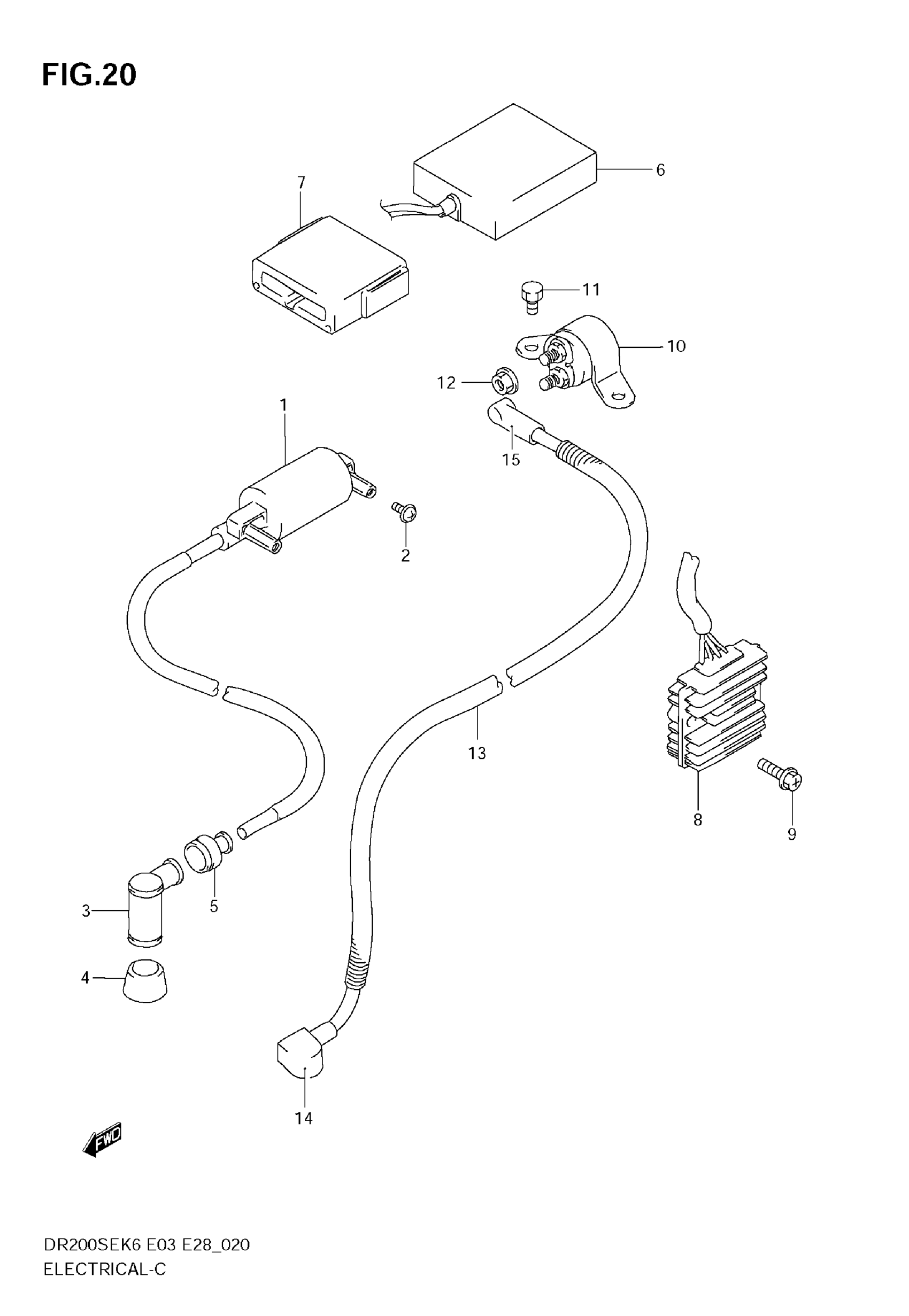

Suzuki DR200SE (2009) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-05350

$152.47

2

SCREW

02142-0510B

$1.77

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$13.49

4

SEAL, SPARK PLUG

33541-38210

$4.40

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

6

CDI UNIT

32900-42A30

Unavailable

7

CUSHION, CDI UNIT

32980-44A00

Unavailable

8

RECTIFIER

32800-08D10

$263.42

9

BOLT

02162-0625B

$1.46

10

RELAY ASSY, STARTING MOTOR

31800-15501

$89.51

11

SCREW (6X10)

09128-06044

$1.38

12

NUT

08361-3506A

$1.81

13

WIRE, STARTER MOTOR LEAD | Includes Item(s) 14 - 15

33810-44A00

$74.48

14

CAP, STARTER MOTOR TERMINAL

31861-06C00

Unavailable

15

CAP, STARTER RELAY

31861-10D00

Unavailable
