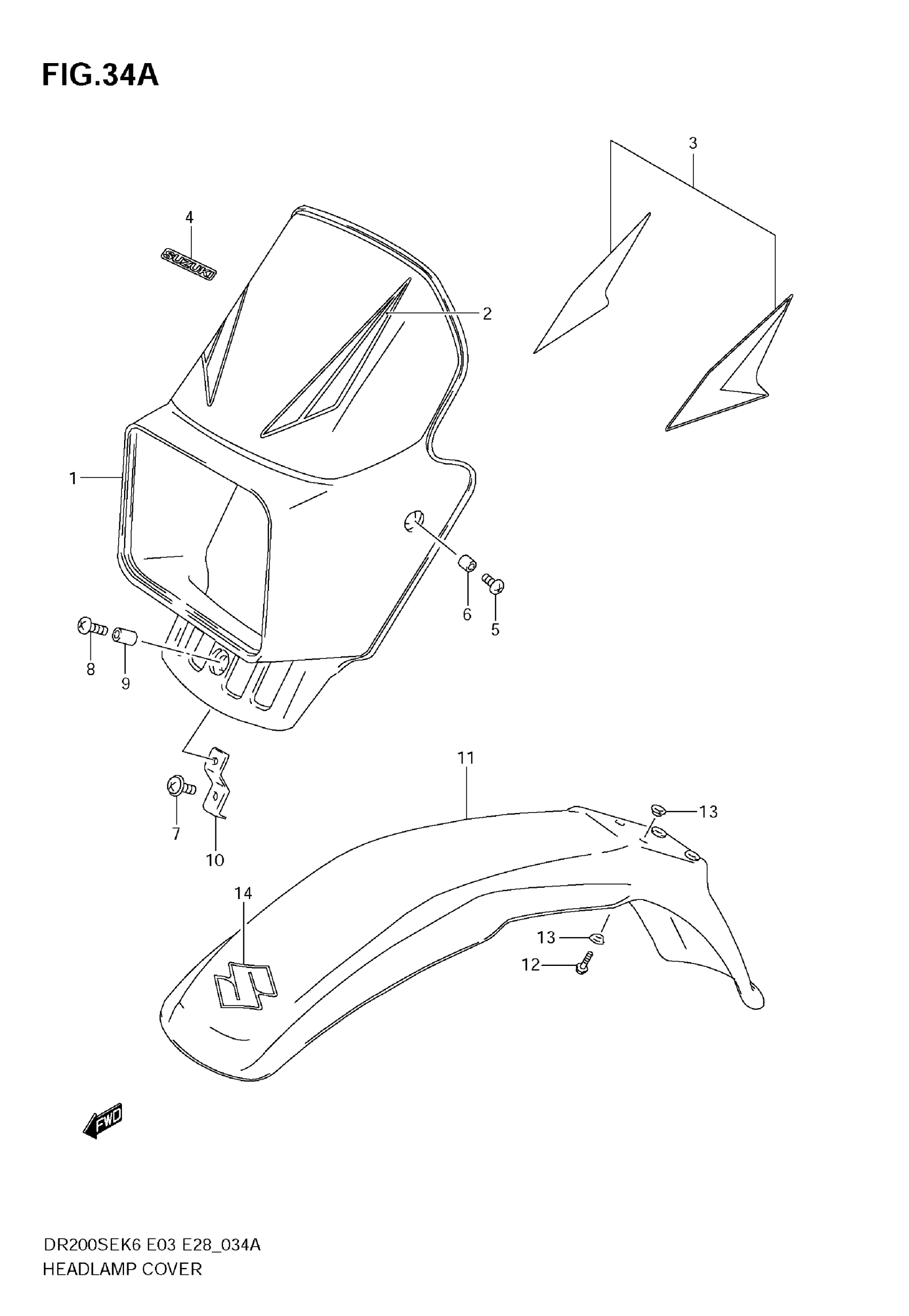

Suzuki DR200SE (2009) HEADLAMP COVER (MODEL K8/K9) Diagram

#

Description
Price

1

COVER, HEADLAMP (BLACK) | MODEL K8

51811-14A30-019

$118.83

1

COVER, HEADLAMP (BLUE) | MODEL K8

51811-14A30-YLW

Unavailable

1

COVER, HEADLAMP (BLACK) | MODEL K9

51811-14A30-019

$118.83

1

COVER, HEADLAMP (WHITE) | MODEL K9

51811-14A30-30H

$114.58

2

TAPE SET, COVER | MODEL K8 FOR 019

68720-42A00-CNS

Unavailable

2

TAPE SET, COVER | MODEL K8 FOR YKY

68720-42A00-EVN

Unavailable

3

TAPE SET, COVER | MODEL K9 FOR 019

68720-42A10-GJF

Unavailable

3

TAPE SET, COVER | MODEL K9 FOR 30H

68720-42A10-GJE

Unavailable

4

EMBLEM,"SUZUKI" This part replaces 68721-05D00-YD8.

68721-05D01-YD8

$11.18

5

SCREW

02142-0612B

$1.89

6

SPACER (6.1X8X3.5)

09180-06245

$2.19

7

SCREW

02112-36127

$3.42

8

SCREW

02142-0620B

$1.81

9

SPACER (6.1X8X12)

09180-06249

$2.65

10

BRACE, COVER LOWER

51814-44A00

$6.22

11

FENDER, FRONT (BLACK)

53111-44A20-019

Unavailable

11

FENDER, FRONT (BLUE) | MODEL K8

53111-44A20-YLW

Unavailable

11

FENDER, FRONT (WHITE) | MODEL K9

53111-44A20-30H

$162.87

12

BOLT

01550-0616B

$2.53

13

WASHER (6.3X16X1)

09169-06053

$1.10

14

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

$13.10
