2005 Suzuki DR200SE Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2005 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

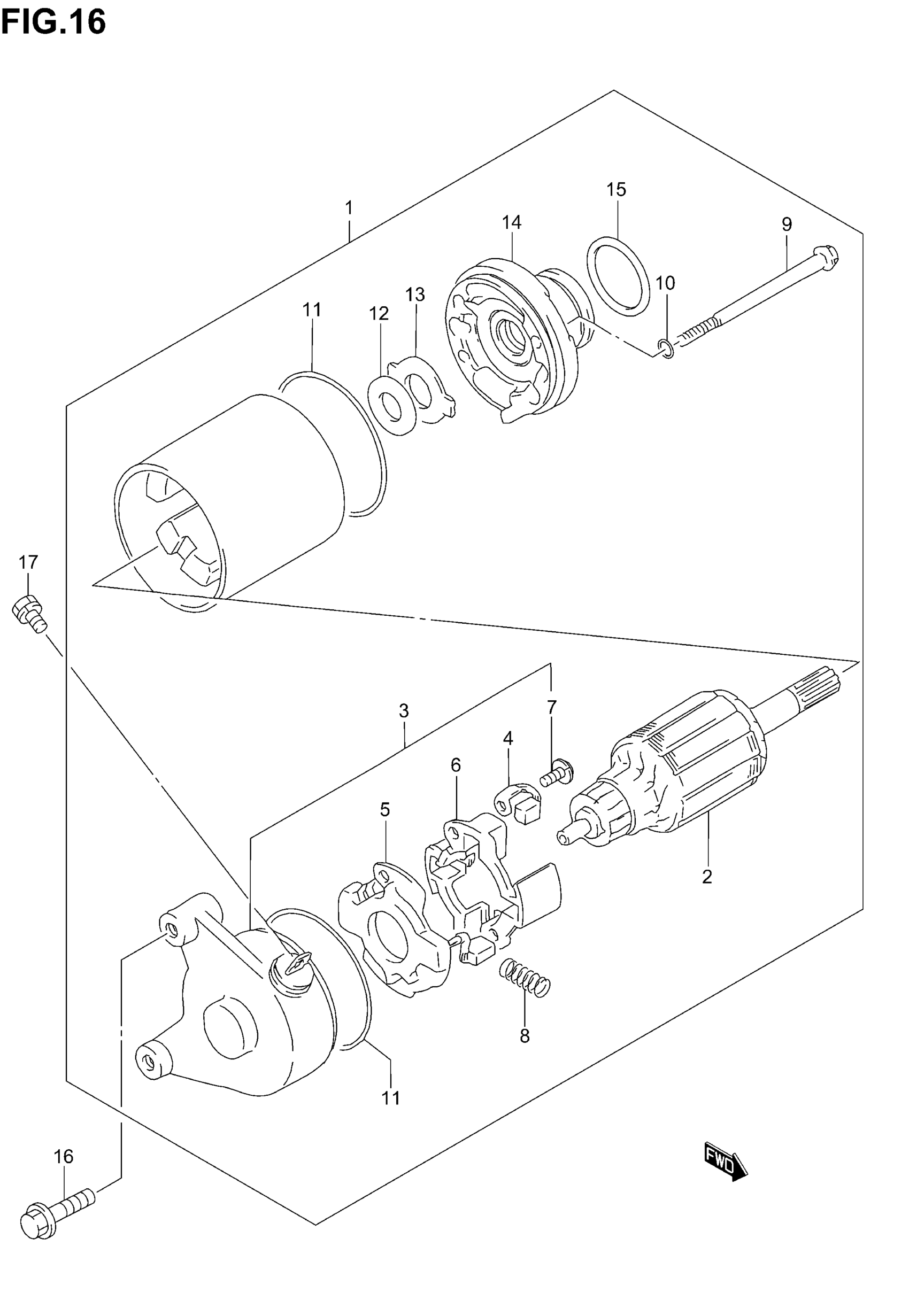

2005 Suzuki DR200SE Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

ARMATURE

31310-11D00

1
Out of stock

3

FRAME ASSY, COMMUTATOR END

31175-42A01

1
Out of stock

4

BRUSH

31132-32C10

2

$24.57

In stock

5

BRUSH SUB ASSY, STARTER

31130-32C20

1
Out of stock

6

HOLDER, BRUSH

31133-32C10

1
Out of stock

7

2

$2.50

In stock

8

SPRING

31135-32C10

4
Out of stock

9

BOLT

31281-32C10

2
Out of stock

10

O RING

31156-38300

2

$5.10

In stock

11

O RING

31264-32C10

2

$16.03

In stock

12

SHIM, NO.3

31361-38300

1

$2.25

In stock

13

PLATE, LOCK

31361-32C10

1
Out of stock

14

BRACKET

31150-42A01

1
Out of stock

15

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

16

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

17

SCREW (5X8)

09137-05004

1

$2.50

In stock
← Starter Clutch Starting Motor →
