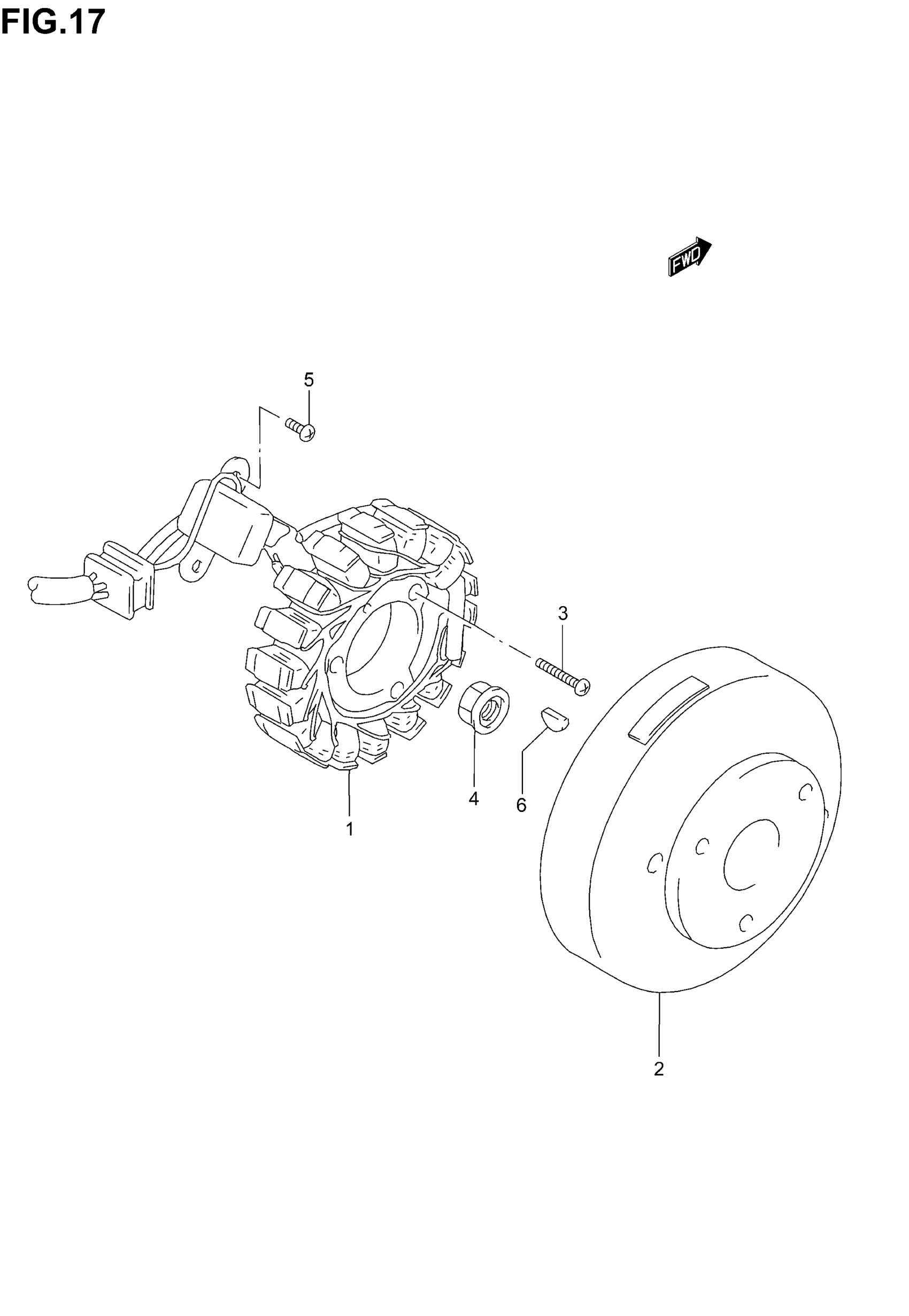

Suzuki DR200SE (2005) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-42A30.

32101-42A40

$657.57

2

ROTOR ASSY

32102-42A30

Unavailable

3

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.45

4

NUT | MODEL K1/K2 This part replaces 08316-10103.

08316-1010B

$2.65

4

NUT (M10X1.25) | MODEL K3

09159-10110

$3.42

4

NUT (M12X1.25) | MODEL K4/K5

31792-26F10

$4.28

5

SCREW This part replaces 02112-05123.

02112-0512A

$1.45

6

KEY

09420-03008

$2.90
