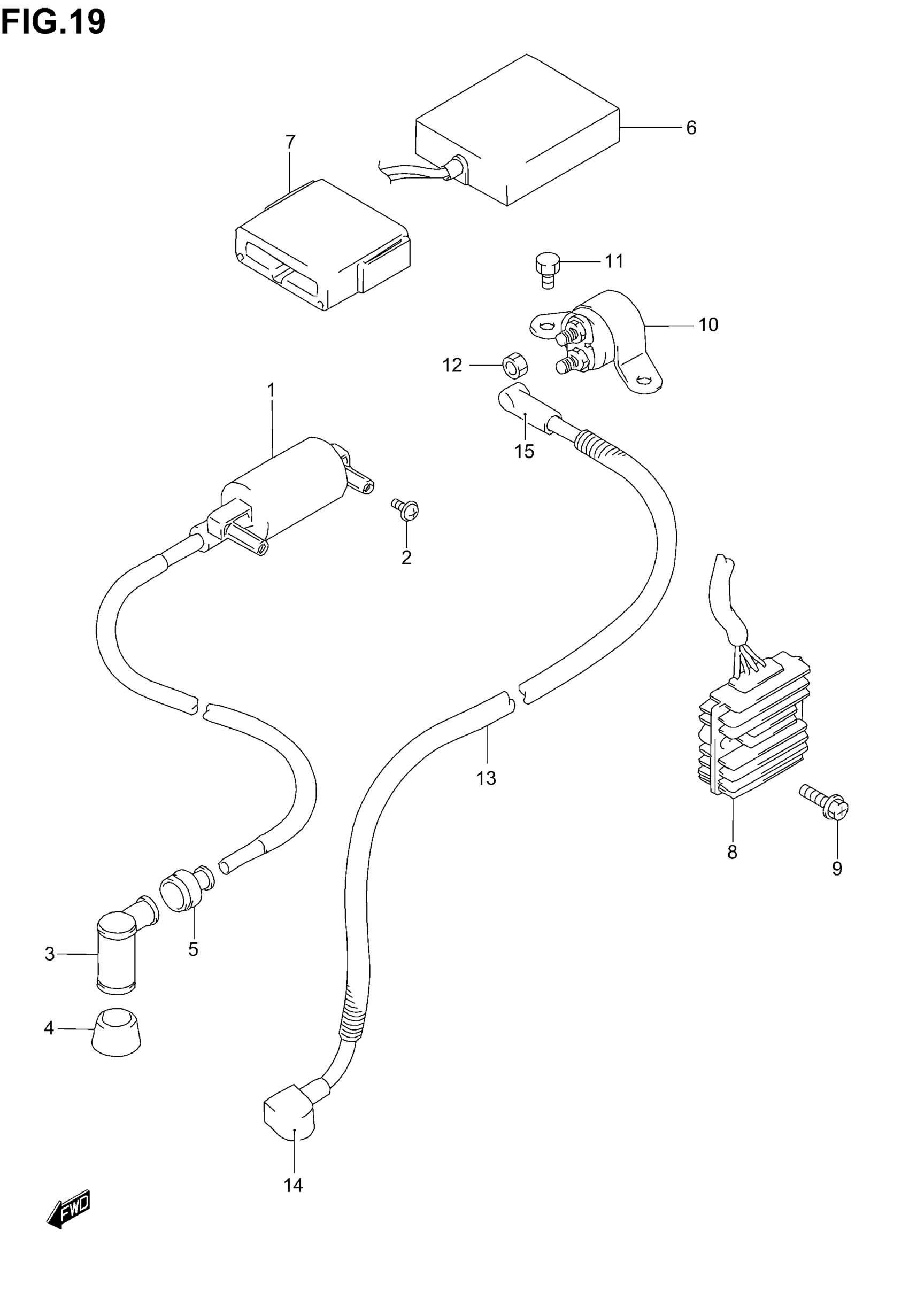

Suzuki DR200SE (2005) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-05350

$152.47

2

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$13.49

4

SEAL, SPARK PLUG | MODEL K1/K2/K3 This part replaces 33541-24510.

33541-47D00

$7.16

4

SEAL, SPARK PLUG CAP | MODEL K4

33541-47D00

$7.16

4

SEAL, SPARK PLUG | MODEL K5

33541-38210

$4.40

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

6

CDI UNIT

32900-42A30

Unavailable

7

CUSHION, CDI UNIT

32980-44A00

Unavailable

8

RECTIFIER

32800-08D10

$263.42

9

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

10

RELAY ASSY, STARTING MOTOR

31800-15501

$89.51

11

SCREW (6X10)

09128-06044

$1.38

12

NUT This part replaces 08361-35068.

08361-3506A

$1.81

13

WIRE, STARTER MOTOR LEAD | Includes Item(s) 14 - 15

33810-44A00

$74.48

14

CAP, STARTER MOTOR TERMINAL

31861-06C00

Unavailable

15

CAP, STARTER RELAY

31861-10D00

Unavailable
