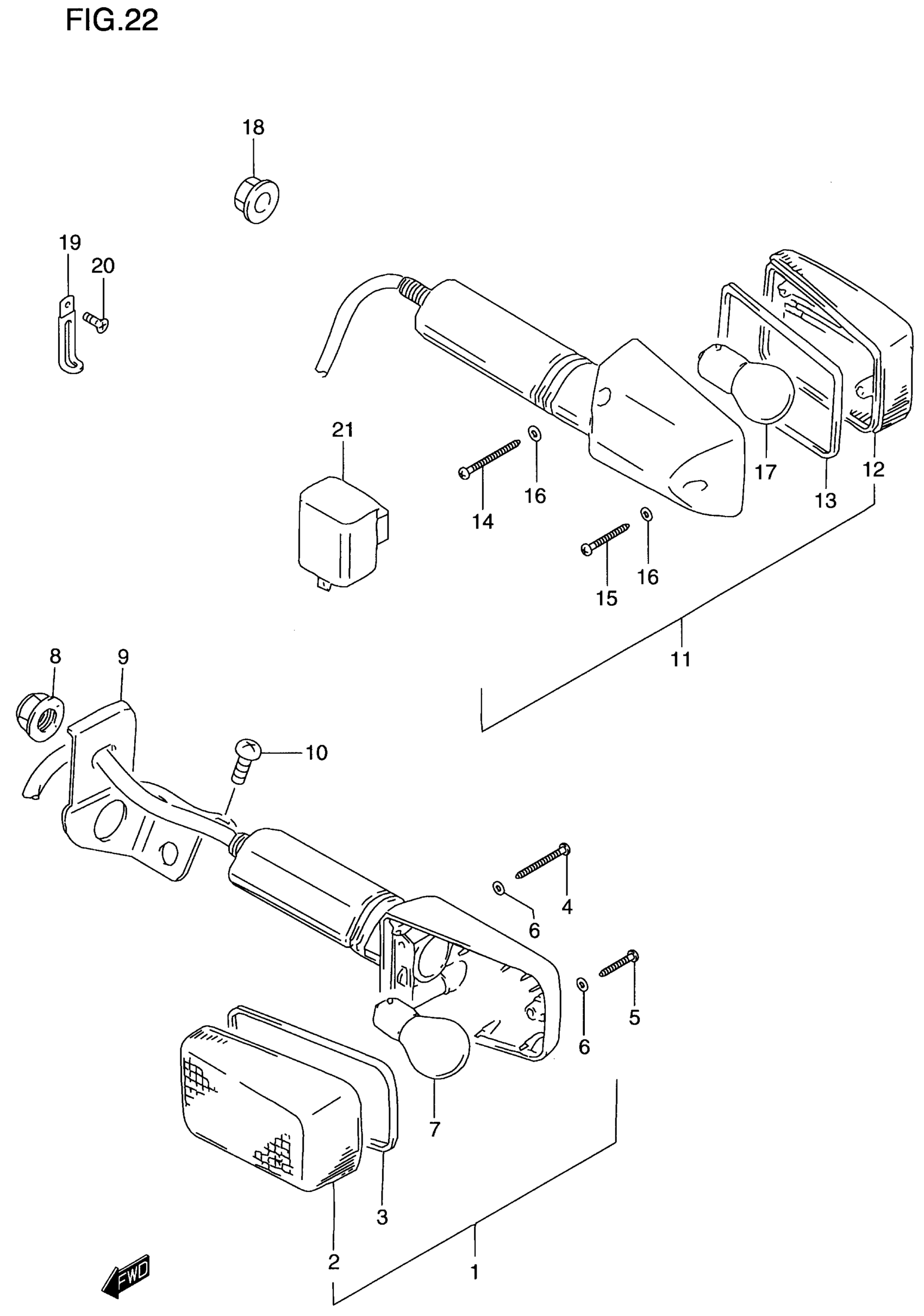

Find the part on the Turn Signal Lamp diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki DR200SE Turn Signal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

LENS, FRONT TURN SIGNAL

35612-17C20

2
Out of stock

3

GASKET

35613-27A00

2
Out of stock

4

SCREW

35623-27A00

4
Out of stock

5

SCREW

35725-40511

2
Out of stock

6

GASKET

35627-27A02

6

$1.78

In stock

7

BULB (12V,21W)

09471-12045

2
Out of stock

8

NUT This part replaces 08316-10103.

08316-1010B

2
Out of stock

9

1

$12.75

In stock

9

1

$12.75

In stock

10

SCREW This part replaces 02142-05083.

02142-0508A

2
Out of stock

11

2

$121.55

In stock

12

LENS, REAR TURN SIGNAL

35652-17C20

2
Out of stock

13

GASKET

35613-27A00

2
Out of stock

14

SCREW

35623-27A00

2
Out of stock

15

SCREW

35725-40511

2
Out of stock

16

GASKET

35627-27A02

2

$1.78

In stock

17

BULB (12V,21W)

09471-12045

2
Out of stock

18

NUT This part replaces 08316-10103.

08316-1010B

2
Out of stock

19

CLAMP

09404-06429

3
Out of stock

20

3

$1.83

In stock

21

RELAY, TURN SIGNAL

38610-31X50

1
Out of stock
