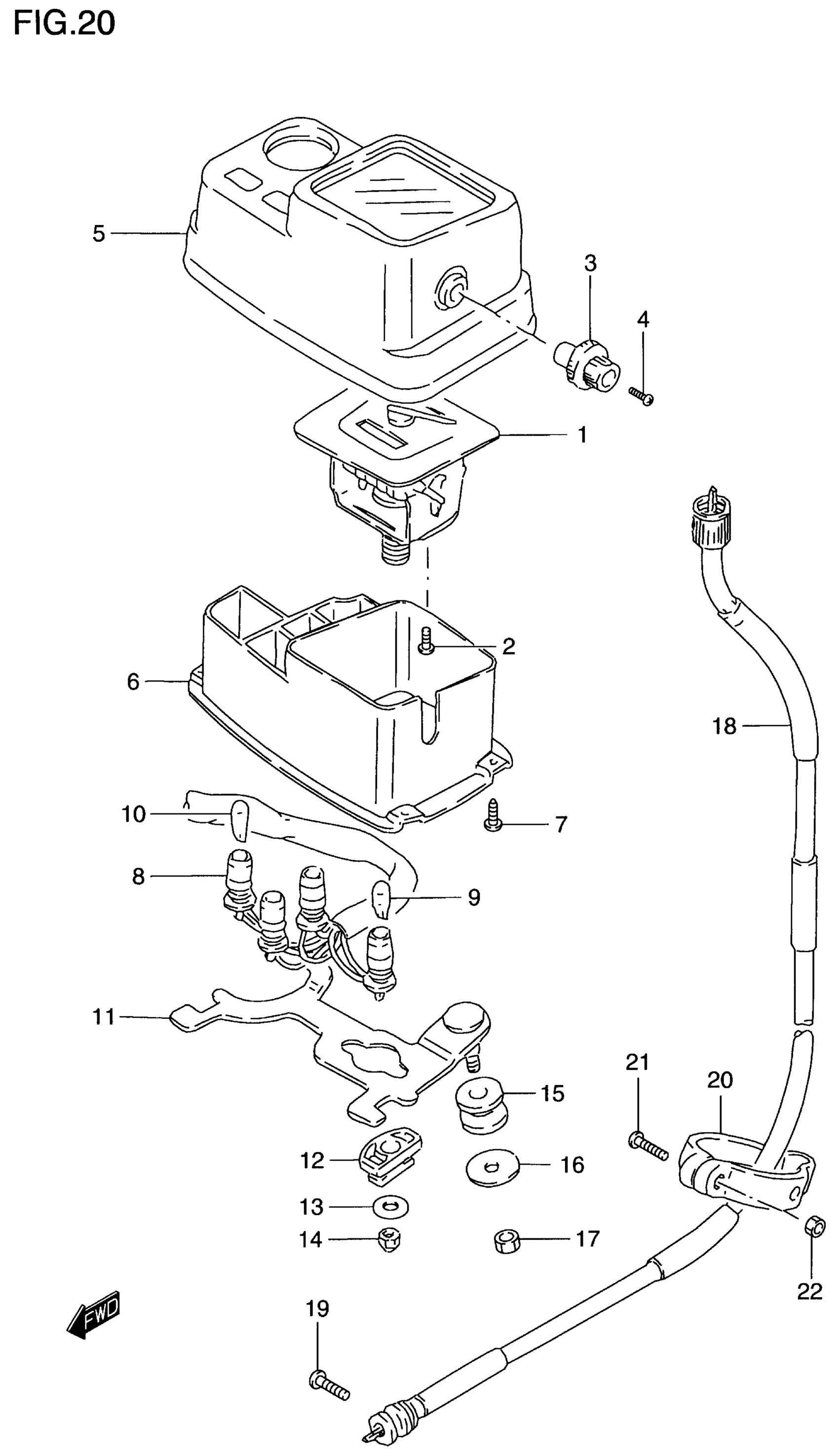

Suzuki DR200SE (2000) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER

34120-44AB0

$358.35

1

SPEEDOMETER | E28

34120-44A90

Unavailable

2

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

3

KNOB, TRIP

34124-14A10

$10.35

4

SCREW

09139-02003

$1.43

5

HOOD, METER

34150-44AE0

$86.48

5

HOOD, METER | E28

34150-44AD0

Unavailable

6

CASE, METER

34111-14A10

$45.52

7

SCREW

34184-12B00

$2.77

8

SOCKET ASSY

34173-44A90

Unavailable

9

BULB (12V,3.4W)

09471-12028

$1.98

10

BULB (12V,1.7W)

09471-12077

$3.25

11

BRACKET, METER

34950-44A00

Unavailable

12

CUSHION

34189-14A10

$6.22

13

WASHER (5.5X16X1.2) | MODEL T/V/W/X This part replaces 09160-05017.

09160-05043

$2.33

13

WASHER (5.5X16X1.2) | MODEL Y

09160-05043

$2.33

14

NUT

08310-00057

$1.83

15

CUSHION

34956-15100

$3.50

16

WASHER | MODEL T/V This part replaces 09160-06006.

09160-06084

$1.77

16

WASHER | MODEL W/X This part replaces 09160-06132.

09160-06084

$1.77

16

WASHER (6.5X18X1.6) | MODEL Y

09160-06084

$1.77

17

NUT This part replaces 08310-00063.

08310-0006A

$1.83

18

CABLE ASSY,SPEE This part replaces 34910-44A20.

34910-44A21

$43.48

19

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

20

CLAMP, SPEEDOMETER CABLE

34938-01A00

$14.73

21

.SCREW This part replaces 02112-05163.

02112-0516A

$1.45

22

NUT This part replaces 08310-00053.

08310-0005A

$1.83
