1987 Suzuki DR100 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1987 Suzuki DR100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

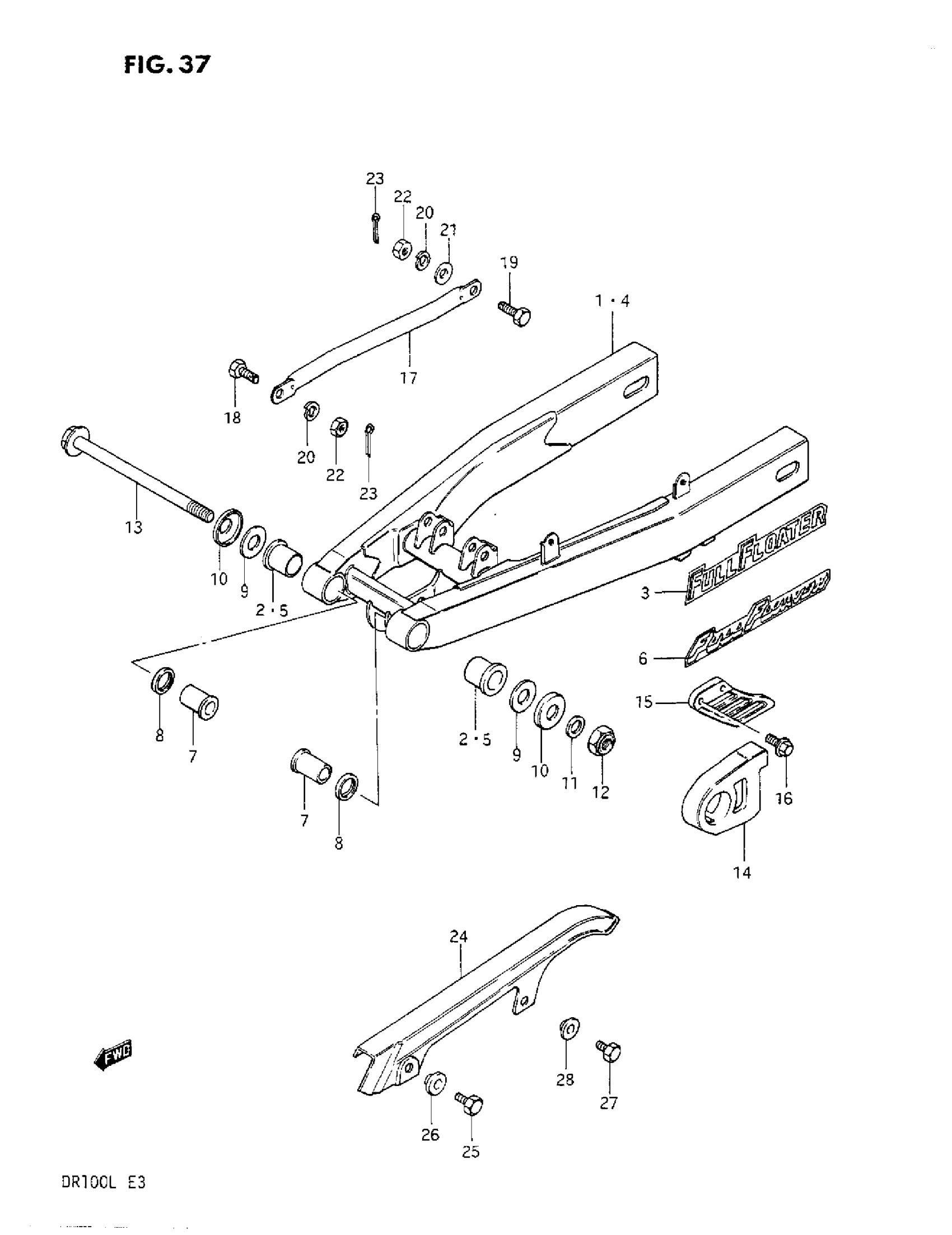

1987 Suzuki DR100 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (GOLD) | MODEL F

61100-05820-08C

1
Out of stock

2

BUSH

61261-05301

2

$26.03

In stock

3

EMBLEM

68381-20920-97J

2
Out of stock

4

SWINGING ARM ASSY, REAR (SILVER) | MODEL G/H/J/K/L

61000-05275-13L

1
Out of stock

5

BUSH

61261-05301

2

$26.03

In stock

6

EMBLEM

68381-34A10-97J

2
Out of stock

7

SPACER

61251-05300

2
Out of stock

8

OIL SEAL

09286-20001

2

$4.70

In stock

9

WASHER

08211-14341

2

$3.72

In stock

10

COVER

61262-45002

2

$8.18

In stock

11

1

$2.07

In stock

12

1

$3.91

In stock

13

1

$33.12

In stock

14

BUFFER, CHAIN DEFENSE

61273-05251

1
Out of stock

15

GUIDE, CHAIN

61341-05260

1
Out of stock

16

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

17

TORQUE LINK, REAR (SILVER) | MODEL F This part replaces 64311-48700-08C.

64311-48700-13L

1
Out of stock

17

TORQUE LINK, REAR (SILVER) | MODEL G/H/J/K/L

64311-48700-13L

1
Out of stock

18

BOLT, FRONT

09111-08015

1
Out of stock

19

BOLT, REAR

09111-08013

1

$3.00

In stock

20

2

$2.28

In stock

21

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

22

NUT

09140-08008

2

$1.55

In stock

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

24

CHAIN CASE (BLACK) | FROM 61310-03400-291

61310-03400

1
Out of stock

25

BOLT, FRONT | MODEL L

09116-06060

1
Out of stock

26

1

$2.39

In stock

27

BOLT This part replaces 01107-06125.

01500-0612A

1
Out of stock

28

WASHER

09169-06026

1

$2.39

In stock
