1987 Suzuki DR100 Front Fork Diagram

← All diagrams

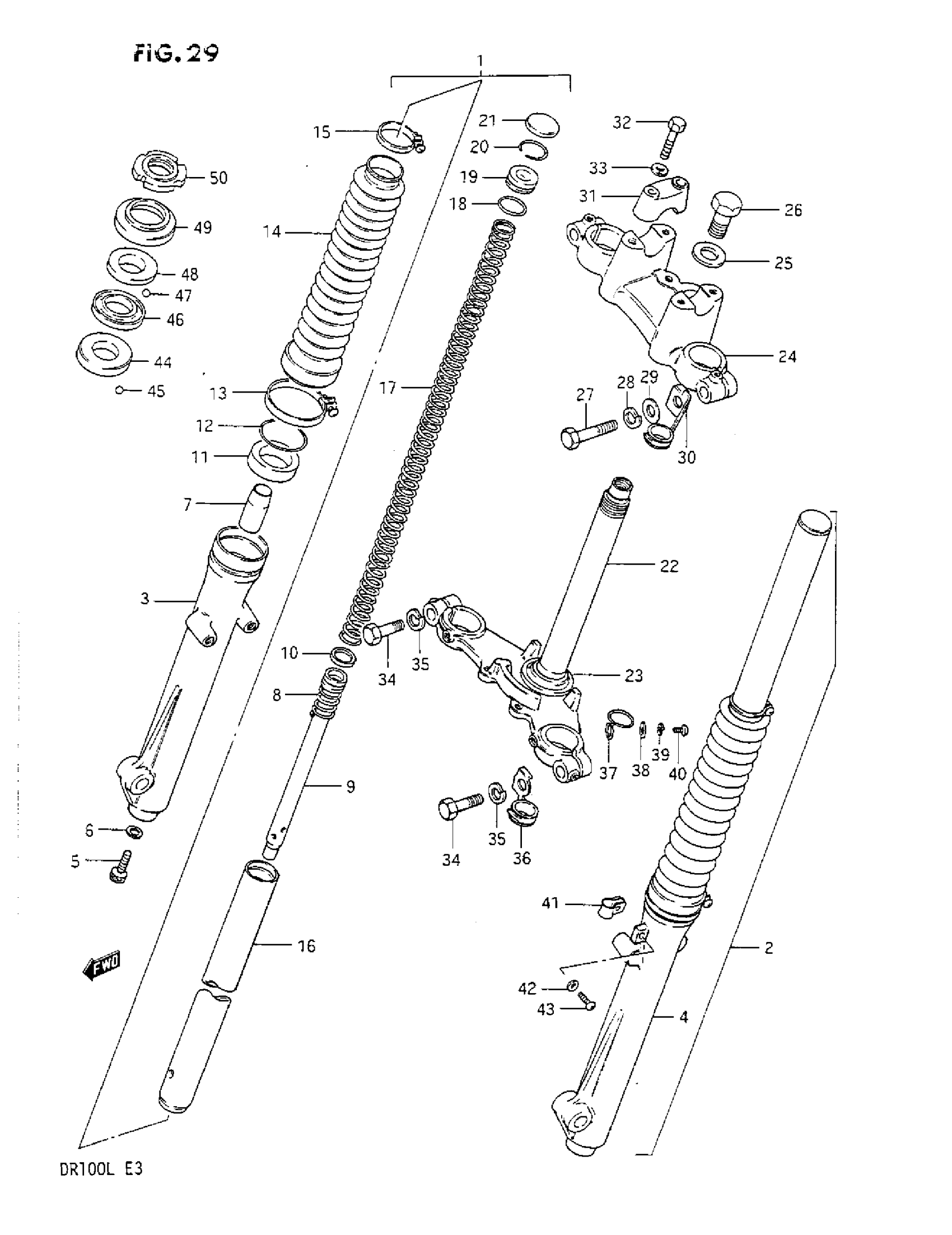

Find the part on the Front Fork diagram for your 1987 Suzuki DR100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki DR100 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, RH (BLUE/YELLOW)

51103-05260-7BP

1
Out of stock

2

DAMPER ASSY, LH (BLUE/YELLOW)

51104-05260-7BP

1
Out of stock

3

OUTER TUBE, RH (SILVER) This part replaces 51131-05260-163.

51131-05260-13L

1
Out of stock

4

OUTER TUBE, LH (SILVER) This part replaces 51141-05260-163.

51141-05260-13L

1
Out of stock

5

BOLT

51147-48130

2
Out of stock

6

O RING This part replaces 51148-31030.

51148-36011

2
Out of stock

7

.PIECE, OIL LOCK

51195-48000

2
Out of stock

8

SPRING

51177-48720

2
Out of stock

9

CYLINDER

51146-05240

2
Out of stock

10

RING, PISTON

51196-48000

2
Out of stock

11

.OIL SEAL

51153-48420

2
Out of stock

12

.OIL SEAL This part replaces 51156-36030.

51156-48730

2
Out of stock

13

BAND

51576-26515

2
Out of stock

14

BOOT (BLUE)

51571-26515-19F

2
Out of stock

15

BAND

51575-26515

2
Out of stock

16

INNER TUBE

51110-05260

2
Out of stock

17

SPRING

51171-05240

2
Out of stock

18

O-RING

51181-33131

2
Out of stock

19

SEAT, SPRING

51175-48500

2
Out of stock

20

RING

51169-48500

2
Out of stock

21

CAP

51189-26515

2
Out of stock

22

STEM,STEERING(B This part replaces 51410-05245-126.

51410-05280-291

1
Out of stock

23

OUTER RACE

51621-33001

1
Out of stock

24

NO DESCRIPTION AVAILABLE This part replaces 51311-05245.

51311-26505-291

1
Out of stock

25

WASHER

51356-22012

1
Out of stock

26

NO DESCRIPTION AVAILABLE This part replaces 51352-48000.

51352-13600

1
Out of stock

27

BOLT This part replaces 01107-10408.

01500-10407

2
Out of stock

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

29

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

30

CLIP

51455-05240

1
Out of stock

31

HOLDER, HANDLE

56211-27100

2
Out of stock

32

BOLT

01204-08357

4
Out of stock

33

4

$2.28

In stock

34

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

35

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

36

CLIP

51452-05240

1
Out of stock

37

CLIP

51452-48500

1
Out of stock

38

WASHER This part replaces 08322-21067.

08322-01067

1
Out of stock

39

1

$2.28

In stock

40

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

41

CLIP

51452-46040

1
Out of stock

42

1

$2.28

In stock

43

1

$1.34

In stock

44

RACE, INNER LOWER

51611-33002

1
Out of stock

45

BALL, LOWER

06111-08003

18
Out of stock

46

RACE,STEERING INNER UPPER

51611-20002

1
Out of stock

47

BALL, UPPER

06111-06003

22
Out of stock

48

RACE,STEERING OUTER UPPER

51621-28000

1
Out of stock

49

DUST SEAL,STEERING UPPER

51643-25001

1
Out of stock

50

NUT, STEERING STEM

51631-28000

1
Out of stock
