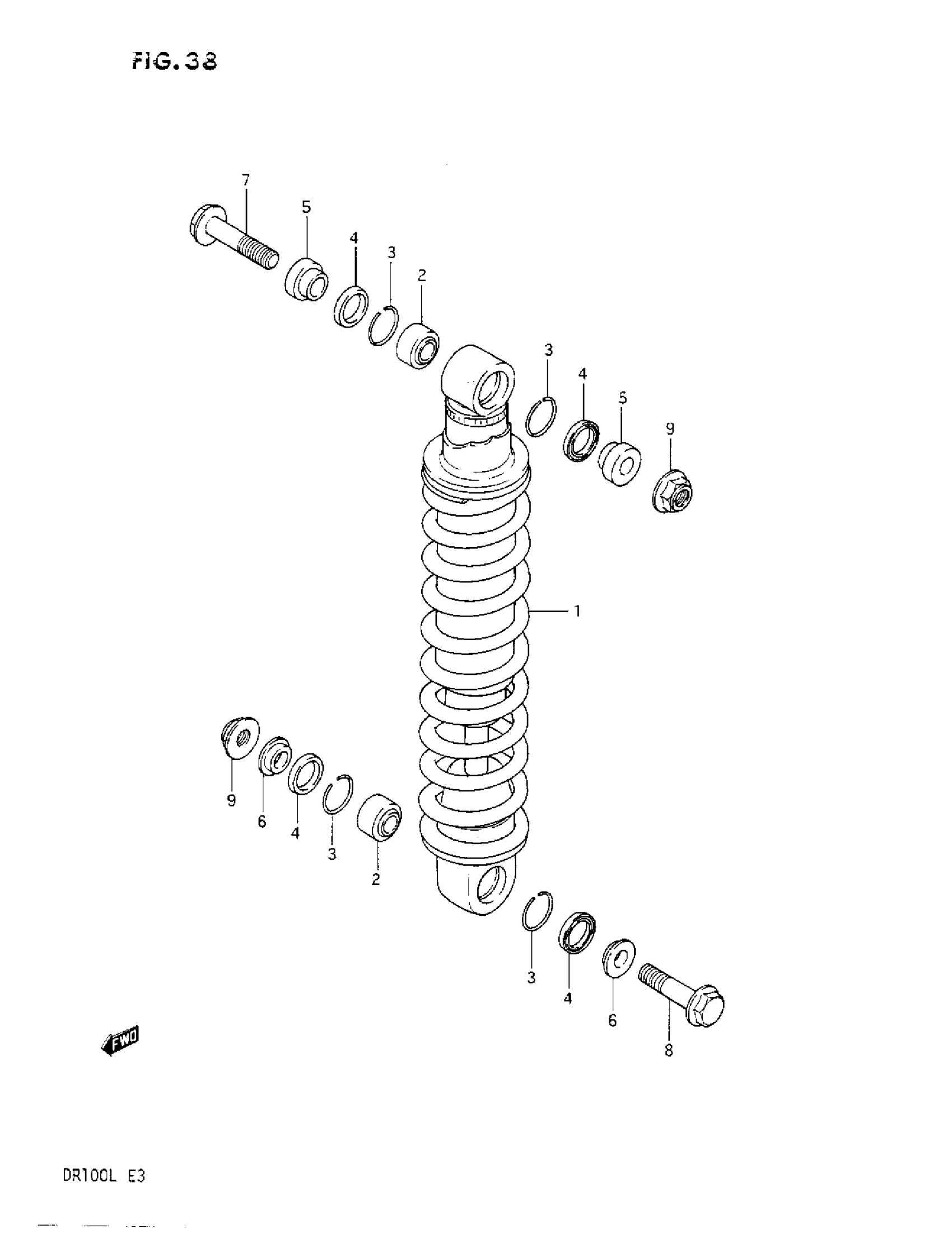

Suzuki DR100 (1987) SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL F/G/H This part replaces 62100-05260-19F.

62100-05260-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL J/K This part replaces 62100-05260-34S.

62100-05260-163

Unavailable

1

ABSORBER ASSY, REAR SHOCK (YELLOW) | MODEL L

62100-05260-163

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 62175-20920.

62175-00B00

$80.80

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$2.06

4

DUST SEAL

62226-20900

$14.73

5

COLLAR, UPPER

62684-43510

Unavailable

6

COLLAR, LOWER

62684-20900

$13.72

7

BOLT, UPPER

09103-10058

Unavailable

8

BOLT, LOWER

09103-10045

Unavailable

9

NUT

08319-31107

$2.80
