2017 Suzuki DR-Z70L7 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2017 Suzuki DR-Z70L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

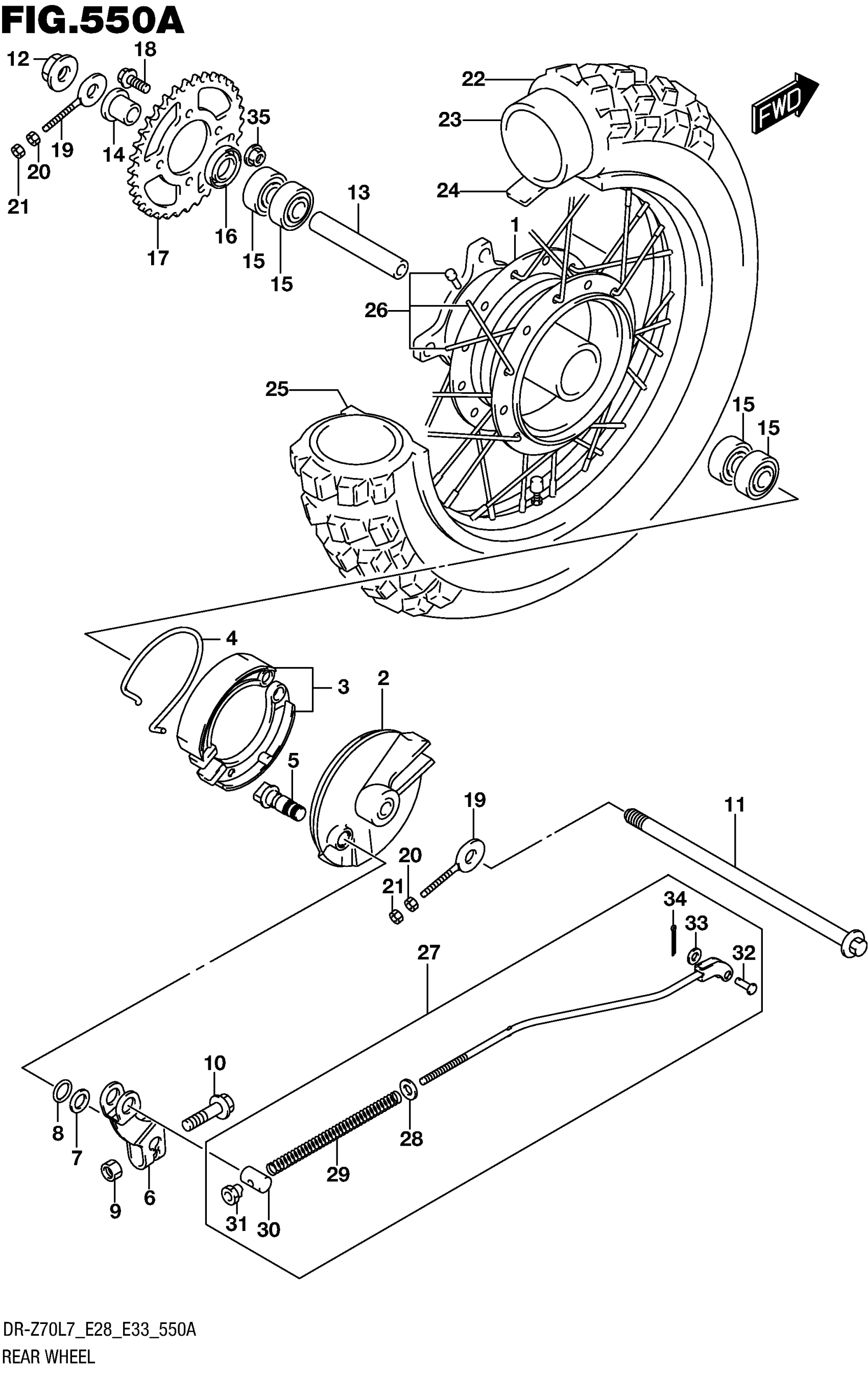

2017 Suzuki DR-Z70L7 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, REAR HUB

64110-14H00

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR

54210-14H00

1
Out of stock

3

SHOE SET, BRAKE

54400-14870

1
Out of stock

4

SPRING,BRAKE SHOE

54424-14H00

1
Out of stock

5

SHAFT, BRAKE CAM

54440-14H00

1
Out of stock

6

LEVER, REAR BRAKE CAM

54451-14H00

1
Out of stock

7

WASHER (10.5X18X1)

09160-10121

1
Out of stock

8

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

1
Out of stock

9

NUT

08310-0005A

1
Out of stock

10

BOLT

01550-0525A

1
Out of stock

11

AXLE, REAR

64711-14H00

1
Out of stock

12

NUT

08319-3112A

1
Out of stock

13

SPACER (12.5X19X105.5)

64731-14H00

1
Out of stock

14

SPACER, REAR AXLE LH

64751-14H00

1
Out of stock

15

BEARING

08133-62017

4
Out of stock

16

OIL SEAL (32X20X5)

09282-20008

1
Out of stock

17

SPROCKET, REAR (NT:33)

64511-14H00

1
Out of stock

18

BOLT (8X28)

09103-08359

4
Out of stock

19

ADJUSTER, CHAIN

61411-14H00

2
Out of stock

20

NUT

09140-06030

2
Out of stock

21

NUT

08310-0006A

2
Out of stock

22

TIRE, REAR | IX07S

55100-14H00

1
Out of stock

22

(2.50-10 33J) | IRC

55100-14H00

1
Out of stock

23

TUBE ASSY,WHEEL INNER This part replaces 55200-14H00.

55200-14H01

1
Out of stock

24

PROTECTOR, INNER TUBE

55261-14H10

1
Out of stock

25

RIM, WHEEL (10X1.40)

55311-14H00

1
Out of stock

26

SPOKE SET, REAR WHEEL

55320-14H00

1
Out of stock

27

ROD ASSY, REAR BRAKE

43300-14H00

1
Out of stock

28

.WASHER

08322-0106A

1
Out of stock

29

.SPRING

09440-09004

1
Out of stock

30

.PIN (11X18)

09209-11002

1
Out of stock

31

.NUT

09150-06010

1
Out of stock

32

.PIN (10X16)

09200-06013

1
Out of stock

33

.WASHER

08322-0106A

1
Out of stock

34

.COTTER PIN

04111-2020A

1
Out of stock

35

NUT

08319-3108A

4
Out of stock
