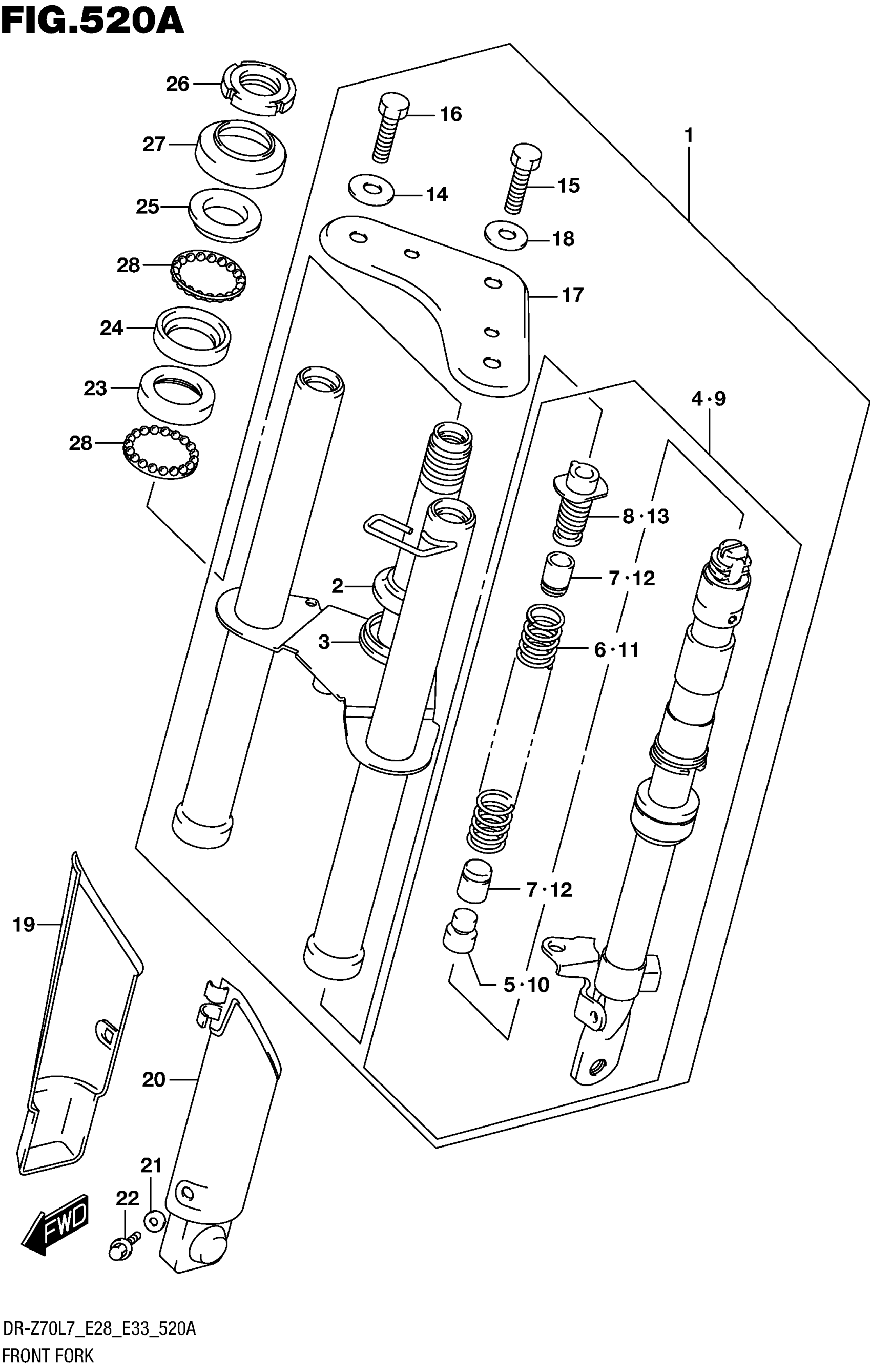

Suzuki DR-Z70L7 (2017) FRONT FORK Diagram

#

Description
Price

1

FORK SET,FRONT This part replaces 51100-14821.

51100-14831

$1,053.88

2

.RACE, STEERING OUTER

51622-14H00

Unavailable

3

.SEAL,STEERING LWR This part replaces 51644-14H00.

51644-14H01

$8.53

4

.TUBE ASSY, FRONT FORK LOWER

51110-14H00

$472.48

4

RH

51110-14H00

$472.48

5

..STOPPER

51116-14H00

$11.55

6

..SPRING

51171-14H00

Unavailable

7

..STOPPER RUBBER

51292-14H00

$12.02

8

..SPRING, JOINT B

51422-14H00

Unavailable

9

.TUBE ASSY, FRONT FORK LOWER

51120-14H00

$428.98

9

LH

51120-14H00

$428.98

10

..STOPPER

51116-14H00

$11.55

11

..SPRING

51171-14H00

Unavailable

12

..STOPPER RUBBER

51292-14H00

$12.02

13

..SPRING, JOINT B

51422-14H00

Unavailable

14

WASHER (10X30X2.5)

09160-10144

$5.75

15

.BOLT | CENTER

01550-1035A

$3.25

16

.BOLT | SIDE

01550-1035A

$3.25

17

.BRACKET, UPPER

51310-14H00

$73.33

18

.WASHER (10.5X25X3.2)

09160-10128-XC0

$2.64

19

PROTECTOR, FRONT FORK RH

51501-14H00-019

$21.62

19

(BLACK)

51501-14H00-019

$21.62

20

PROTECTOR, FRONT FORK LH

51511-14H00-019

$21.62

20

(BLACK)

51511-14H00-019

$21.62

21

WASHER

09169-06071

$2.50

22

BOLT

01547-0612A

$2.01

23

RACE, STEERING INNER LOWER

51611-14H00

$14.65

24

RACE,STEERING INNER UPPER

51611-20002

$13.50

25

RACE,STEERING OUTER UPPER

51621-28000

$13.50

26

NUT, STEERING STEM

51631-28000

$19.60

27

DUST SEAL,STEERING UPPER

51643-25001

$4.17

28

BEARING,27X40.5X5 (27X40.5X5)

09269-27001

$16.65
