2017 Suzuki DR-Z70L7 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2017 Suzuki DR-Z70L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

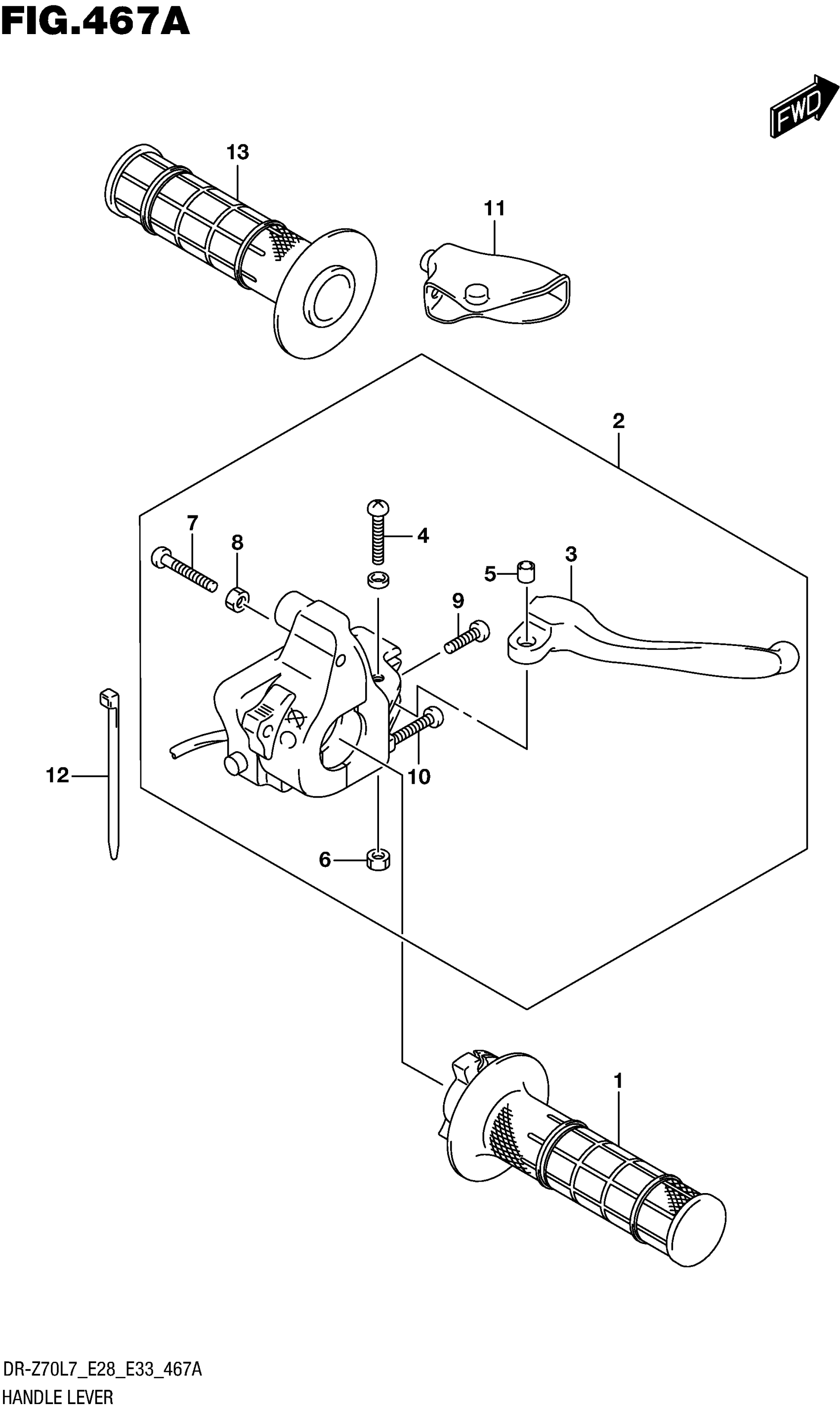

2017 Suzuki DR-Z70L7 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-14H00

1

$51.20

In stock

3

.LEVER

57421-14H00

1

$43.63

In stock

4

.SCREW

02112-0525A

1

$1.55

In stock

5

.SPACER

57435-12900

1

$2.58

In stock

6

.NUT

08319-2105A

1
Out of stock

7

.SCREW

02112-0525A

1

$1.55

In stock

8

NUT

08310-0005A

1
Out of stock

9

.SCREW

02112-0516A

1
Out of stock

10

1

$2.42

In stock

11

1

$12.32

In stock

12

CLAMP (L:95)

09407-11401

1
Out of stock

13

GRIP, LH

57211-14H00

1

$20.45

In stock
