2013 Suzuki DR-Z400SML3 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2013 Suzuki DR-Z400SML3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

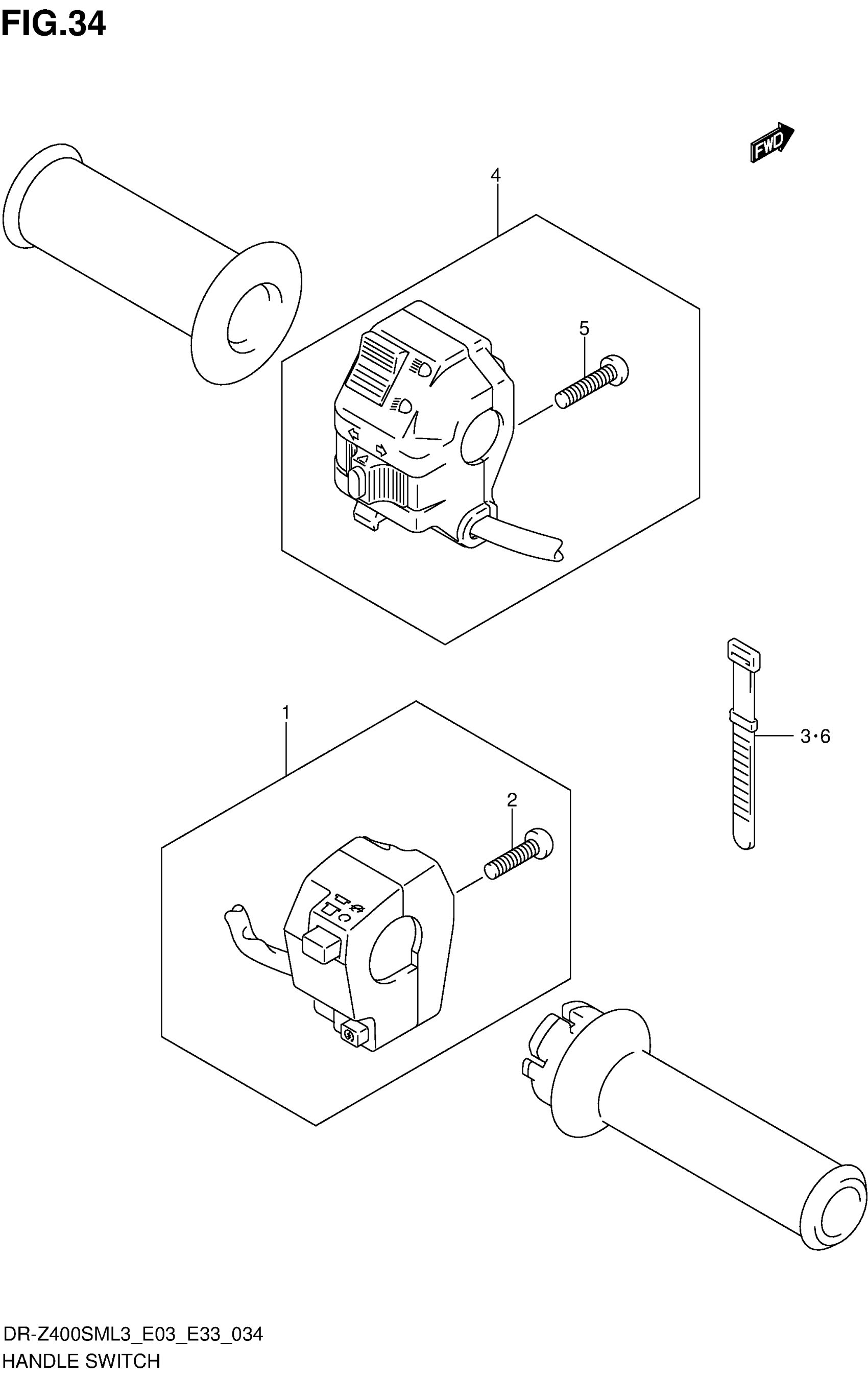

2013 Suzuki DR-Z400SML3 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

SCREW

02112-0525B

2
Out of stock

3

CLAMP (L:120)

09407-12402

1
Out of stock

4

SWITCH ASSY,HAN This part replaces 37400-29F51.

37400-29F52

1
Out of stock

5

SCREW

02112-0530B

2
Out of stock

6

CLAMP (L:120)

09407-12402

1
Out of stock
