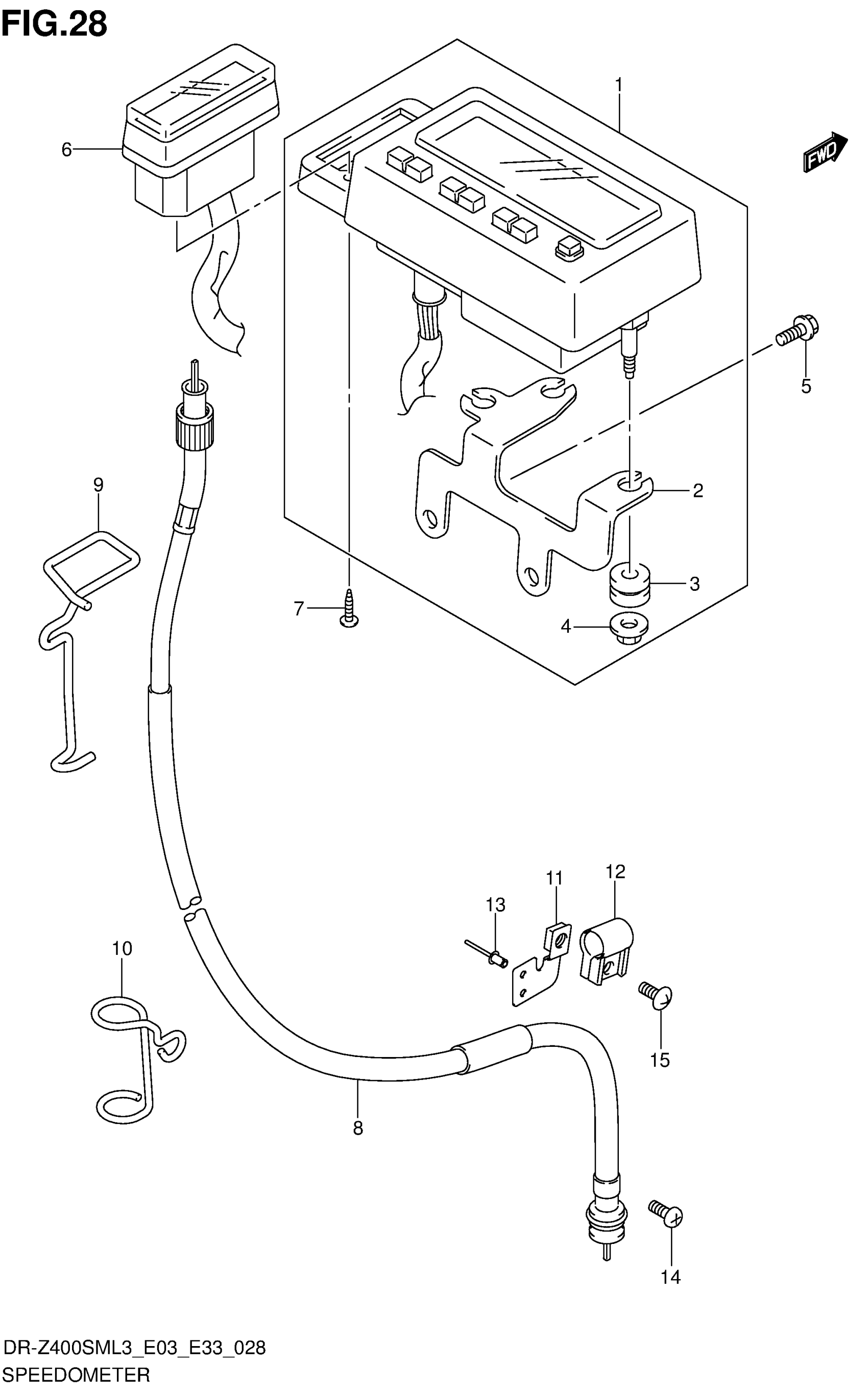

Suzuki DR-Z400SML3 (2013) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY This part replaces 34100-29F40.

34100-29F41

$1,184.03

2

BRACKET

34950-29F00

$54.60

3

.CUSHION

34996-43410

$4.92

4

NUT

08316-1005A

$2.19

5

BOLT

01550-0616A

$1.97

6

BOX ASSY, PILOT LAMP

36380-29F00

$319.60

7

SCREW

03511-0420B

$2.44

8

CABLE ASSY, SPEEDOMETER

34910-29F20

$38.90

9

GUIDE, SPEEDOMETER CABLE NO.3

34938-29F10

$16.35

10

GUIDE, METER CABLE NO.1

34938-29F20

$11.18

11

GUIDE, METER CABLE NO.2

34938-29F30

$7.95

12

CLAMP BRAKE HOSE

58621-07A20

$3.83

13

RIVET

09229-03011

$4.48

14

SCREW

02112-0516B

$1.95

15

SCREW

02142-0512B

$1.90
