2013 Suzuki DR-Z400SML3 Battery Diagram

← All diagrams

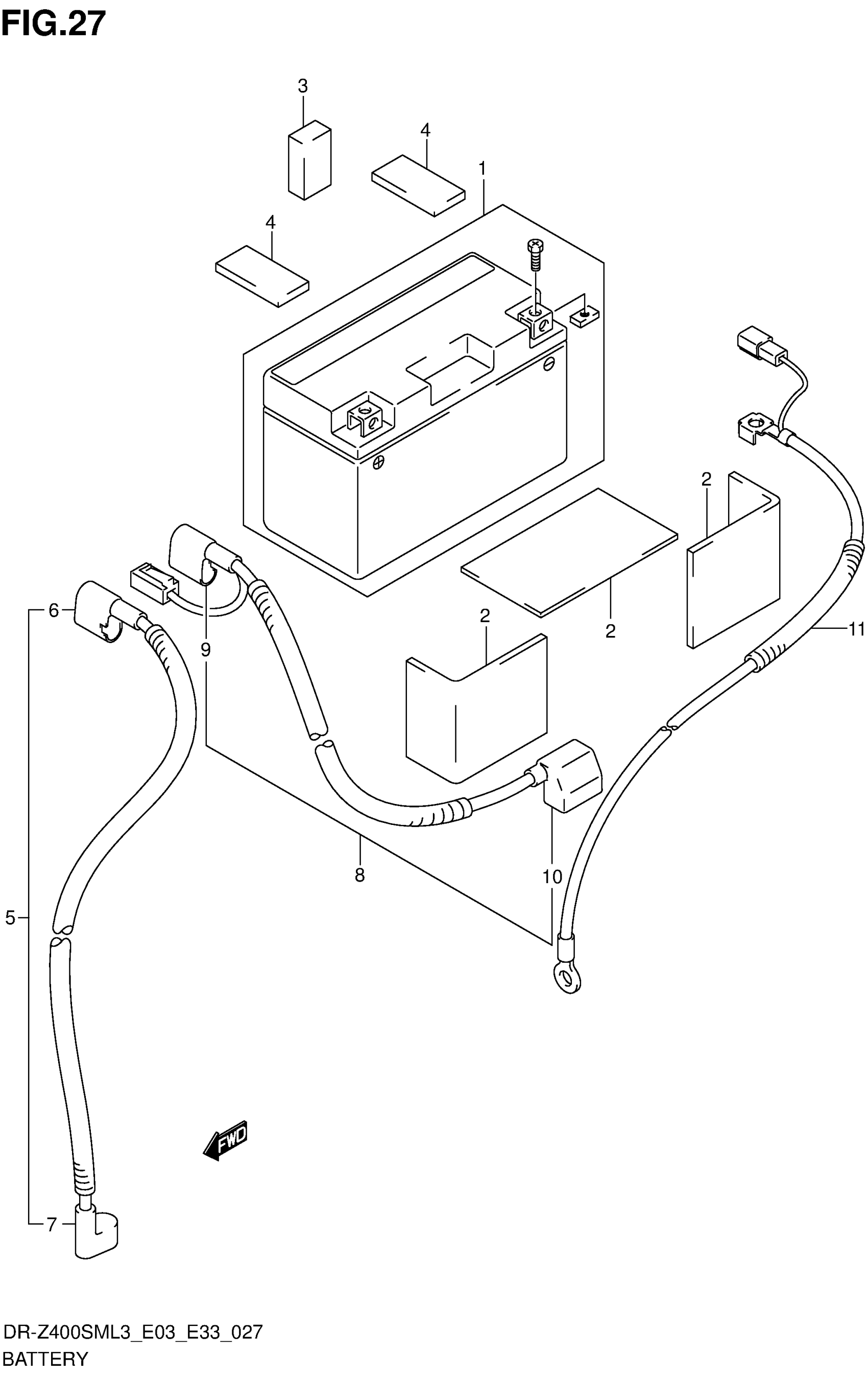

Find the part on the Battery diagram for your 2013 Suzuki DR-Z400SML3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki DR-Z400SML3 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,6AH) | XT7B-BS

33610-29F20

1
Out of stock

2

PROTECTOR, BATTERY (170X95X3) | CUT AS REQUIRED

33651-37000

3
Out of stock

3

CUSHION, REAR FENDER REAR | CUT AS REQUIRED This part replaces 33652-08420.

33651-37000

1
Out of stock

4

PROTECTOR, BATTERY (50X42X2) | CUT AS REQUIRED

51553-15D40

2
Out of stock

5

WIRE, STARTER MOTOR LEAD

33810-29F00

1
Out of stock

6

CAP, STARTER RELAY

31861-29F00

1
Out of stock

7

CAP, STARTER MOTOR

31861-29F20

1
Out of stock

8

WIRE, BATTERY PLUS LEAD

33820-29F00

1
Out of stock

9

CAP, STARTER RELAY

31861-29F10

1
Out of stock

10

CAP, BATTERY PLUS

33624-29F00

1
Out of stock

11

WIRE, BATTERY MINUS LEAD

33860-29F00

1
Out of stock
