2008 Suzuki DR-Z400SM Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2008 Suzuki DR-Z400SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

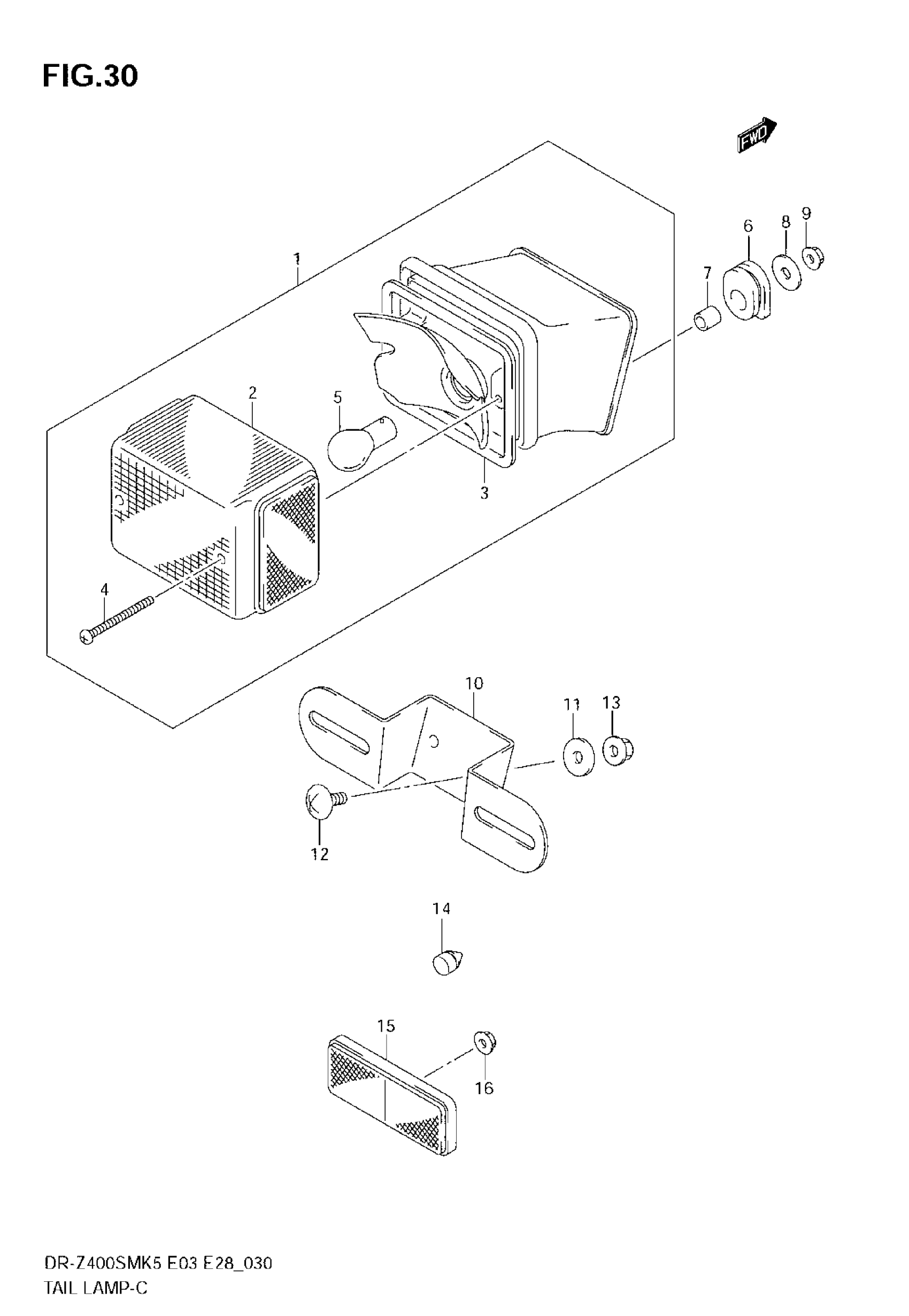

2008 Suzuki DR-Z400SM Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$114.89

In stock

2

LENS

35712-42A30

1

$68.03

In stock

3

.GASKET LENS

35713-14D30

1

$8.91

In stock

4

SCREW (4X45)

09125-04501

2

$3.13

In stock

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

6

CUSHION REAR COMB

35781-29F00

2

$7.30

In stock

7

SPACER (6.5X10X10)

09180-06310

2
Out of stock

8

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

9

NUT

08316-1006B

2
Out of stock

10

1

$18.13

In stock

11

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

12

SCREW

02142-0616B

2
Out of stock

13

NUT

08316-1006B

2
Out of stock

14

CUSHION This part replaces 09321-06013.

09321-06036

2
Out of stock

15

REFLEX REFLECTOR ASSY, REAR

35970-07F01

1
Out of stock

16

NUT

08316-1005B

1
Out of stock
