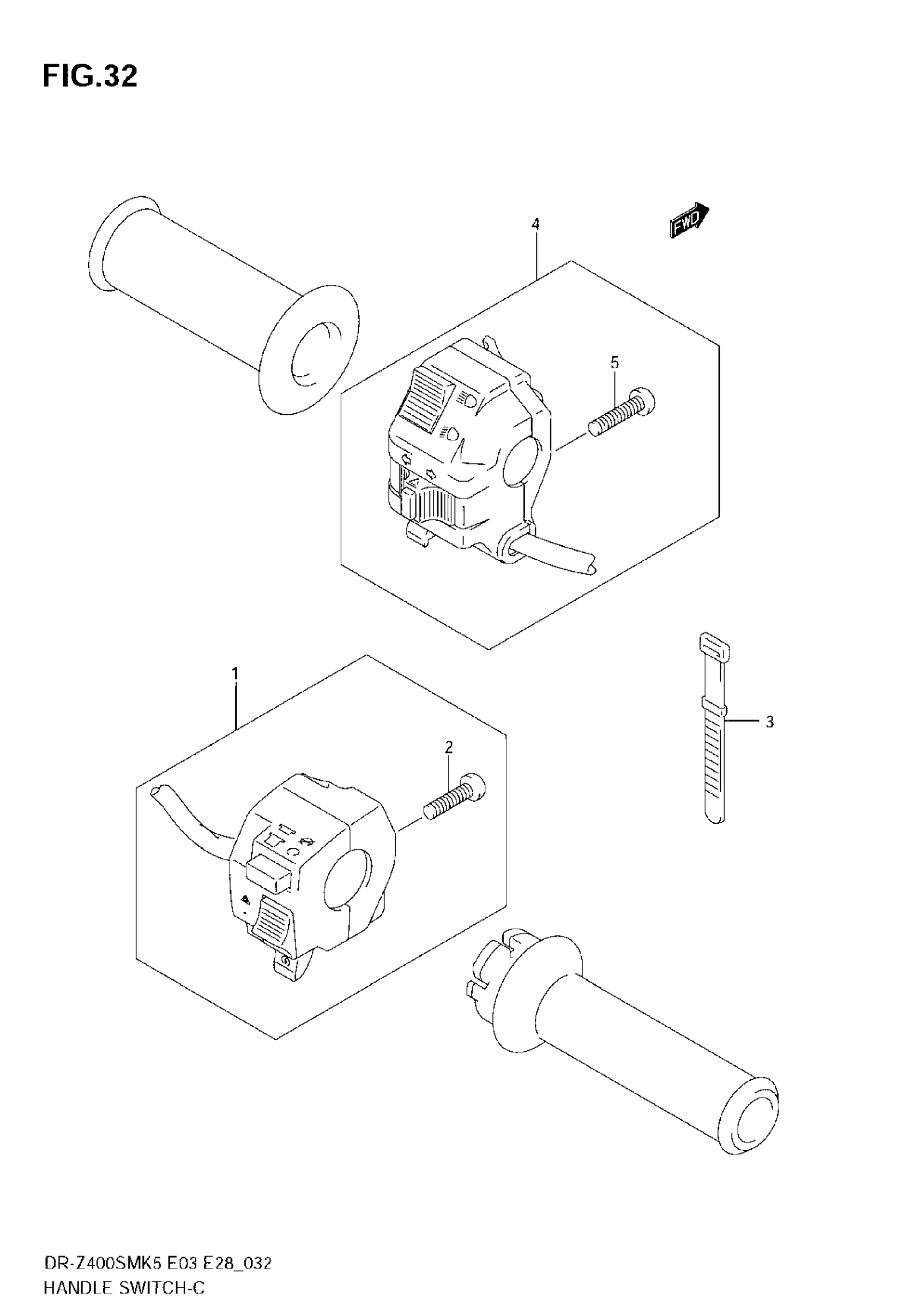

Suzuki DR-Z400SM (2008) HANDLE SWITCH (MODEL K5/K6) Diagram

#

Description

Price

1

SWITCH ASSY,HAN | Includes Item(s) 2 This part replaces 37200-29F00.

37200-29F01

$110.50

2

SCREW This part replaces 02112-04253.

02112-0425B

$2.37

3

CLAMP

09407-12402

$2.80

4

SWITCH ASSY,HAN | Includes Item(s) 5 This part replaces 37400-15D20.

37400-15D21

$140.28

5

SCREW This part replaces 02112-05303.

02112-0530A

$1.93
