2008 Suzuki DR-Z400SM Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2008 Suzuki DR-Z400SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

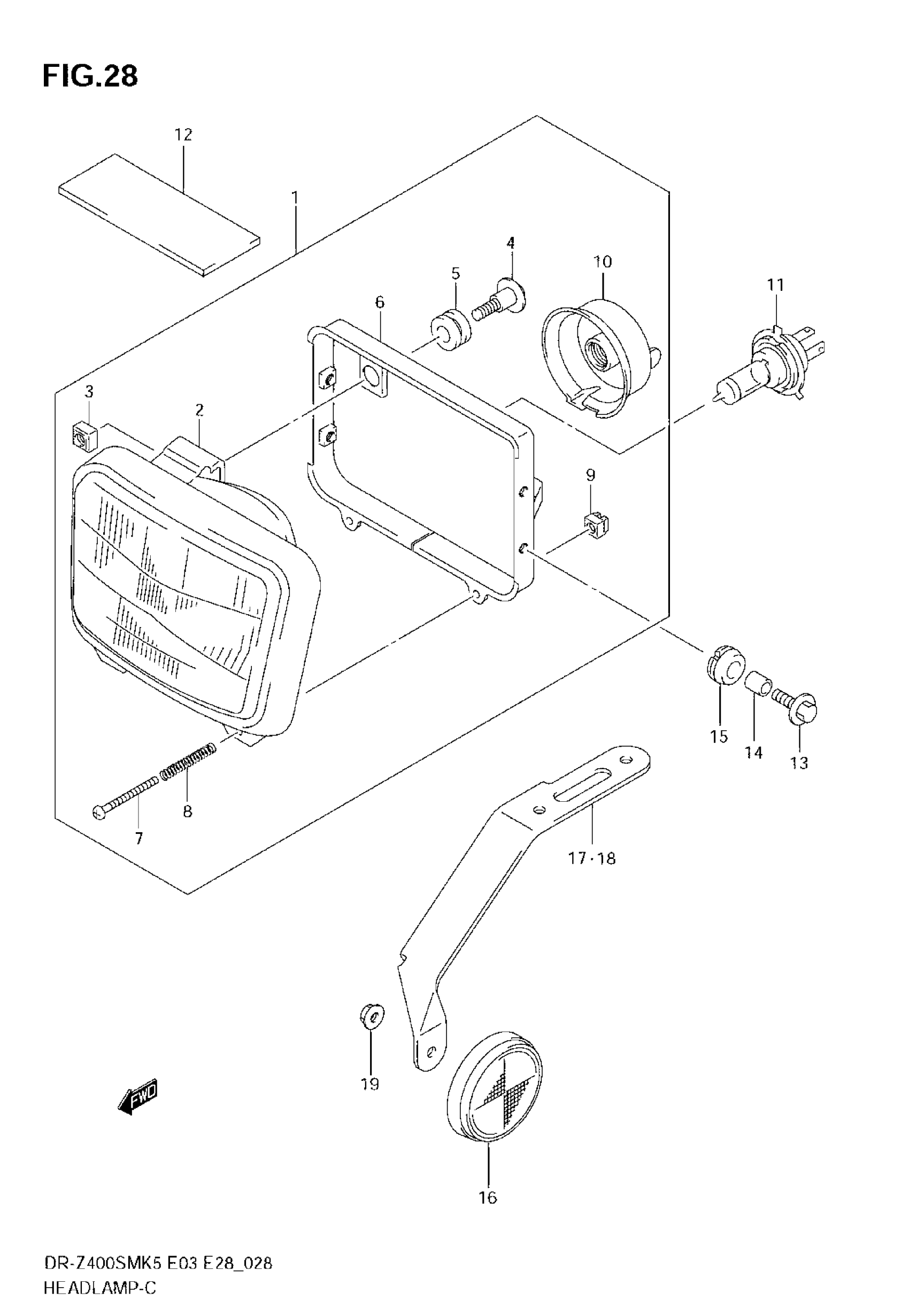

2008 Suzuki DR-Z400SM Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$494.00

In stock

2

UNIT ASSY

35121-12EA0

1

$177.30

In stock

3

NUT

35135-45900

1

$3.67

In stock

4

.SCREW MOUNTING

35136-38A00

1

$4.53

In stock

5

CUSHION

35139-45230

1
Out of stock

6

HOUSING

35141-12EA0

1

$126.22

In stock

7

.SCREW ADJUSTING

35151-12EA0

2

$7.03

In stock

8

.SPRING ADJUSTING

35154-12EA0

2

$7.82

In stock

9

.NUT ADJUSTING

35135-12E20

2

$4.20

In stock

10

.COVER SOCKET

35173-01440

1

$19.60

In stock

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

1
Out of stock

12

CUSHION, HEADLAMP

36920-14D00

1
Out of stock

13

BOLT (6X20)

09116-06167

4
Out of stock

14

SPACER (6.5X10X10)

09180-06310

4
Out of stock

15

CUSHION

09320-09018

4
Out of stock

16

REFLEX REFLECTOR ASSY, FRONT

35950-14A00

2
Out of stock

17

1

$15.80

In stock

18

1

$15.50

In stock

19

NUT

08316-1005B

2
Out of stock
