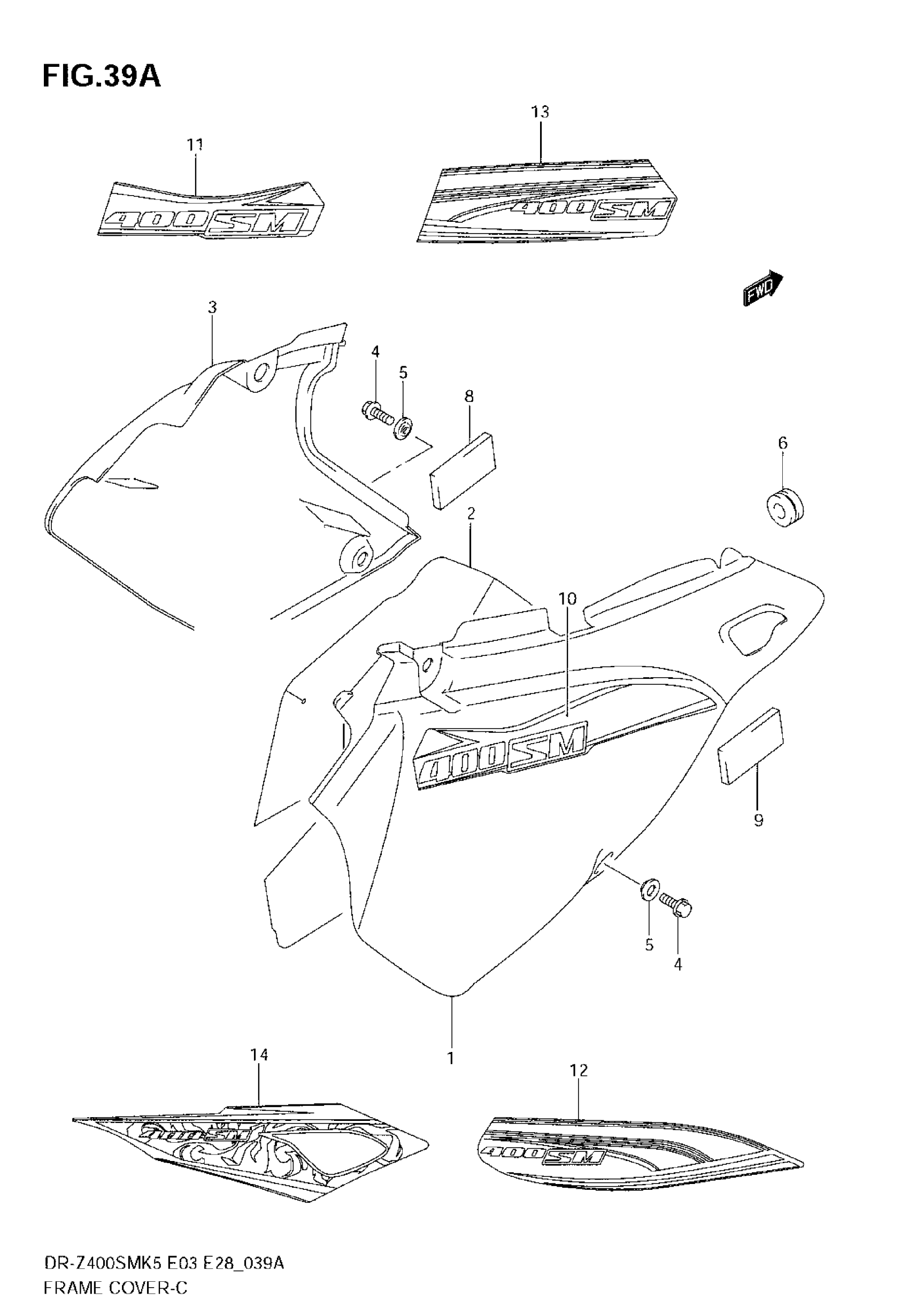

Suzuki DR-Z400SM (2008) FRAME COVER (MODEL K7/K8) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR 019

47111-29FC0-019

$121.18

1

COVER, FRAME RH (WHITE) | FOR YU1,N9J,30H

47111-29FC0-30H

$64.47

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (BLACK) | E3,E28 FOR 019

47211-29FA0-019

$90.33

3

COVER, FRAME LH (WHITE) | E3,E28 FOR YU1,N9J

47211-29FA0-30H

$64.78

3

COVER, FRAME LH (BLACK) | E33 FOR 019

47211-29FC0-019

$93.40

3

COVER, FRAME LH (WHITE) | E33 FOR YU1,N9J,30H

47211-29FC0-30H

$93.40

4

BOLT (6X12)

09103-06273

$2.24

5

WASHER This part replaces 09169-06028.

09169-06041

$1.97

6

CUSHION, RH

09320-06504

$4.47

7

CUSHION, MUFFLER

09321-10018

$4.19

8

CUSHION, LH COVER FRONT

47161-29F00

$8.12

9

CUSHION, RH COVER FRONT

71762-65G10

$9.35

10

TAPE SET, RH | MODEL K7 FOR YU1

68135-29F20-DVP

Unavailable

11

TAPE SET, LH | MODEL K7 FOR YU1

68145-29F20-DVP

Unavailable

12

TAPE, RH | MODEL K7 FOR 019

68135-29F50-DVY

Unavailable

12

TAPE, RH | MODEL K7 FOR N9J

68135-29F50-DVZ

Unavailable

13

TAPE, LH | MODEL K7 FOR 019

68145-29F50-DVY

$35.30

13

TAPE, LH | MODEL K7 FOR N9J

68145-29F50-DVZ

Unavailable

14

TAPE, RH | MODEL K8 FOR 019

68135-29FC0-FCN

Unavailable

14

TAPE, RH | MODEL K8 FOR 30H

68135-29FB0-FCT

Unavailable
