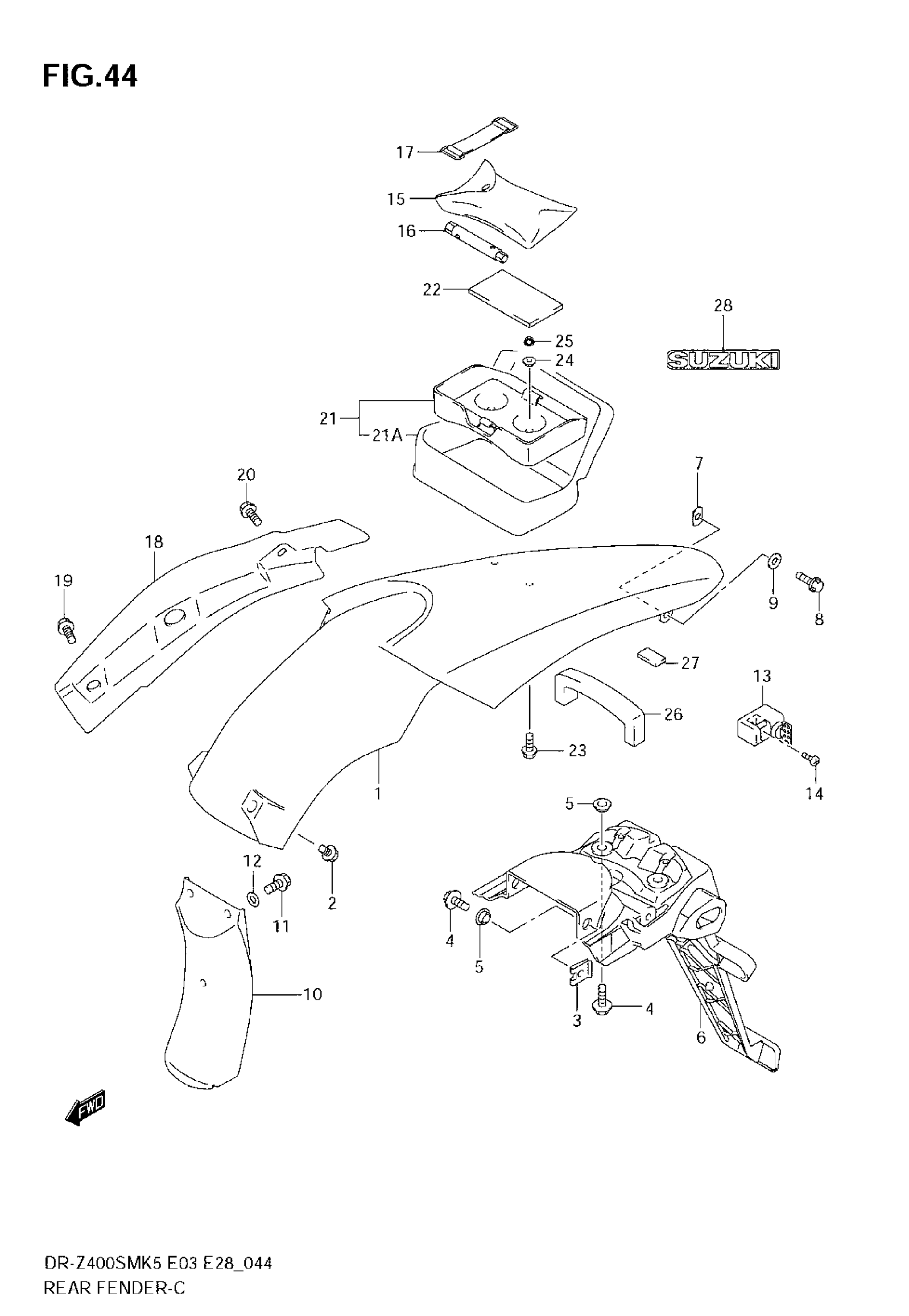

Suzuki DR-Z400SM (2008) REAR FENDER (MODEL K5/K6) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) This part replaces 63113-29F41-019.

63113-29FA0-019

$149.20

1

FENDER RR (YELLOW) This part replaces 63113-29F41-YU1.

63113-29FA0-YU1

$166.30

2

BOLT, FRONT

09113-06001

$2.75

3

PLATE, REAR FENDER FITTING This part replaces 63312-13E00.

63312-13E01

$5.64

4

BOLT

09116-06115

$1.97

5

WASHER

09169-06073

$3.08

6

EXTENSION, REAR FENDER This part replaces 63311-29FA0.

63311-29FA1

$104.63

7

NUT COWL

94484-24F00

$3.63

8

BOLT

01550-0512B

$3.12

9

WASHER This part replaces 09169-05021.

09169-05024

$2.07

10

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

11

BOLT

01547-0616B

$2.43

12

WASHER This part replaces 09169-06045.

09169-06055

$2.02

13

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

$171.60

14

SCREW

09139-06089

$3.30

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$97.82

16

SPANNER, BOX 8X10

09816-00186

$18.60

17

BAND, TOOL

09462-00008

$4.36

18

MUDGUARD, REAR FENDER RH

63114-29F00

$41.41

19

BOLT, LOWER

09111-06081

$3.85

20

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

21

BAG, SEAT TAIL | Includes Item(s) 21A

94900-29FB1

$188.18

21A

BAG

94910-29FB0

$117.60

22

CUSHION

94915-44E00

$14.27

23

BOLT

01550-0620B

$2.38

24

WASHER

09169-06063

$3.08

25

NUT

09159-06078

$2.64

26

CUSHION, FRONT

47161-29B00

$8.47

27

CUSHION, REAR

33651-37000

$4.09

28

EMBLEM SUZUKI (SILVER BLACK) | FOR 019 This part replaces 68721-13A00-CT5.

68721-13A01-CT5

$10.70

28

EMBLEM SUZUKI (YELLOW BLACK) | MODEL K5 FOR YU1 This part replaces 68721-13A00-GY8.

68721-13A01-GY8

$14.37

28

EMBLEM,"SUZUKI" | MODEL K6 FOR YU1 This part replaces 68721-13A00-CFL.

68721-13A01-CFL

Unavailable
