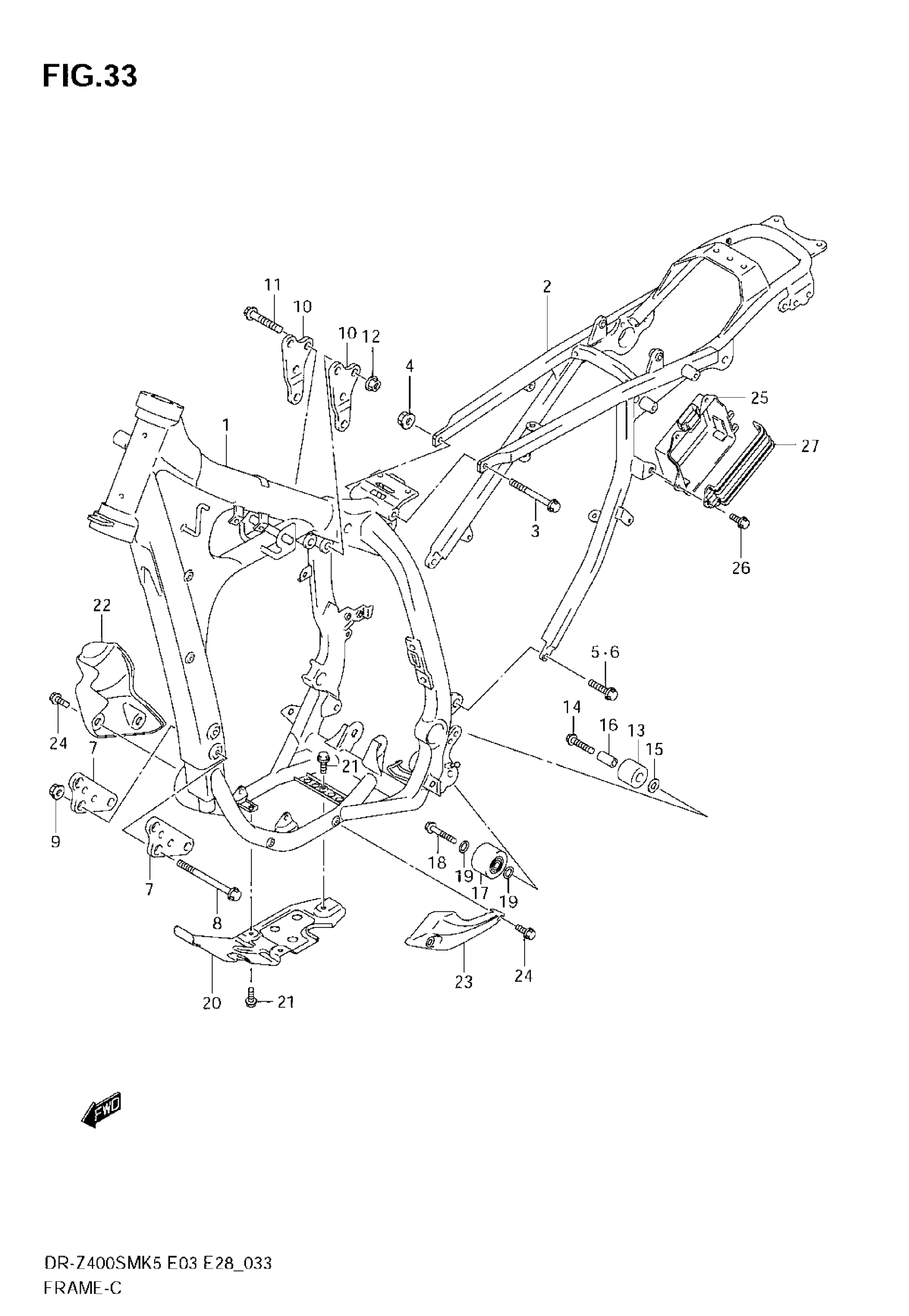

Suzuki DR-Z400SM (2008) FRAME Diagram

#

Description
Price

1

FRAME (GRAY) This part replaces 41100-29F30-YU8.

41100-29F32-YU8

Unavailable

2

RAIL, SEAT This part replaces 41200-29F60.

41200-29F70

$1,453.65

3

BOLT, UPPER

09103-08098

$4.20

4

NUT This part replaces 08319-31088.

08319-3108A

$2.31

5

BOLT, LH (8X16)

09104-08040

Unavailable

6

BOLT, RH

09104-08039

Unavailable

7

PLATE, ENGINE MOUNT FRONT

41911-29F00

Unavailable

8

BOLT

09103-08363

$9.78

9

NUT

08319-3108A

$2.31

10

PLATE, ENGINE MOUNT REAR

41993-29F10

$36.12

11

BOLT (8X50)

09103-08081

$4.03

12

NUT

08319-3108A

$2.31

13

ROLLER CHAIN CONTROL UPR

43911-13E00

$20.56

14

BOLT, UPPER

09103-08083

$3.38

15

WASHER

08211-08201

$2.06

16

SPACER

09180-08215

$3.84

17

ROLLER, CHAIN LOWER

43910-27C11

$72.98

18

BOLT (8X41)

09103-08083

$3.38

19

WASHER

09181-08111

$1.95

20

PROTECTOR, ENGINE

42510-29F00

$154.63

21

BOLT, CENTER

01550-0612B

$2.38

22

GUARD, WATER PUMP

42521-29F00

$23.50

23

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

24

BOLT

09111-08087

$2.79

25

HOLDER, BATTERY

41541-29F00

$76.43

26

BOLT

09111-06072

$2.01

27

BAND

41561-29F00

$19.30
