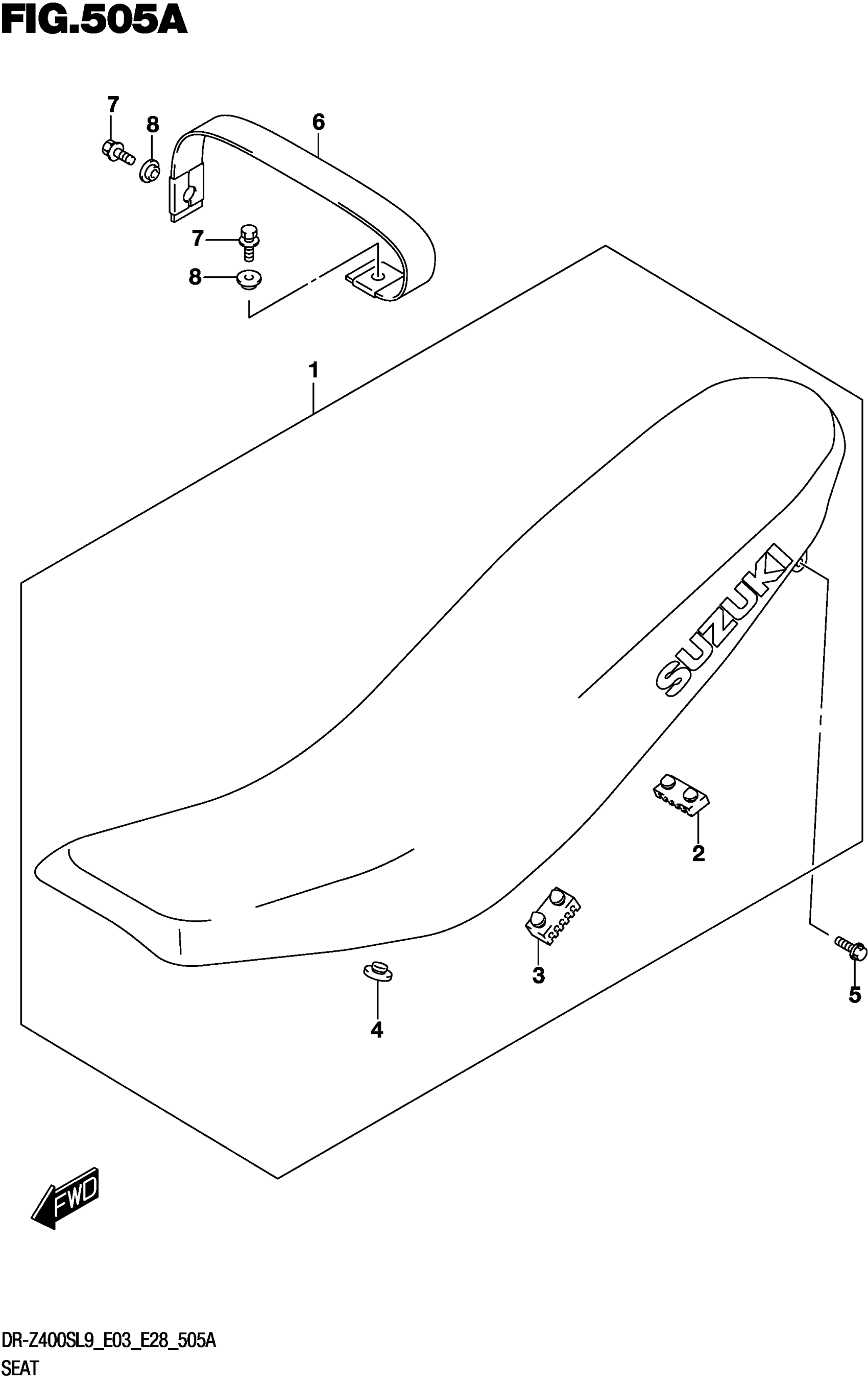

Suzuki DR-Z400SL9 (2019) SEAT Diagram

#

Description

Price

1

SEAT ASSY

45100-29FB0-BS2

$256.17

2

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

3

.CUSHION,SEAT (40X20X15)

45149-31300

$3.26

4

CUSHION

09321-10022

$2.37

5

BOLT (6X20)

09116-06182

$2.33

6

BAND ASSY, SEAT

45180-29F00-P21

Unavailable

7

BOLT (6X25)

09116-06150

$2.61

8

WASHER (6.3X17X6)

09169-06063

$3.08
