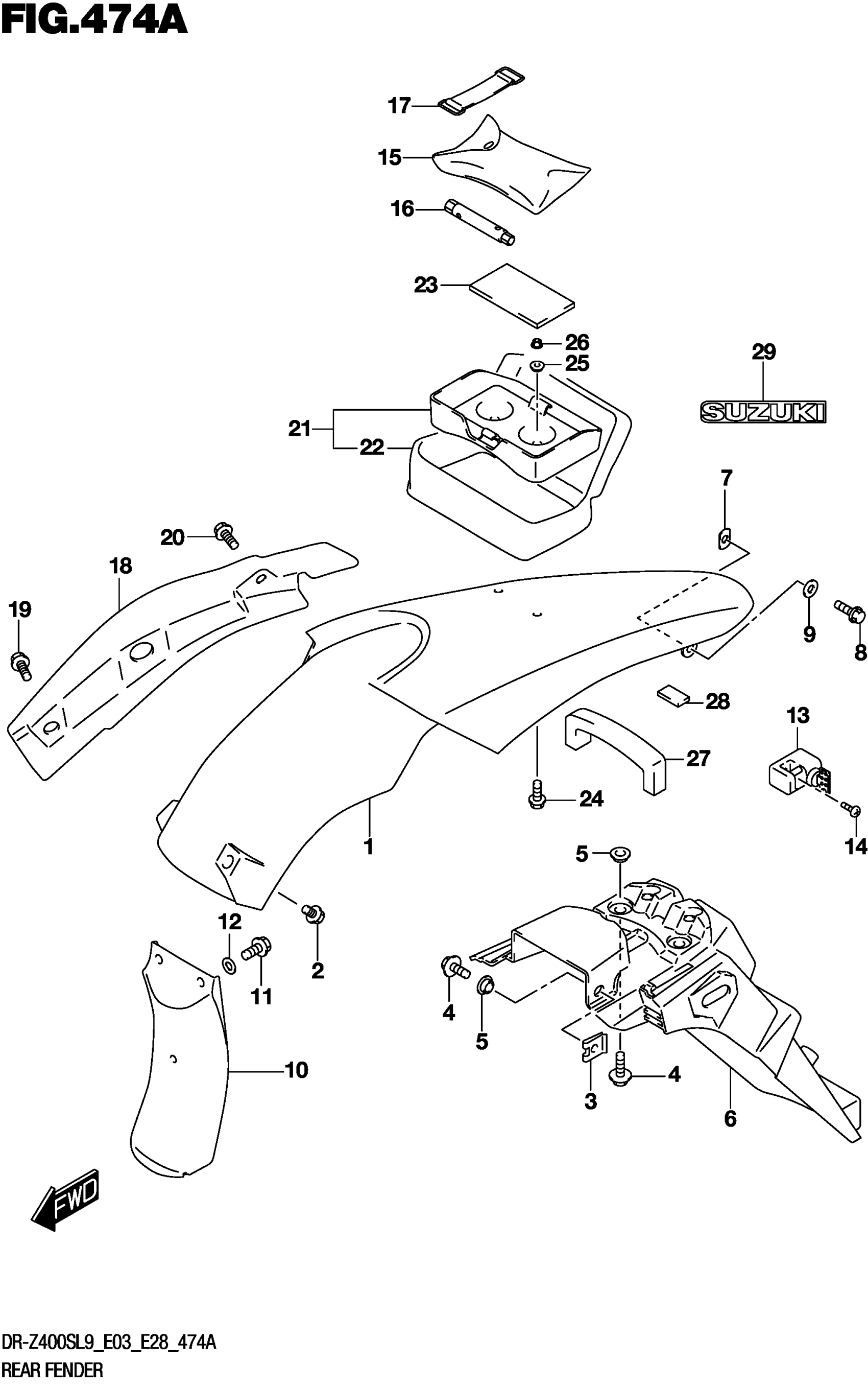

Suzuki DR-Z400SL9 (2019) REAR FENDER Diagram

#

Description
Price

1

FENDER REAR (WHITE)

63113-29FA0-30H

$154.93

2

BOLT (6X16)

09113-06001

$2.75

3

PLATE RR FENDER

63312-13E01

$5.64

4

BOLT (6X20)

09116-06115

$1.97

5

WASHER (6.1X17.0X4.8)

09169-06073

$3.08

6

EXTENSION REAR FENDER

63311-29F30

$108.08

7

NUT COWL

94484-24F00

$3.63

8

BOLT

01547-0512B

$3.32

9

WASHER

09169-05024

$2.07

10

MUDGUARD, RR FENDER FR

63411-29F00

$27.42

11

BOLT

01547-0616B

$2.43

12

WASHER This part replaces 09169-06045.

09169-06055

$2.02

13

LOCK SET HELMET

95700-41821

$171.60

14

SCREW (6X14)

09139-06089

$3.30

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$97.82

16

SPANNER BOX (8X10)

09816-00186

$18.60

17

BAND

09462-00008

$4.36

18

MUDGUARD RR FENDER R

63114-29F00

$41.41

19

BOLT (6X18) | LOWER

09111-06081

$3.85

20

BOLT (6X12) | UPPER

09111-06107

$2.66

21

BAG ASSY SEAT TAIL

94900-29FB1

$188.18

22

.BAG SEAT TAIL

94910-29FB0

$117.60

23

CUSHION RR BAG

94915-44E00

$14.27

24

BOLT

01550-0620B

$2.38

25

WASHER (6.3X17X6)

09169-06063

$3.08

26

NUT

09159-06078

$2.64

27

CUSHION

47161-29B00

$8.47

28

PROTECTOR (170X95X3.0)

33651-37000

$4.09

29

EMBLEM "SUZUKI" (WHITE/BLACK) This part replaces 68721-13A00-8YM.

68721-13A01-8YM

$10.50

29

EMBLEM "SUZUKI" (WHITE/BLACK) This part replaces 68721-13A00-8YM.

68721-13A01-8YM

$10.50
