2012 Suzuki DR-Z400SL2 Right Handle Lever Diagram

← All diagrams

Find the part on the Right Handle Lever diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

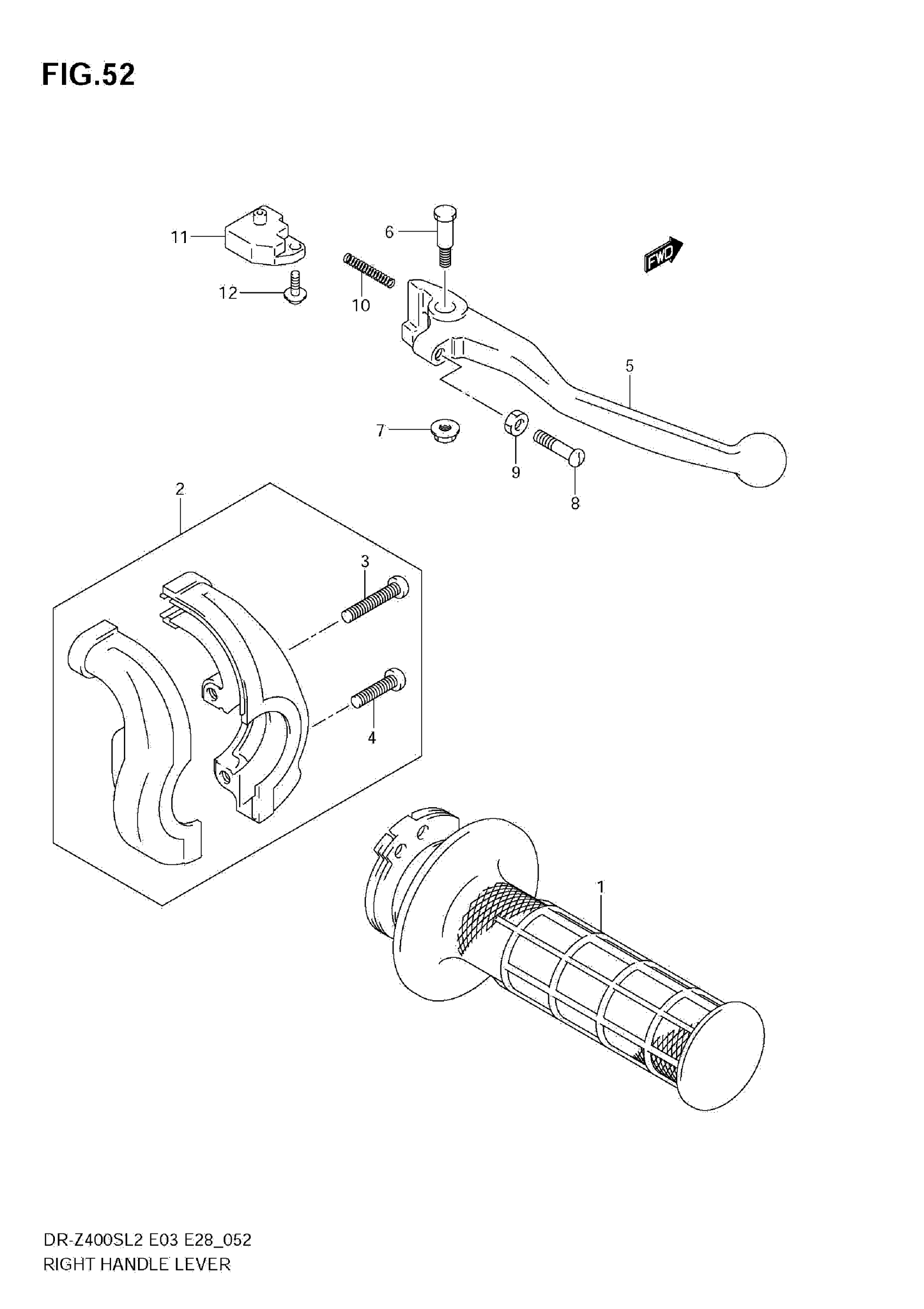

2012 Suzuki DR-Z400SL2 Right Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP THROTTLE

57110-12D11

1
Out of stock

2

CASE ASSY THROTTLE

57100-14D00

1
Out of stock

3

SCREW (5X25)

09125-05066

1
Out of stock

4

SCREW

02112-0520B

1
Out of stock

5

LEVER, BRAKE

57421-44E00

1
Out of stock

6

BOLT, BRAKE LEVER

57431-14500

1
Out of stock

7

NUT

08319-2106A

1
Out of stock

8

BOLT, ADJUST

57431-14511

1
Out of stock

9

NUT

08310-0005A

1
Out of stock

10

SPRING, RETURN

57318-14502

1
Out of stock

11

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

12

SCREW

57465-17C00

1
Out of stock
