2012 Suzuki DR-Z400SL2 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

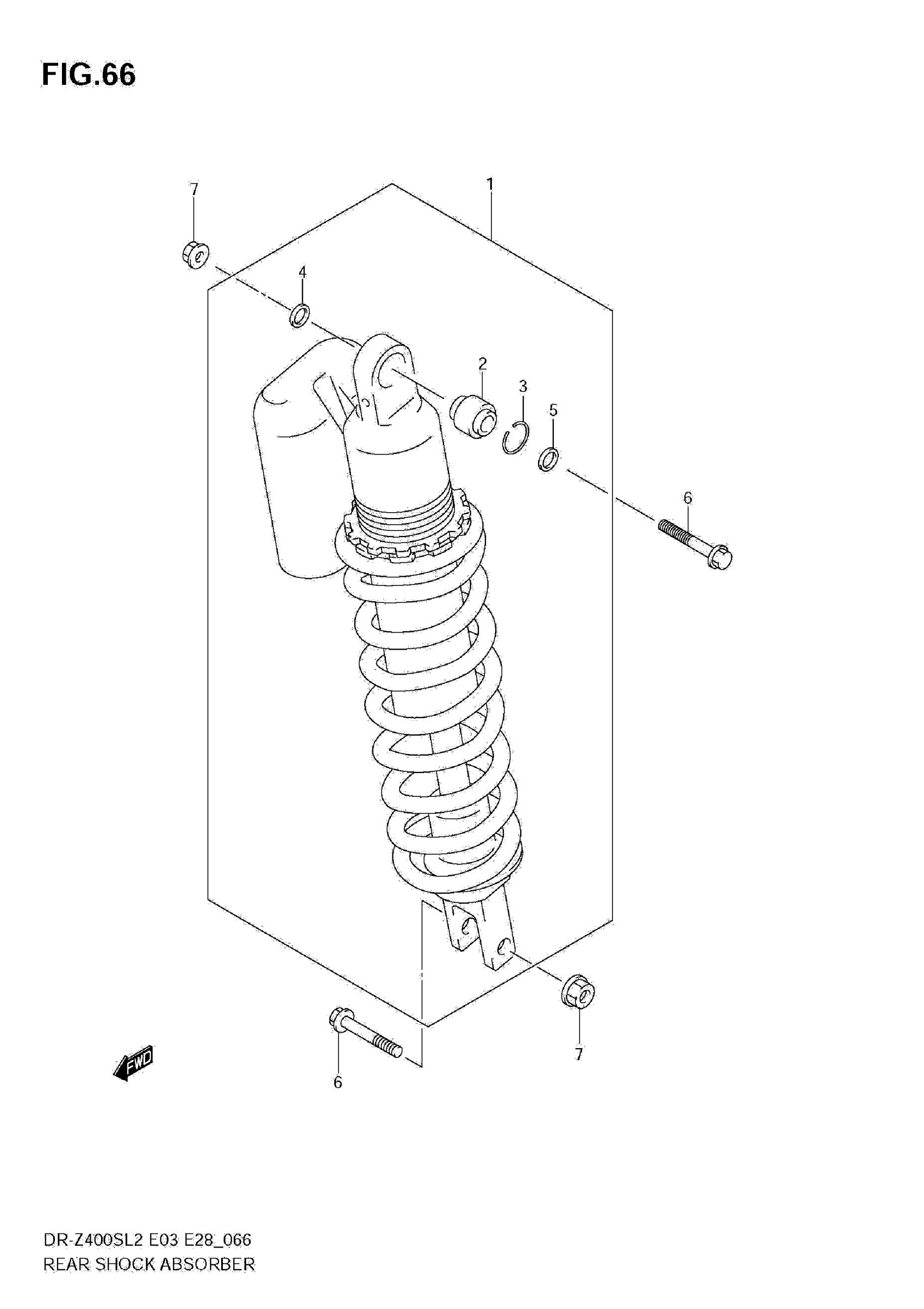

2012 Suzuki DR-Z400SL2 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK (WHITE)

62100-29F80-28W

—
Out of stock

2

1

$116.03

In stock

3

RING, STOPPER

62277-27C40

1

$4.47

In stock

4

SEAL, DUST UPPER RH

62226-36E00

1

$11.42

In stock

5

SEAL, DUST UPPER LH

62226-36E10

1

$11.63

In stock

6

BOLT (10X47.5)

09103-10149

2
Out of stock

7

NUT

09159-10115

2
Out of stock
