2012 Suzuki DR-Z400SL2 Rear Wheel Diagram

← All diagrams

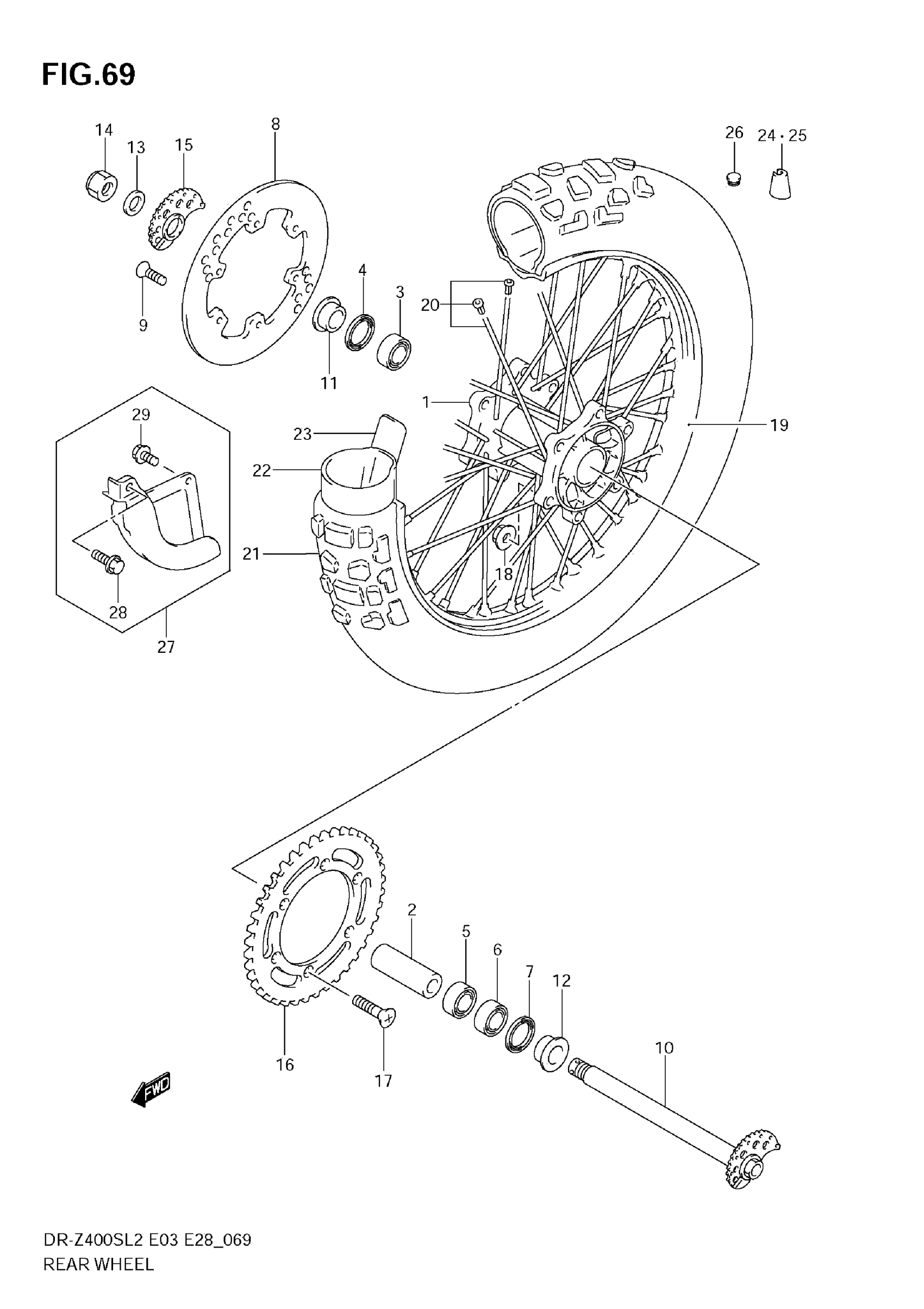

Find the part on the Rear Wheel diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z400SL2 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-29F10

1

$525.57

In stock

2

1

$35.88

In stock

3

BEARING

08133-60047

1
Out of stock

4

1

$7.86

In stock

5

BEARING

08133-60047

1
Out of stock

6

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

7

OIL SEAL (29X47X6)

09283-29006

1

$11.17

In stock

8

DISC, REAR BRAKE

69211-43D00

1

$333.07

In stock

9

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

6
Out of stock

10

AXLE, REAR

64710-29F00

1

$164.12

In stock

11

SPACER, RH

64751-28E20

1

$27.23

In stock

12

SPACER, LH

64751-28E20

1

$27.23

In stock

13

WASHER (19X32X3.2)

09160-19022

1

$4.74

In stock

14

NUT

08319-2118A

1

$4.74

In stock

15

ADJUSTER, CHAIN RH

61410-29F00

1

$29.98

In stock

16

1

$75.17

In stock

17

SCREW (8X30.5)

09120-08010

6
Out of stock

18

NUT

08319-3108A

6
Out of stock

19

RIM, REAR WHEEL (2.15X18)

65311-29F00

1
Out of stock

20

SPOKE SET, REAR WHEEL

65320-29F00

1

$123.42

In stock

21

1

$319.15

In stock

22

1

$85.57

In stock

23

PROTECTOR, INNER TUBE

65261-14E01

1

$9.25

In stock

24

BALANCER, WHEEL NO.1

55412-41F00

1
Out of stock

25

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock

26

CAP

09250-08013

1

$2.92

In stock

27

COVER, REAR DISC

69200-28C00

1

$28.35

In stock

28

BOLT

01550-0620B

1
Out of stock

29

BOLT

01550-0612B

1
Out of stock
