2012 Suzuki DR-Z400SL2 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

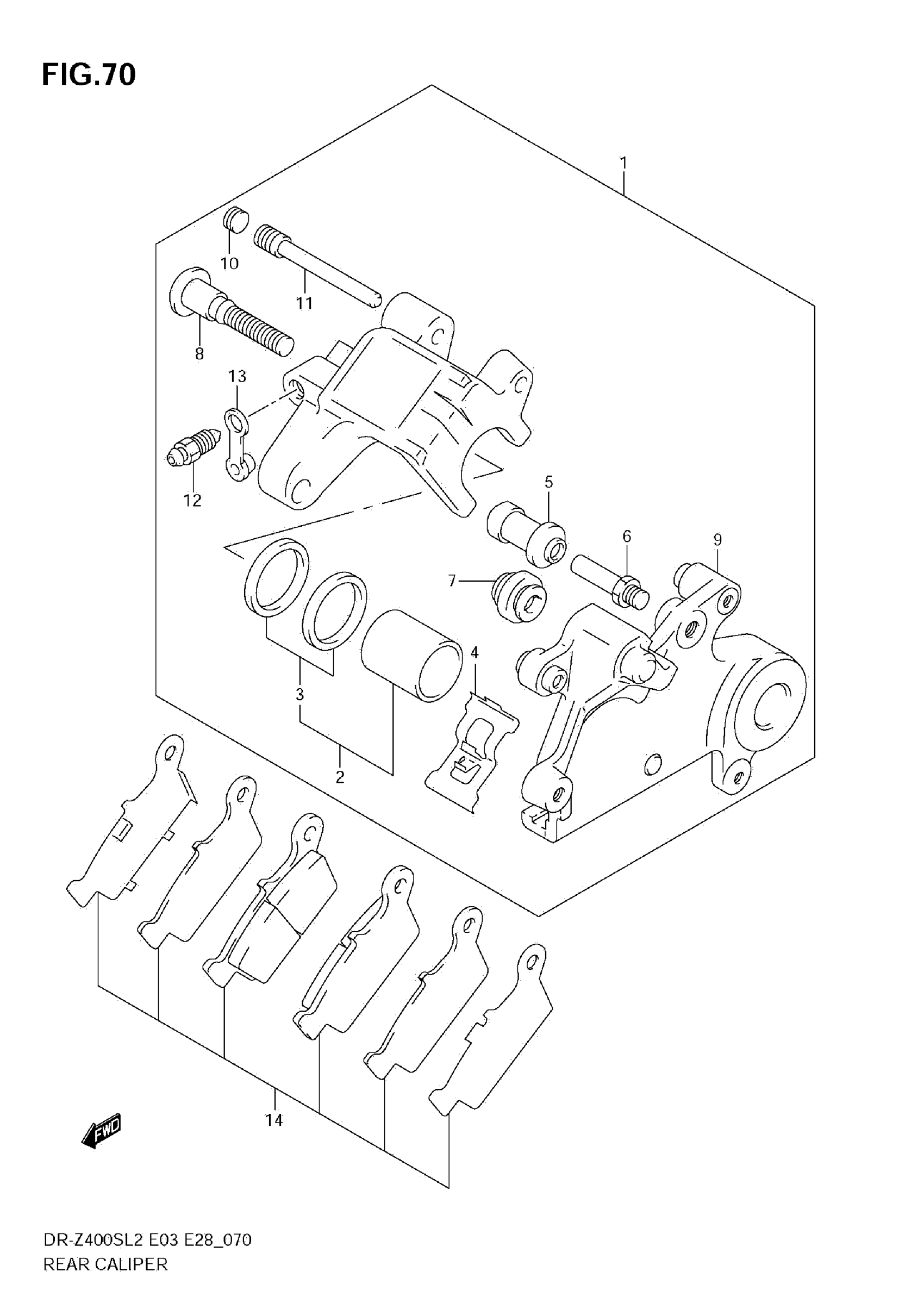

2012 Suzuki DR-Z400SL2 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-44E10-999

1
Out of stock

2

PISTON SET

69100-43810

1
Out of stock

3

SEAL SET, PISTON

69100-36810

1
Out of stock

4

SPRING, PAD

59315-36E00

1
Out of stock

5

BOOT

59386-13A00

1
Out of stock

6

BOLT

59382-27C30

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN, BOLT

59305-36E00

1
Out of stock

9

BRACKET

69351-36E00

1
Out of stock

10

PLUG, PIN

59146-21E10

1
Out of stock

11

.PIN HANGER

69345-43D00

1
Out of stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP, BLEEDER

59122-01A00

1
Out of stock

14

PAD & RETAINER SET

69100-36850

1
Out of stock
