2012 Suzuki DR-Z400SL2 Rear Brake Diagram

← All diagrams

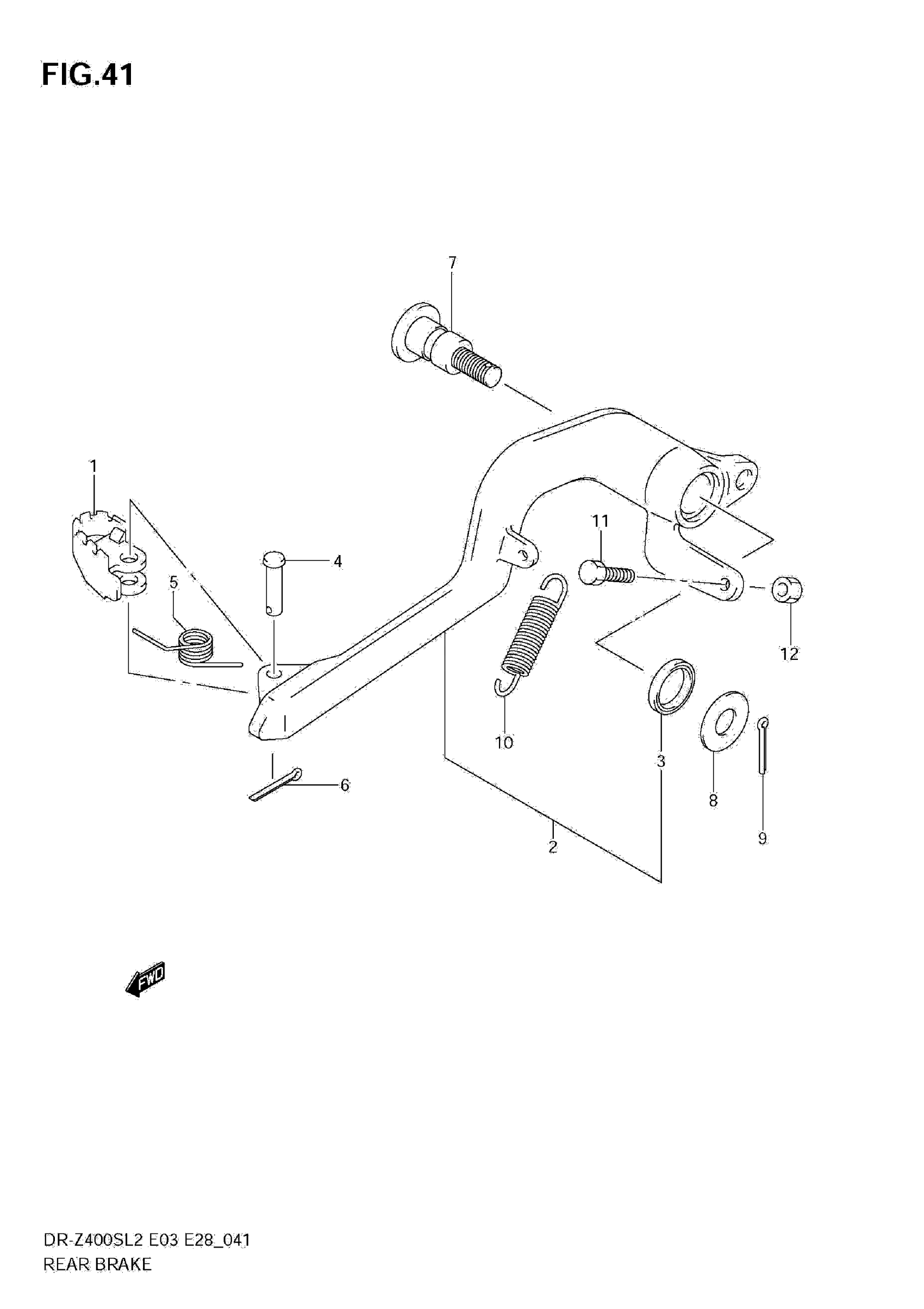

Find the part on the Rear Brake diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki DR-Z400SL2 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-43D00

1
Out of stock

2

ARM, BRAKE PEDAL

43120-29F10

1
Out of stock

3

OIL SEAL (15X21X3)

09284-15006

2
Out of stock

4

PIN

09200-06062

1
Out of stock

5

SPRING

09444-11006

1
Out of stock

6

COTTER PIN

04111-2015A

1
Out of stock

7

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

8

WASHER

08211-10261

1
Out of stock

9

COTTER PIN

04111-2020A

1
Out of stock

10

SPRING

09443-11033

1
Out of stock

11

BOLT (6X30)

09104-06004

1
Out of stock

12

NUT

08310-0006B

1
Out of stock
