2012 Suzuki DR-Z400SL2 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

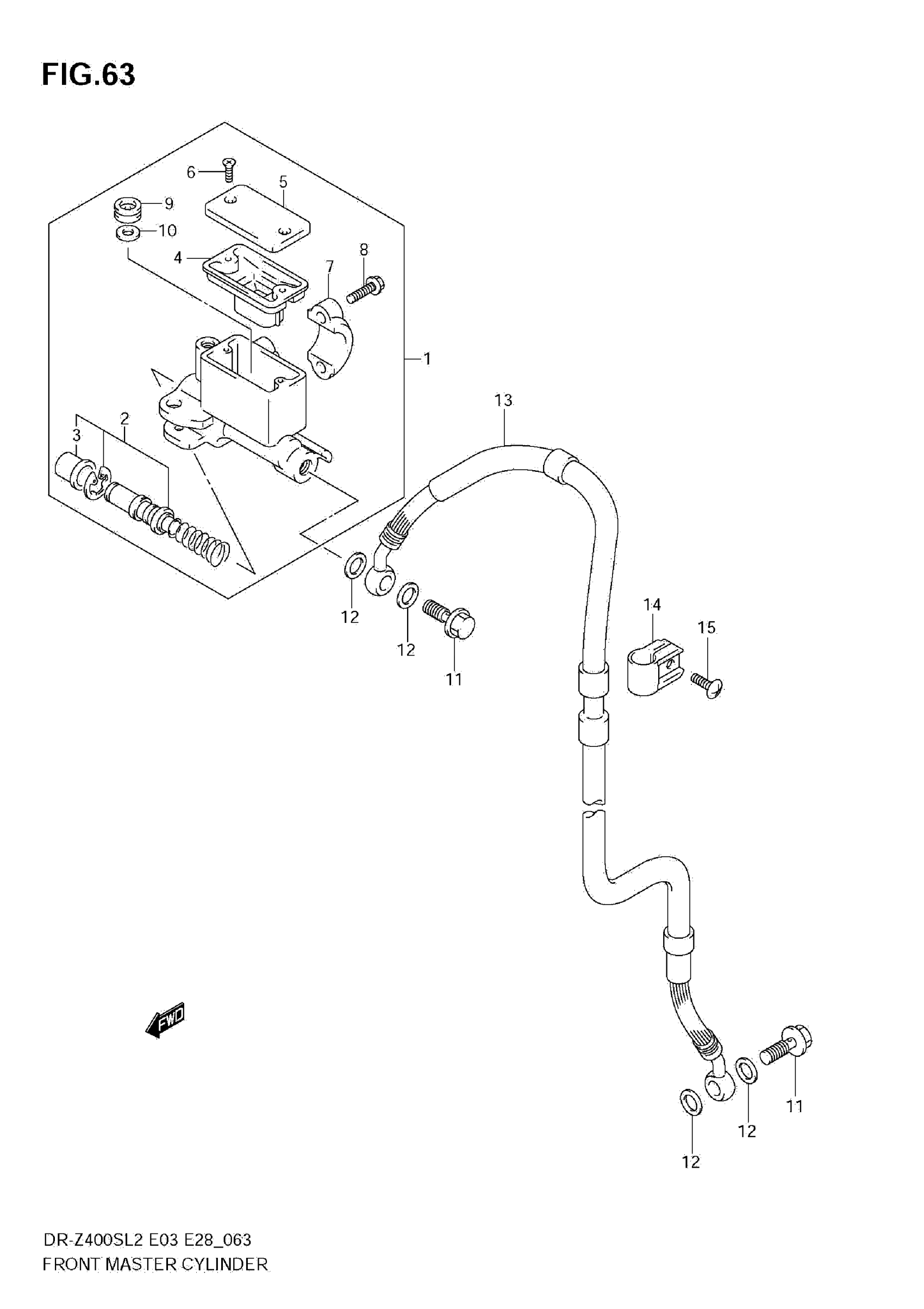

2012 Suzuki DR-Z400SL2 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-44E30

1
Out of stock

2

PISTON/CUP SET

69600-38810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-44B00

1
Out of stock

5

CAP (SILVER)

59669-03D00

1
Out of stock

6

SCREW

02122-04127

2
Out of stock

7

HOLDER (SILVER)

59671-03D00

1
Out of stock

8

BOLT

59675-27C00

2
Out of stock

9

SEPARATOR

59748-36E00

1
Out of stock

10

RING

69744-36E00

1
Out of stock

11

UNION

09360-10062

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE This part replaces 59480-29F11.

59480-29F12

1
Out of stock

14

CLAMP BRAKE HOSE

58621-07A20

1
Out of stock

15

SCREW

02142-0625B

1
Out of stock
