2012 Suzuki DR-Z400SL2 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

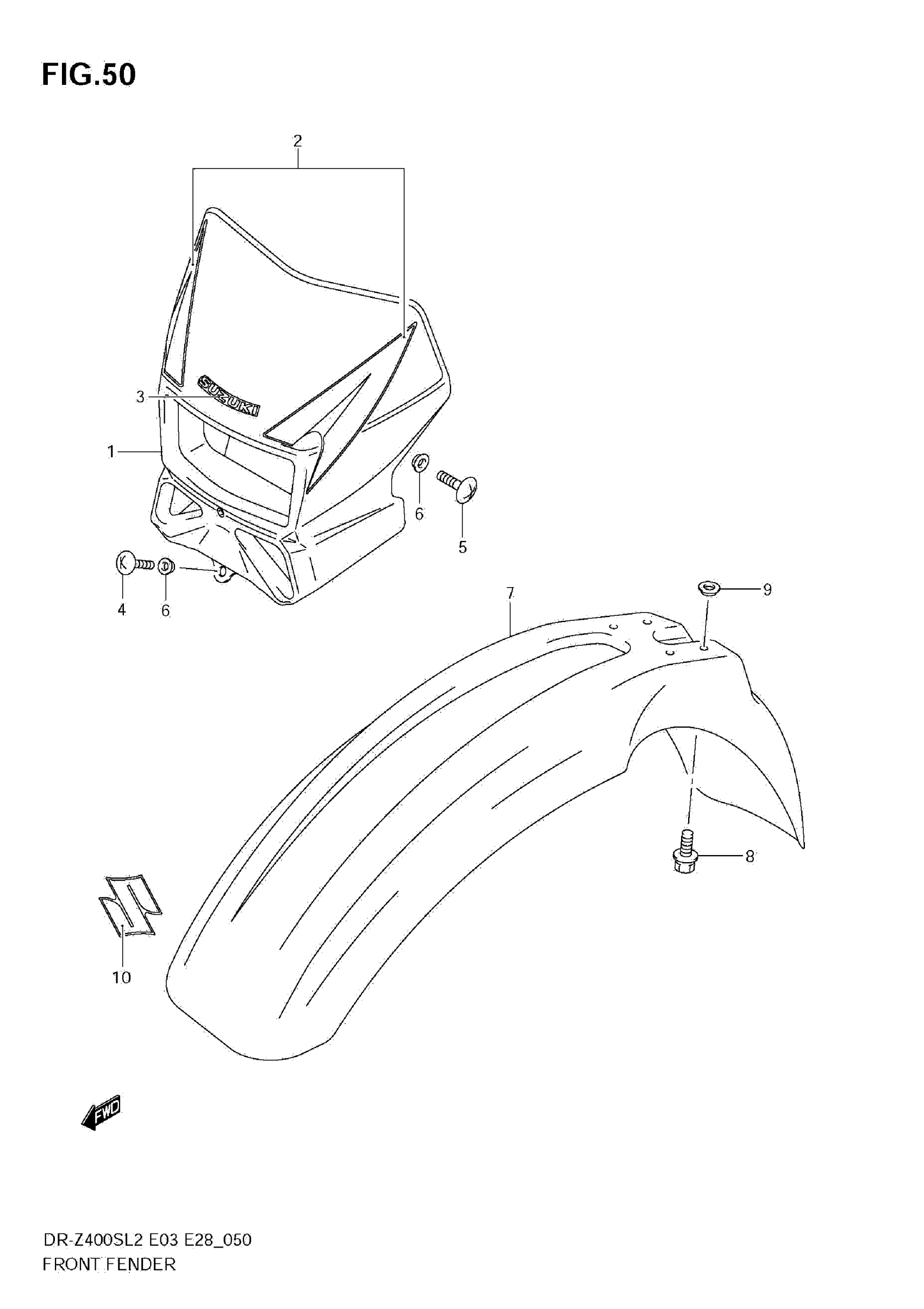

2012 Suzuki DR-Z400SL2 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLAMP (BLACK)

51811-29F50-019

1

$122.75

In stock

1

COVER HEADLAMP (WHITE)

51811-29F50-30H

1

$126.40

In stock

2

TAPE SET, HEADLAMP HOUSING (SILVER/BLACK) | FOR 019

68720-29FD0-HMC

1
Out of stock

2

TAPE SET, HEADLAMP HOUSING (BLUE/WHITE) | FOR 30H

68720-29FD0-HMD

1
Out of stock

3

EMBLEM,"SUZUKI" This part replaces 68281-01H00-YD8.

68281-01H01-YD8

1
Out of stock

4

SCREW

02142-0512B

1

$2.20

In stock

5

SCREW

02142-0612B

2
Out of stock

6

WASHER

09169-06071

3
Out of stock

7

FENDER FRONT (BLACK)

53111-27C22-019

1

$180.33

In stock

7

FENDER, FRONT (WHITE)

53111-27C22-30H

1
Out of stock

8

BOLT (6X16)

09116-06170

4

$2.68

In stock

9

WASHER

09169-06073

4
Out of stock

10

EMBLEM,S(SILVER This part replaces 68151-07G10-YD8.

68151-07G11-YD8

1
Out of stock
