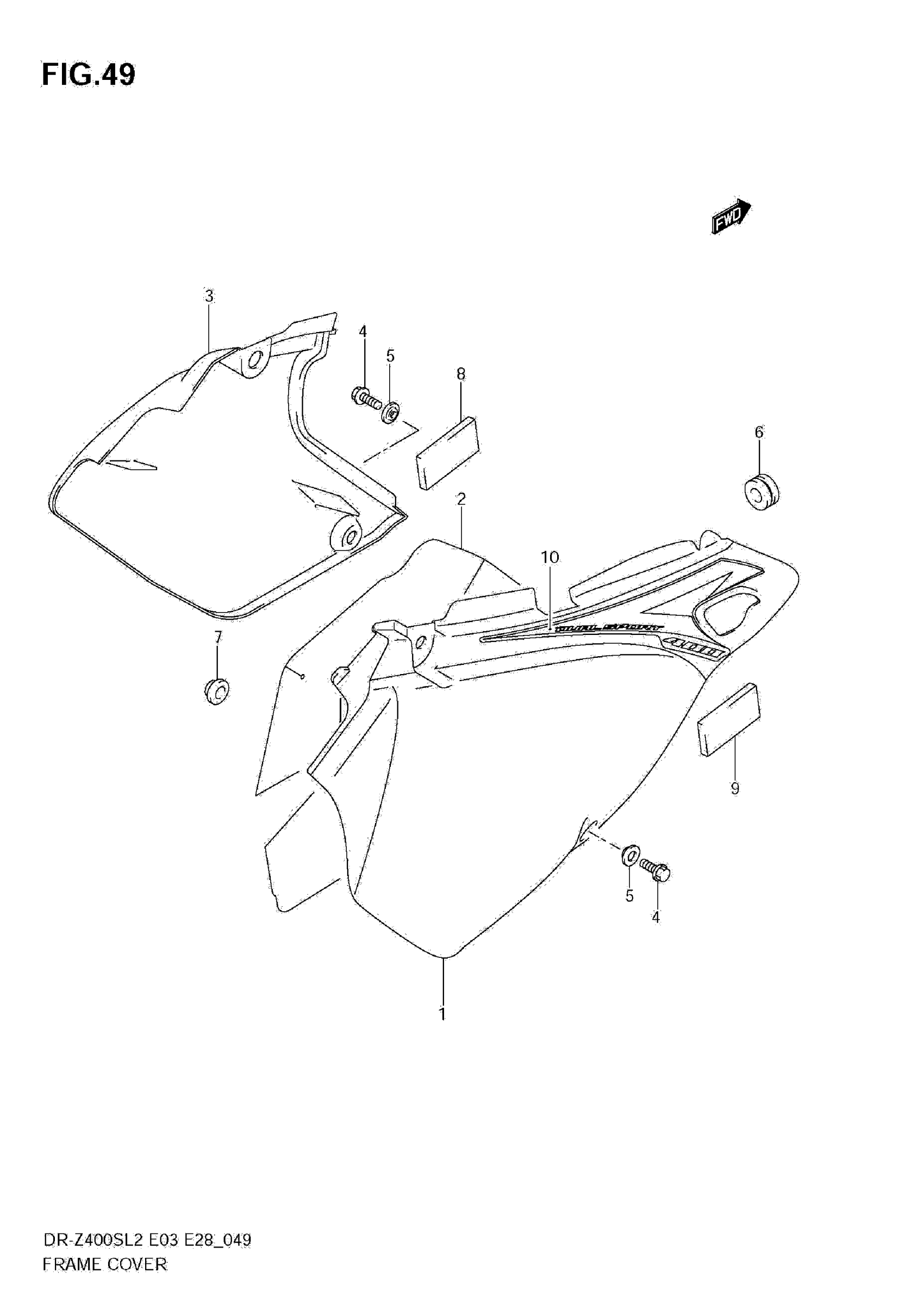

Suzuki DR-Z400SL2 (2012) FRAME COVER (E33) Diagram

#

Description

Price

1

COVER, FRAME RH (BLACK)

47111-29FC0-019

$121.18

1

COVER, FRAME RH (WHITE)

47111-29FC0-30H

$64.47

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (BLACK)

47211-29FC0-019

$93.40

3

COVER, FRAME LH (WHITE)

47211-29FC0-30H

$93.40

4

BOLT (6X12)

09103-06273

$2.24

5

WASHER This part replaces 09169-06031.

09169-06041

$1.97

6

CUSHION

09320-06504

$4.47

7

CUSHION

09321-10018

$4.19

8

CUSHION, FRAME COVER LH

47161-29F00

$8.12

9

CUSHION, FRAME COVER RH FRONT

71762-65G10

$9.35

10

TAPE, FRAME COVER RH (SILVER/BLACK) | FOR 019

68135-29FD0-HMC

$45.63

10

TAPE, FRAME COVER RH (BLUE/WHITE) | FOR 30H

68135-29FD0-HMD

$45.60
