2012 Suzuki DR-Z400SL2 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2012 Suzuki DR-Z400SL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

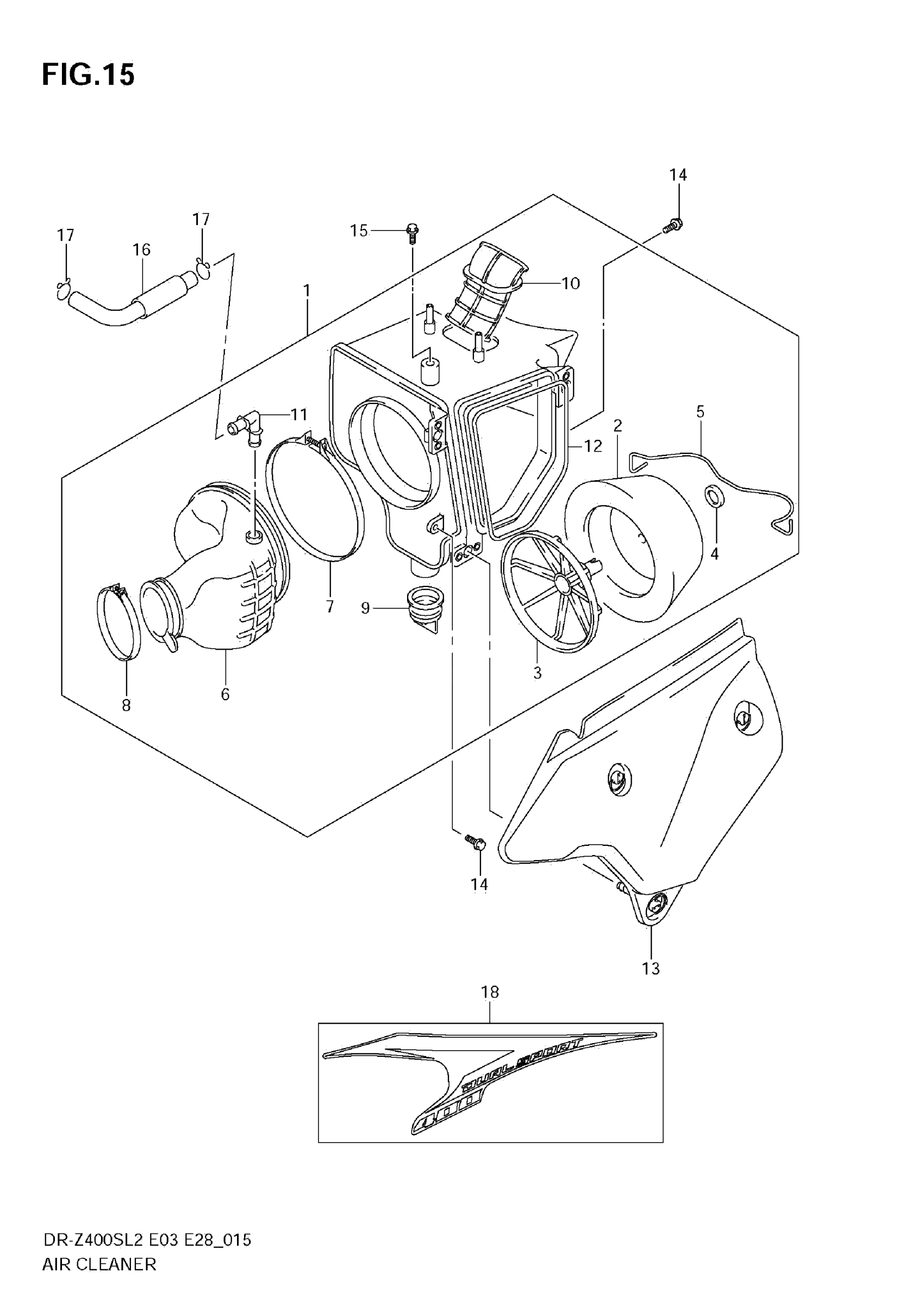

2012 Suzuki DR-Z400SL2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$500.57

In stock

2

FILTER, AIR CLEANER

13780-44E00

1

$38.04

In stock

3

HOLDER, FILTER

13791-44E00

1

$15.12

In stock

4

SPACER

13796-44E00

1

$3.60

In stock

5

SPRING

13941-29F00

1

$34.81

In stock

6

TUBE, OUTLET

13881-29FB0

1

$80.02

In stock

7

CLAMP, OUTLET TUBE

13826-29F00

1

$8.18

In stock

8

CLAMP

09402-64203

1
Out of stock

9

VALVE

13872-29F00

1

$10.20

In stock

10

TUBE, INLET

13891-29FA0

1

$44.60

In stock

11

JOINT, BREATHER HOSE

13858-14D20

1

$7.41

In stock

12

GASKET, AIR CLEANER

13746-29F00

1

$5.72

In stock

13

1

$220.82

In stock

13

1

$223.48

In stock

14

BOLT

01547-0616B

2
Out of stock

15

BOLT (6X14.6)

09111-06054

1
Out of stock

16

1

$16.03

In stock

17

CLIP

09401-14101

2
Out of stock

18

TAPE, AIR CLEANER CAP (SILVER/BLACK) | FOR 019

68145-29FD0-HMC

1
Out of stock

18

TAPE, AIR CLEANER CAP (BLUE/WHITE) | FOR 30H

68145-29FD0-HMD

1
Out of stock
